#2 Die Set for Grommet ProPress
Price:$69.00

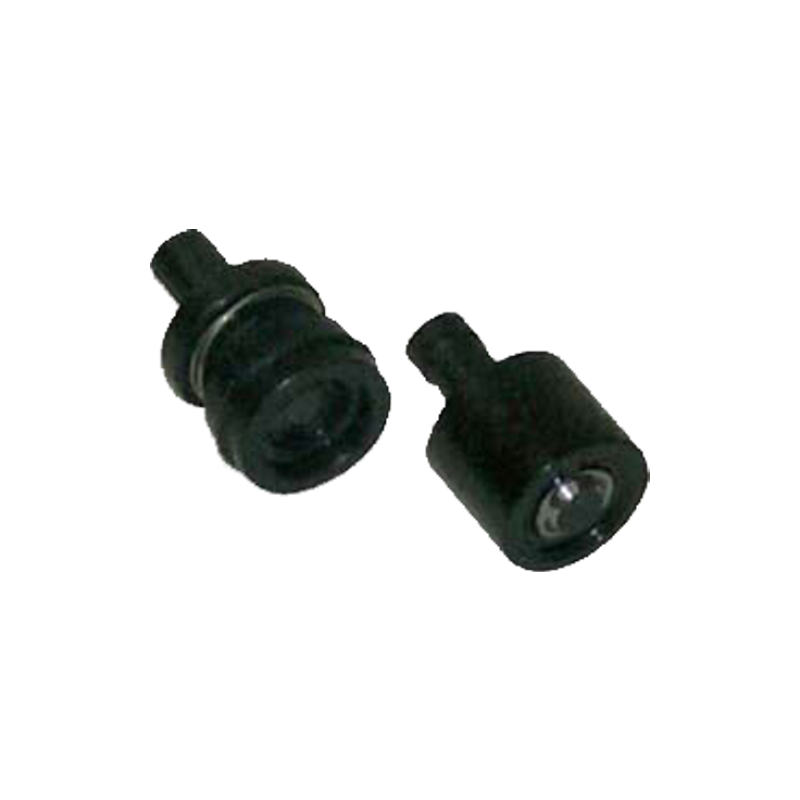

#2 Die Set for Grommet ProPress 99124-D2
The #2 Die Set for Grommet ProPress 99124-D2 installs 3/8 inch rolled rim spur grommets with accuracy, strength, and repeatable results. Built for professional production environments, this two-piece die set delivers smooth, secure grommet installations across banner, textile, and industrial applications.
Manufactured from heat-treated alloy steel, this die set handles brass, nickel-plated brass, and stainless steel grommets without deforming or wearing prematurely.
Why Choose #2 Die Set
This die set provides strength and alignment that standard soft-metal dies cannot match.
- Heat-treated alloy steel: Handles stainless steel spur grommets without damage
- Two-piece precision design: Includes one upper and one lower die
- Perfect alignment: Upper die maintains even pressure on the eyelet
- Secure washer support: Lower die holds washer and rolls barrel cleanly
- Clearly labeled: “U” for upper and “L” for lower for easy installation
For consistent compression and professional results, this die set ensures accurate barrel roll and strong mechanical hold.
Compatibility

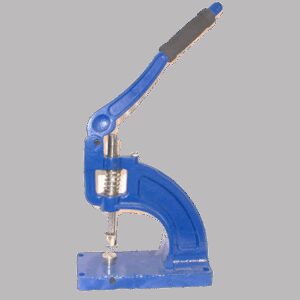

- Compatible with ProPress 99124
- Designed for 3/8 inch (#2) rolled rim spur grommets
- Works with brass, nickel-plated brass, and stainless steel grommets
- Designed for Stimpson and DOT® grommet brands
- Compatible with Sailrite® HandyPress® and Stimpson 405 Press
Verify press dimensions before use with other hand presses.
Specifications
- Model: 99124-D2
- Grommet Size: #2 (3/8 inch)
- Material: Heat-treated alloy steel
- Weight: 0.35 lbs
- Dimensions: 2 x 2 x 1 inches
- Hole Requirement: 7/16 inch hole (#3 cutter required)
Note: This die set does not cut holes. Purchase hole punches separately.
How to Use
- Cut a 7/16 inch hole in material assembly
- Install upper die into vertical shaft and secure
- Install lower adapter into tool base and secure
- Adjust compression per press guidelines
- Place washer on lower die with teeth facing up
- Position material over washer
- Place eyelet barrel down over lower die
- Pull handle to complete installation
The lower die rolls the barrel while the upper die applies even compression for a clean, secure set.
Applications
- Banners and signage
- Canvas and tarps
- Marine fabric projects
- Outdoor textile fabrication
- Industrial and commercial applications
FAQ
Does this die cut the hole for the grommet?
No. You must cut the hole before installation.
Can it install stainless steel grommets?
Yes. The heat-treated alloy steel construction supports stainless steel spur grommets without deformation.
Is it compatible with other presses?
It fits ProPress 99124 and select compatible presses. Confirm dimensions before use with other machines.
Achieve Professional Grommet Installation
Order the Banner Ups #2 Die Set and ensure consistent, secure 3/8 inch spur grommet installs in every project.
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 2 × 2 × 1 in |
