Digital Combo 6×8 Air Automatic
Price:$2,575.00
Description

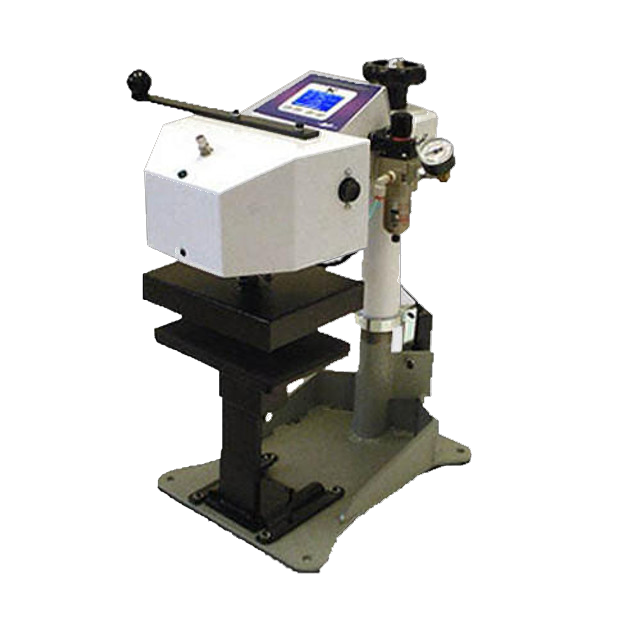

Digital Combo 6×8 Air Automatic DC8AP
Digital Combo 6×8 Air Automatic DC8AP is engineered for precision heat pressing in small-format production environments. Designed as the automatic counterpart to the manual DC8, this press uses air-powered operation to apply consistent pressure with minimal effort. Its compact 6 x 8 platen size makes it ideal for labels, embroidered patches, appliques, and detailed garment areas where a larger press would be inefficient.
Built on the same platform as the larger DC16AP, the DC8AP delivers industrial reliability in a space-saving footprint. Optional interchangeable platens and tables expand application flexibility, while swing-away motion provides clear access to the pressing surface for accurate placement.
Why Choose the Digital Combo 6×8 Air Automatic DC8AP
The DC8AP is designed for shops that need repeatable results and reduced operator strain when handling small-format heat applications. Pneumatic pressing ensures consistent pressure every cycle, making it especially effective for tagless labels and embroidered patches. Push-button activation and automatic operation allow operators to maintain steady production without manual clamping effort.
Built for Small-Format Precision
With a swing-away design and compact platen size, the DC8AP isolates pressing to only the area needed. Optional bottom heat configurations support thicker patches and appliques, while interchangeable platens allow the press to adapt to evolving production needs. Identical to the DC16AP automatic larger sized combo press, this press is ideally suited for label printing, applying “tagless” labels to garments, embroidered patches, and any small pressing area where a large heat platen is not appropriate.
Shown below are optional configurations of the DC8AP. This press functions well with bottom heat for pressing thicker embroidered patches/appliques and other products needing heat from the back side of the material. Also shown is the press in a cap configuration – the DC7AP. There are many other possibilities with the Digital Combo manual or air operated press machines.
For a manual version of the DC8AP, see the DC8
Ideal Applications
- Label printing and tagless garment labels
- Embroidered patches and appliques
- Small-format HTV transfers
- Detailed garment placement areas
- Specialty products requiring precise heat control
Key Features
- 6 x 8 inch air-operated swing-away heat press
- Automatic pneumatic pressing with push-button activation
- Fully digital temperature control from 32°F to 600°F
- Automatic digital timer with dual pre-press timer
- Air regulator and gauge with 20 to 100 PSI range
- Total applied force up to 800 lbs
- Interchangeable heat platens and tables
- Solid steel welded framework
- SuperCoil-Microwinding heater technology for even heat
- Accommodates materials up to 1 inch thick
- Temperature readout accuracy within ±2°F
- 70 programmable presets
- Records number of pressing cycles completed
- Teflon-coated 3/4 inch thick heat platen
Specifications
- Platen Size: 6 x 8 inches
- Electrical: 600W / 5A / 120V
- Air Requirement: 20 to 100 PSI, compressor required
- Unit Weight: 110 to 115 lbs
- Shipping Dimensions (W x D x H): 24 x 24 x 24 inches
- Counter Footprint: 15 x 11 inches
220V option available for international installations.
Warranty
- Lifetime warranty on heat platen
- Free lifetime technical support
Automatic Precision for Label and Patch Production
If your shop needs consistent pressure and hands-free operation for small-format heat applications, the Digital Combo 6×8 Air Automatic DC8AP delivers dependable results in a compact footprint. Contact Big Systems to confirm configuration options and ensure the right setup for your production needs.
Additional information
| Weight | 115 lbs |
|---|---|
| Dimensions | 24 × 24 × 24 in |
