Digital Knight 16×20 TWIN Air-Op Swing-Away Press
Price:$4,950.00
Description

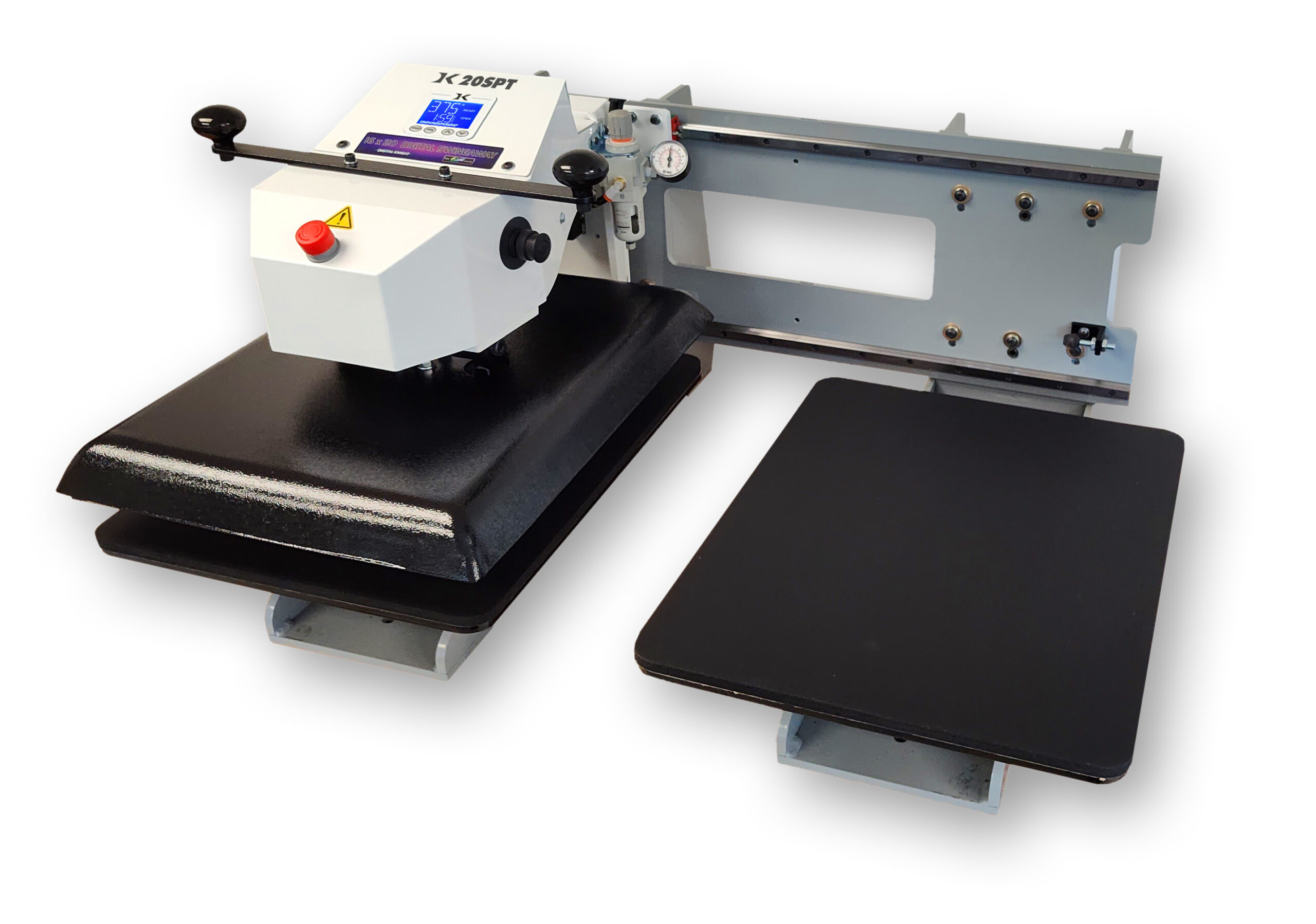

Digital Knight 16×20 TWIN Air-Op Swing-Away Press DK20SPT
Digital Knight 16×20 TWIN Air-Op Swing-Away Press DK20SPT is engineered for production environments that demand speed, consistency, and reduced operator fatigue. This dual-station press keeps both the operator and heat platen active during long press runs. Air-operated push-button control delivers uniform pressure cycle after cycle. The DK20SPT is ideal for shops that have outgrown manual presses and need reliable midrange automation.
Why Choose the Digital Knight 16×20 TWIN Air-Op Swing-Away Press DK20SPT
The DK20SPT combines the proven performance of the DK20SP with a twin-shuttle, dual-station design that significantly increases throughput. While one table is actively pressing, the second table can be loaded or unloaded, minimizing downtime. Air-powered operation ensures consistent pressure across demanding applications, making this press a dependable solution for production-focused shops.
Designed for Continuous Production
The swing-away design provides full access to the lower platen for safe and accurate loading. The twin All-Thread tables allow operators to keep production moving without waiting for the press to cycle. This layout is especially effective for long runs where consistency and speed are critical.
Ideal Applications
- DTF heat transfers
- HTV applications
- Sublimation transfers
- DTG finishing
- Large garment graphics and panels
Key Features
- Twin All-Thread table loading design
- 16 x 20 inch heat platen
- Air-operated push-button operation
- Swing-away upper platen for safe loading
- Fully digital temperature control from 32°F to 600°F
- Automatic digital timer with dual pre-press timer
- 70 programmable presets
- SuperCoil-Microwinding heater technology for even heat
- Solid steel welded industrial framework
- Accommodates materials up to 2 inches thick
- Temperature readout accuracy within ±2°F
- User-selectable end-of-cycle alarms
- Records number of pressing cycles completed
- Teflon-coated 3/4 inch thick heat platen
Air and Power Requirements
- Requires external air compressor
- Air regulator and gauge: 20 to 100 PSI range
- Maximum applied force: up to 3,000 lbs
Specifications
- Model: DK20SPT
- Platen Size: 16 x 20 inches
- Electrical: 1800W / 15A / 120V
- Air Requirement: Minimum 7-gallon tank, 1 CFM, 100 PSI, 1/4 inch line
- Shipping Dimensions (D x W x H): 32 x 40 x 24 inches
- Unit Weight: 270 lbs
220V option available for international installations.
Warranty
- Lifetime warranty on heat platen
- 5-year warranty on frame
- 3-year warranty on controller
- 1-year warranty on parts
- Free lifetime technical support
High-Volume Production Starts with the Right Press
If your operation requires consistent results and faster throughput than manual presses can deliver, the Digital Knight 16×20 TWIN Air-Op Swing-Away Press DK20SPT is built to meet that demand. Contact Big Systems to confirm air and electrical requirements and ensure this press fits your production goals.
Additional information
| Weight | 270 lbs |
|---|---|
| Dimensions | 32 × 40 × 24 in |
