Digital Knight 20×25 Jumbo Swinger
Price:$3,950.00
Description

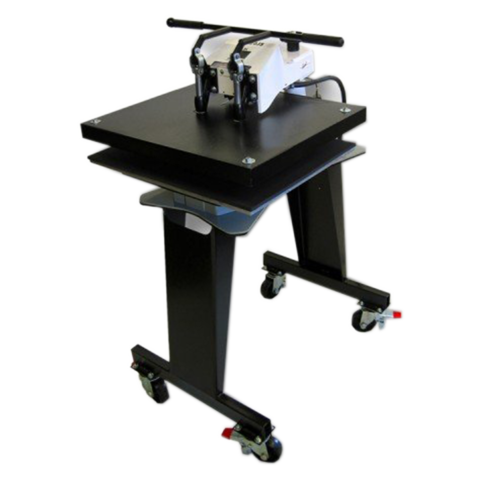

Digital Knight 20×25 Jumbo Swinger DK25S
Digital Knight 20×25 Jumbo Swinger DK25S is engineered for shops that demand maximum platen size, consistent pressure, and long-term reliability. This oversized swing-away heat press is designed to handle large graphics, thick substrates, and high-production workloads with confidence. Its industrial steel construction and advanced heating system make it a staple in professional transfer environments. The included stand with locking casters ensures stability, safety, and ease of positioning.
Why Choose the Digital Knight 20×25 Jumbo Swinger DK25S
The DK25S is widely regarded as the top-end workhorse among swing-away heat presses. Its 20 x 25 inch platen accommodates oversized transfers that smaller presses cannot manage, while the swing-away design provides unobstructed access for safe, accurate loading. Precision digital controls and rugged construction make it a dependable solution for demanding production floors.
Built for Large-Format and Heavy-Duty Applications
The swing-away motion ensures even pressure across the entire platen surface and keeps the heat element safely away from the operator during loading. This design is ideal for oversized garments, sublimation panels, rigid substrates, and specialty materials that require consistent heat and pressure.
Ideal Applications
- Oversized garment graphics
- Large-format sublimation transfers
- Vinyl and DTF heat transfers
- Rigid and thick substrates
- High-pressure specialty materials
Key Features
- Oversized 20 x 25 inch swing-away heat platen
- Fully digital temperature control from 32°F to 600°F
- Automatic digital timer with dual pre-press timer
- 70 programmable presets for repeatable results
- SuperCoil-Microwinding heater technology for even heat
- Solid steel welded industrial framework
- Interchangeable tables for application flexibility
- Accommodates materials up to 2 inches thick
- Temperature readout accuracy within ±2°F
- User-selectable end-of-cycle alarms
- Records number of pressing cycles completed
Industrial Stand and Power Configuration
The DK25S includes a heavy-duty stand with locking casters for stability during operation and mobility when repositioning. A dedicated 220V circuit breaker panel is mounted directly to the stand, ensuring safe electrical operation for this high-powered press.
Specifications
- Model: DK25S
- Platen Size: 20 x 25 inches
- Electrical: 4500W / 21A / 220V only
- Maximum Material Thickness: 2 inches
- Overall Dimensions (L x W x H): 36 x 36 x 48 inches
- Floor Footprint: 32 inches D x 24 inches W
- Unit Weight: 440 lbs
Available Variants
-
DK25SP – Air-operated automatic version with push-button activation for fatigue-free, high-pressure operation.
Warranty
- Lifetime warranty on heat platen
- 5-year warranty on frame
- 3-year warranty on controller
- 1-year warranty on parts
- Free lifetime technical support
When Your Jobs Are Bigger, Your Press Should Be Too
If your production requires oversized transfers, high pressure, and industrial durability, the Digital Knight 20×25 Jumbo Swinger DK25S delivers proven performance at scale. Contact Big Systems to confirm electrical requirements and ensure the DK25S is the right fit for your operation.
Additional information
| Weight | 440.0 lbs |
|---|---|
| Dimensions | 36.0 × 36.0 × 48.0 in |
