Digital Knight Double Mug Press

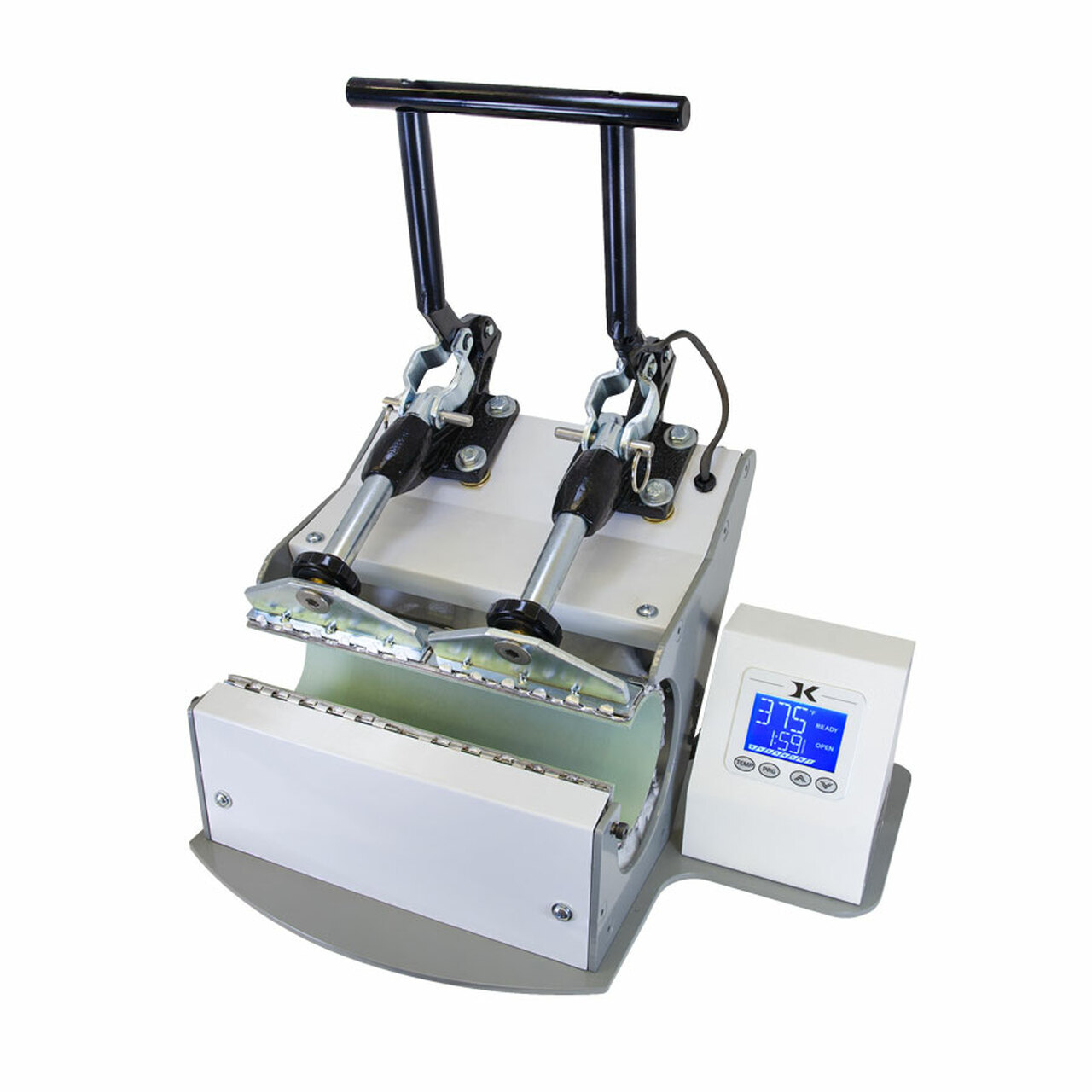

Digital Knight Double Mug Press DK3D

Built for shops that need higher output without sacrificing print quality, the Digital Knight Double Mug Press DK3D expands on the proven DK3 design with a longer heating area. Its double-wide format allows operators to print more drinkware in less time while maintaining consistent heat and pressure. The heavy-duty construction supports continuous production in demanding environments. This press is ideal for businesses looking to scale mug production efficiently and reliably.

Why Choose the Digital Knight Double Mug Press DK3D

The Digital Knight DK3D delivers everything professionals expect from the DK3, with the added advantage of a 10-inch long heater. This extended heater allows operators to press two standard mugs simultaneously or handle oversized drinkware such as tall tumblers and water bottles. Precision digital controls, adjustable pressure, and robust construction make it a trusted solution for high-output mug production.

---

Full Wrap, Double-Wide Mug Printing

The DK3D provides true full wrap, handle-to-handle, top-to-bottom printing, pressing images up to 10 inches high and as close as 1/2 inch from the handle, depending on the mug. Its double-wide design increases efficiency without compromising print coverage or color consistency.

---

Compatible Drinkware

• Standard ceramic mugs (11 oz, 15 oz, 16 oz)
• Steins
• Stainless steel travel mugs
• Extra-tall water bottles and thermoses
• Cylindrical tumblers

Not compatible with tapered latte mugs.

Compatible with sublimation inks and Cricut Infusible Ink products.

---

Key Features

• Double-wide press prints two mugs at once
• 10-inch long heater for oversized drinkware
• Full wrap, handle-to-handle coverage
• Fully digital temperature and time control
• Automatic digital timer with end-of-cycle alarms
• Programmable presets for repeatable results
• Adjustable die-cast clamp assembly for high pressure
• Soft heater liner compensates for uneven mugs
• Solid steel welded framework for continuous use
• Records number of pressing cycles completed

---

Advanced Heating Technology

The DK3D features SuperCoil-Microwinding heater technology, which embeds tightly wound heating elements throughout the platen. This ensures extremely even heat distribution, fast warm-up times, and rapid recovery between presses. Unlike silicone blanket heaters, the patented stainless steel mug band heater provides superior durability and long-term reliability.

---

Built for High-Volume Production

The press opens extra wide for fast loading and unloading, reducing operator fatigue and cycle time. Adjustable pressure allows for full-bleed transfers even on mugs that are not perfectly straight, ensuring consistent, professional results across large production runs.

---

Specifications

• Model: DK3D
• Maximum Image Height: 10 inches
• Electrical: 900W / 8A / 120V
• Overall Dimensions (W x D x H): 16 x 13 x 15 inches
• Shipping Weight: 40 lbs

---

Warranty

• 3-year / 3,000 mug warranty on heat platen
• 3-year warranty on digital controller
• 5-year warranty on frame
• 1-year warranty on parts
• Free lifetime technical support

Please note: Equipment from this manufacturer may require 5 to 7 business days prior to shipping.

Double Your Mug Output Without Doubling Labor

If your business needs faster turnaround and higher mug production capacity, the Digital Knight Double Mug Press DK3D delivers proven performance at scale. Contact Big Systems to confirm compatibility and get guidance from a heat press specialist.
