Digital Knight Mug Press
Price:$750.00

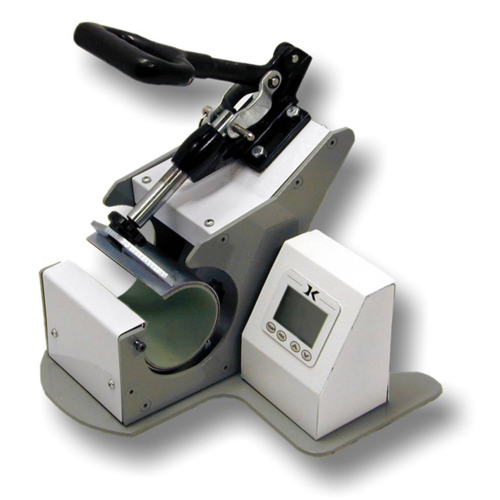

Digital Knight Mug Press DK3
The Digital Knight Mug Press DK3 is a professional-grade, full wrap mug press designed for consistent, high-quality sublimation and heat transfer printing. Built for durability and precision, it delivers handle-to-handle, top-to-bottom coverage on a wide range of mugs and drinkware.
The DK3 is fully adjustable, accommodating all mugs available on the market. This includes 11 oz, 15 oz, 16 oz mugs, steins, and stainless steel travel mugs. The ability of the press to open extra wide allows for easy and fast loading and unloading of mugs from the press. The thick, solid steel framework and die-cast clamp assembly provide a heavy-duty framework for non-stop use. The clamp assembly can be adjusted for very heavy pressure, allowing for full bleed transfers on even the most demanding mugs. Finally – a mug press that compensates for less than perfectly straight mugs!
Why Choose the Digital Knight Mug Press DK3
The Digital Knight Mug Press DK3 is engineered for shops that demand reliability, consistency, and professional results when producing custom drinkware. Designed exclusively for mugs, this press delivers true full wrap printing, reaching close to the handle and covering the mug from top to bottom. Its heavy-duty steel construction, adjustable clamp pressure, and advanced heating technology make it ideal for both short runs and high-volume production.
Full Wrap, Professional Mug Printing
The DK3 prints images up to 5 inches high and as close as 1/2 inch from the handle, depending on mug size. The wrap-around heater design ensures even pressure and consistent heat across the entire surface, producing vibrant, edge-to-edge results on demanding substrates.
Compatible Drinkware
- Standard ceramic mugs (11 oz, 15 oz, 16 oz)
- Latte mugs
- Steins
- Stainless steel travel mugs
- Tumblers and similar cylindrical drinkware
Compatible with sublimation inks and Cricut Infusible Ink products.
Key Features
- Full wrap, handle-to-handle mug pressing
- Fully digital temperature and time control
- Automatic digital timer with end-of-cycle alarms
- Programmable presets for repeatable results
- Adjustable heavy-duty clamp assembly for high pressure
- Soft heater liner compensates for uneven or imperfect mugs
- Solid steel welded frame and die-cast clamp assembly
- Records number of pressing cycles completed
Advanced Heating Technology
At the core of the DK3 is SuperCoil-Microwinding heater technology, which uses tightly wound, embedded heating elements throughout the platen. This design provides extremely even heat, fast warm-up, and rapid recovery between presses. The press reaches operating temperature in just a few minutes and maintains consistent heat during continuous use.
Unlike traditional silicone blanket heaters, the DK3 features a patented stainless steel mug band heater that delivers superior durability and long-term reliability.
Built for Production Use
The DK3 opens extra wide for fast loading and unloading, reducing handling time and operator fatigue. Its adjustable clamp pressure allows full-bleed transfers even on mugs that are not perfectly straight, ensuring consistent output across a wide range of drinkware styles.
Specifications
- Model: DK3
- Maximum Image Height: 5 inches
- Electrical: 450W / 4A / 120V
- Overall Dimensions (L x W x H): 15 x 15 x 13 inches
- Unit Weight: 30 lbs
Warranty
- 3-year / 3,000 mug warranty on heat platen
- 3-year warranty on digital control panel
- 1-year warranty on entire press
- Free lifetime technical support
Please note: Equipment from this manufacturer may require 5 to 7 business days prior to shipping.
Produce Professional-Grade Custom Mugs with Confidence
If you are serious about mug production and demand consistent, full wrap results, the Digital Knight Mug Press DK3 is built to deliver. Contact Big Systems to confirm compatibility and get guidance from a heat press specialist.
Additional information
| Weight | 30.0 lbs |
|---|---|
| Dimensions | 15 × 15 × 13 in |
