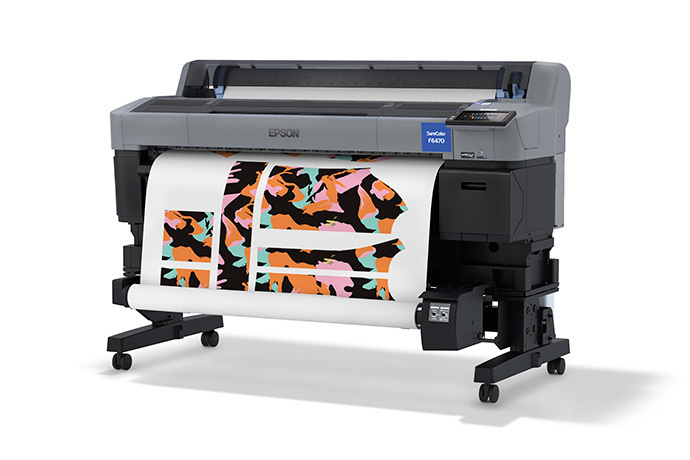

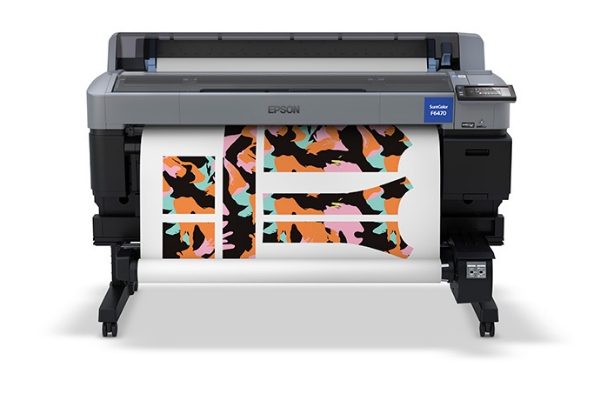

Epson SureColor F6470 44″ Dye-Sub Printer

The Epson SureColor F6470 44″ Dye-Sublimation Printer delivers blazing print speeds up to 820 sq ft/hr with UltraChrome DS inks and PrecisionCore MicroTFP printhead technology. Engineered for vivid color, dependable performance, and easy front operation, it’s the new benchmark for high-volume sublimation production.

Why Choose the Epson SureColor F6470

The Epson SureColor F6470 represents the next generation of professional dye-sublimation printing—engineered for speed, color accuracy, and ease of use. Designed for true production environments, the 44-inch F6470 utilizes Epson’s advanced PrecisionCore® MicroTFP® printhead with Nozzle Verification Technology (NVT) to ensure consistent, precise output.

Powered by Epson’s UltraChrome® DS 1.6-liter ink pack system, this high-performance 4-color printer produces bold, vibrant color and exceptional black density at speeds up to 820 square feet per hour. The integrated roll-to-roll take-up system supports unattended operation, while the built-in cutter simplifies roll-to-sheet conversion for shorter runs and samples.

The SureColor F6470 also includes Epson Edge® Print Pro software with an Adobe® PDF Print Engine for superior workflow control, and Epson Cloud Solution PORT for real-time production monitoring. Whether producing soft signage, sports apparel, or promotional graphics, this printer is built to keep pace with your growing business.

Important Note: The F6470 does not ship with ink cartridges or starter inks. A full set of UltraChrome DS 1.6L ink packs must be purchased separately for the printer to be operational.

---

Applications

• Sportswear and performance apparel production
• Promotional products and personalized items
• Home décor fabrics and custom textiles
• Soft signage and display graphics
• Hard surface dye-sub transfers (metal, ceramics, wood, etc.)

---

Key Features

PrecisionCore MicroTFP Printhead with Nozzle Verification

• Delivers consistent, high-quality output at industrial speeds
• 1.33-inch printhead with advanced droplet control for smooth gradients
• Automatic nozzle verification ensures ongoing reliability and reduced downtime

UltraChrome DS Ink Technology

• 4-color system (C, M, Y, HDK) with 1.6 L click-and-print ink packs
• Delivers vivid color saturation, rich contrast, and fast drying
• New sealed ink delivery eliminates messy refilling and reduces waste
• Exclusive to Epson F-Series printers for long-term reliability

High-Volume Performance

• Prints up to 820 sq ft/hr for high-efficiency production
• Front-loading media design for ergonomic operation
• Built-in take-up reel for unattended roll-to-roll printing
• Integrated cutter for easy roll-to-sheet conversion

Seamless Workflow Integration

• Includes Epson Edge Print Pro software with Adobe PDF Print Engine
• Streamlined layout, nesting, and color management tools
• Compatible with Epson Cloud Solution PORT for remote monitoring and reporting
• Optimized for Epson DS Transfer Papers: Universal, Rigid Photo Optimized, Adhesive Textile, and Multipurpose

Ease of Operation

• 4.3-inch color LCD touchscreen for intuitive navigation
• Simplified maintenance station and easy front access for serviceability
• Compact 44″ design fits easily into production environments
• Ships with take-up reel and dual 120V power cables

---

Specifications

• Print Width: Up to 44 inches
• Print Speed: Up to 820 sq ft/hr
• Printhead: PrecisionCore MicroTFP with NVT
• Ink System: UltraChrome DS 1.6L ink packs (C, M, Y, HDK)
• Media Handling: Built-in cutter and take-up reel system
• Software Included: Epson Edge Print Pro, Epson Cloud Solution PORT
• Display: 4.3″ Color Touchscreen
• Dimensions (W × D × H): 64″ × 36″ × 45″
• Weight: 295 lb (140 kg)
• Power Requirements: AC 120V, 50–60Hz (x2 cables)
• Model: SureColor F6470

---

What’s in the Box

• Epson SureColor F6470 Printer
• Epson Edge Print Pro software
• Auto media take-up reel system
• (2) 120V power cables
• User documentation

Note: Ink packs are not included and must be purchased separately.

---

Eco Features

• 1.6 L ink packs reduce plastic waste compared to cartridges
• ENERGY STAR® qualified
• RoHS compliant
• Epson America, Inc. is a SmartWay® Transport Partner
• Better Products for a Better Future™

---

Top 6 Reasons to Upgrade from the SureColor F6370 to the F6470

1. No More Pouring Ink Bags
   The F6470 uses front-loaded 1.6L click-in ink packs—no mess, no spills, and no wasted ink.

2. Enhanced Ink Filtration System
   Built-in dual filtration (in-bag and in-printer) reduces particle contamination and extends printhead life.

3. Faster Production Speeds
   The new printhead is 20% larger, doubling throughput for sportswear and increasing signage production by over 65%.

4. Optional Neon or Expanded Gamut Ink Sets (F6470H)
   Upgrade to six-color configurations (Neon Pink & Yellow, or Orange & Violet) for high-visibility or extended-gamut applications.

5. Integrated Take-Up Reel
   Now standard, saving up to $800 and streamlining long print runs for continuous production.

6. Simplified Maintenance
   Easier-to-access maintenance area means less downtime and cleaner operation with just minutes of monthly upkeep.

Conclusion:
The SureColor F6470 is a major leap forward for shops upgrading from the F6370. With its faster speeds, cleaner ink system, and enhanced reliability, it delivers exceptional value for high-demand sublimation workflows.

---

Why Professionals Choose Epson

Epson continues to lead the dye-sublimation market with purpose-built hardware, ink, and workflow solutions. The SureColor F6470 reflects Epson’s full-system engineering approach—every component is optimized to deliver consistent color, reduced waste, and higher throughput. From promotional goods to performance apparel, it helps your business print brilliantly and profitably.
