Epson SureColor R5070L 64″ Resin Signage Printer w/Bulk Ink

Description

Epson SureColor R5070L 64″ Roll-to-Roll Resin Signage Printer

The Epson SureColor R5070L pushes the limits of productivity, color accuracy, and efficiency in resin printing. Designed for high-volume shops, this 64-inch roll-to-roll signage printer uses advanced UltraChrome® RS 6-color resin ink and massive 3-liter bulk ink packs for low-cost, uninterrupted production. Engineered for versatility, it delivers consistent, durable prints across vinyl, fabrics, wallpaper, and uncoated papers—ideal for signmakers, décor printers, and fleet graphic producers seeking speed and sustainability.

Why Choose the Epson SureColor R5070L

Built to perform in demanding production environments, the SureColor R5070L offers exceptional uptime and predictable costs. Epson’s dual 1.5L ink packs per color deliver a combined 3 liters per color channel, reducing ink changes and lowering ink cost to just $0.125 per milliliter.
With user-replaceable PrecisionCore® printheads, downtime is minimized, and with Epson’s fast-curing resin ink technology, prints are ready for lamination immediately—helping you move from print to finish the same day. This makes the R5070L one of the most advanced, cost-effective, and sustainable resin printers in its class.

Applications

• Wallpaper and wall décor
• Uncoated paper graphics
• Vinyl and banner signage
• Fabric and textile printing
• Vehicle wraps and fleet graphics
• Backlit and retail displays

Key Features

• High-Volume Productivity – Dual 1.5L bulk ink packs per color provide 3L total capacity for long runs and minimal intervention.
• Exceptional Image Quality – Six-color UltraChrome® RS resin inks with optimizer produce brilliant, smooth tonal transitions.
• Immediate Lamination – Prints cure instantly for same-day finishing and delivery.
• Ultra Low Ink Cost – Just $0.125/mL, the most cost-effective resin printer in its class.
• User-Replaceable Printheads – Simplify maintenance with self-service printhead replacement for maximum uptime.
• PrecisionCore® Print Technology – Consistent, high-speed output with precise droplet placement and rich detail.
• Wide Media Compatibility – Print on coated and uncoated substrates including wallpaper, vinyl, fabric, and film.
• Enterprise Workflow Integration – Manage production, variable data, and color consistency with Epson Edge Print software.
• Eco-Friendly Design – GREENGUARD Certified resin inks are low-VOC and environmentally responsible.

What’s in the Box

• Epson SureColor R5070L Printer
• Full Set of Dual 1.5L UltraChrome® RS Resin Ink Packs (3L per color)
• Waste Ink Bottle
• Automatic Take-Up Reel System
• Maintenance Kit and Filters
• Power Cables
• Epson Edge Print Software License
• Documentation and Setup Guide

Printing Technology

• Printhead: PrecisionCore® TFP® 12-channel drop-on-demand inkjet
• Ink Type: UltraChrome® RS 6-color resin ink with optimizer
• Ink Configuration: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Optimizer
• Droplet Technology: Variable Droplet Technology for precise gradation and detail
• Max Resolution: 1200 × 2400 dpi
• Nozzle Configuration: 1,600 nozzles per color channel
• Printer Language: Epson ESC/P® raster

Epson Ink Supply System

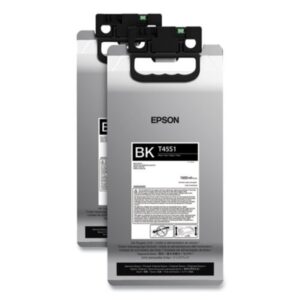

• Ink Volume: Dual 1.5L bulk ink packs per color (3L total capacity)
• Ink Cost: Approximately $0.125 per milliliter
• Shelf Life: 2 years from production date
• Compatibility: Epson ink packs only—no third-party inks supported

Media Handling

• Max Print Width: 64 inches
• Media Core: 2″ or 3″
• Max Roll Diameter: 9.8 inches
• Max Roll Weight: 100 lb
• Media Thickness: Up to 1 mm
• Take-Up Reel: Automatic “wind in” or “wind out” with adjustable tension
• Max Printable Width: 63.6 inches
• Min Media Width: 11.8 inches

Performance

• Print Speed: True production speeds for high-quality output across all media types
• Operating Noise: Approx. 66.1 dB
• Power Consumption:
  • Printing: 4.6 kW
  • Standby: 220 W
  • Sleep: 44 W
• Power Off: 1 W
• Electrical Requirements: AC 200–240V, 16A × 2, 50/60 Hz
• Operating Temperature: 59°F–86°F (15°C–30°C)
• Operating Humidity: 20–80% RH (recommended 40–60%)

Software and Connectivity

• Interfaces: USB 2.0, Ethernet (1000Base-T)
• Supported OS: Windows® 10 and 8.1
• Software Included: Epson Edge Print for job tracking, color management, and workflow automation
• Recommended PC Specs: Quad-core CPU (3GHz+), 8GB RAM, 500GB SSD

Size & Dimensions

• Width: 116″ (2,949 mm)
• Depth: 41″ (1,045 mm)
• Height: 70″ (1,774 mm)
• Weight: 990 lb (449 kg)

Eco Features

• GREENGUARD Certified resin inks for low emissions
• RoHS, WEEE, and REACH Compliant
• Recyclable packaging and components
• Epson is a SmartWay® Transport Partner

Warranty

• 1-Year Limited Warranty including self-service printhead coverage
• Extended Service Plans available for up to 3 years

Sustainability and Workflow

The SureColor R5070L is designed for sustainability and uptime. With large-capacity bulk ink packs, self-service printheads, and instant-dry resin ink technology, this printer delivers consistent, environmentally responsible output at industrial production speeds. The integrated Epson Edge Print software suite enhances workflow automation, color accuracy, and print consistency across your entire signage portfolio.
