Epson SureColor S40600 64″ Solvent Printer+Cutter (Discontinued)

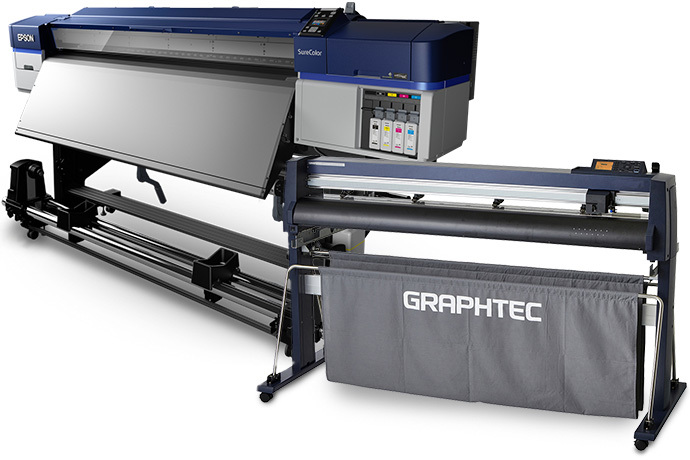

Epson SureColor S40600 Print and Cut Bundle 64″ Roll-to-Roll Solvent Printer

The Epson SureColor S40600 Print and Cut Bundle delivers high-performance printing and finishing at an exceptional value. Featuring a 64″ roll-to-roll solvent printer, Graphtec FC9000-140 cutter, and ONYX GamaPrint Pro RIP software, this bundle provides a complete, professional workflow solution for stickers, labels, decals, and vehicle wraps. Powered by Epson’s UltraChrome® GS3 4-color solvent ink, the system offers fast, reliable production and vibrant, long-lasting results—all with low total cost of ownership.

Why Choose the Epson SureColor S40600 Print and Cut Bundle

This bundle combines Epson’s production-class solvent printing with Graphtec’s advanced cutting technology to help you achieve greater productivity and profitability. The SureColor S40600’s PrecisionCore® TFP® printhead and precision media feeding system deliver class-leading image quality, while the Graphtec cutter ensures pinpoint contour cutting accuracy. Paired with ONYX workflow software, you get streamlined color management, nesting, and cut alignment—all optimized for efficient, professional output.

Applications

• Stickers, labels, and decals
• Vehicle wraps and fleet graphics
• Banners, signage, and posters
• Window and wall graphics
• Backlit prints and POP displays
• Specialty films and reflective materials

Top Features

• Complete Print-and-Cut Solution – Includes SureColor S40600 printer, Graphtec FC9000-140 cutter, and ONYX RIP software.
• High Productivity – Precision feeding, take-up, and cutting systems deliver fast, repeatable results for all-day production.
• True Value – Bundle saves money compared to purchasing components separately while adding professional workflow capability.
• UltraChrome® GS3 Ink Technology – Vibrant, durable 4-color solvent ink supports same-day lamination and superior adhesion.
• PrecisionCore® TFP® Printhead – Produces crisp lines, smooth gradations, and consistent color at production speeds.
• Streamlined Workflow – ONYX software simplifies color control, media calibration, and job management.
• Energy-Efficient Design – Engineered for low power consumption and reduced waste.

What’s in the Box

• Epson SureColor S40600 Printer
• Graphtec FC9000-140 Cutter (54″)
• ONYX® GamaPrint Pro RIP Software
• Substrate Support System
• Additional Fabric Wiper and Air Filters
• Full Set of Cleaning Cartridges (T696000)
• Waste Ink Bottle
• Documentation and Setup Guide

Size & Dimensions (Printer)

• Width: 103″ (2,616 mm)
• Depth: 34″ (609 mm)
• Height: 53″ (1,346 mm)
• Weight: 615 lb (278 kg)

Size & Dimensions (Cutter)

• Width (with stand): 73.6″ (1,870 mm)
• Depth (with stand): 28″ (711 mm)
• Height (with stand): 48″ (1,219 mm)
• Weight: 178 lb (with take-up system)

UltraChrome® GS3 Inks

• Production Capacity: High-capacity 700 mL cartridges per color
• Vibrant Color Gamut: Produce rich, consistent output using just four inks (C, M, Y, K)
• Versatile Media Support: Print on adhesive vinyl, film, canvas, banners, and more
• Same-Day Lamination: Prints ready for finishing in just six hours
• Eco-Conscious Formulation: Low-VOC, no special ventilation required
• 3M MCS Warranty: Industry-recognized durability and color performance
• Avery ICS Guarantee: Independently verified for long-term adhesion and reliability

PrecisionCore® TFP® Printheads

• Consistent Color Output: Precise droplet control ensures smooth gradation and accurate color
• Low Vibration System: Enhances precision and stability during long runs
• High-Density Design: One-inch printhead with 720 nozzles per color for exceptional speed and detail
• Epson PrecisionDot Technology: Eliminates banding and improves tonal transitions
• Industrial Reliability: Built for the demands of high-volume commercial printing

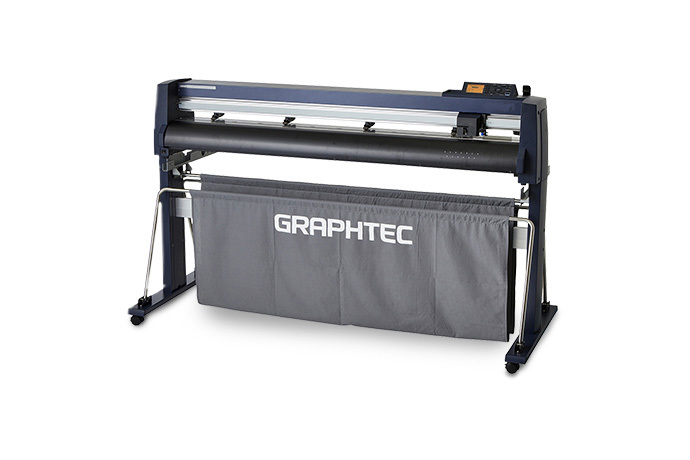

Cutter Specifications (Graphtec FC9000-140 54″)

• Maximum Cutting Area: 54″ × 164 ft (1372 mm × 50 m)
• Compatible Media Widths: 2″ – 60.2″ (50 mm – 1529 mm)
• Maximum Media Thickness: 59.1 mil (1.48 mm)
• Maximum Cut Speed: 58.5 in/s (1485 mm/s) diagonal
• Cutting Force: 20 gf – 600 gf in 48 steps
• Resolution: GP-GL™ 0.1/.05/.025/.01 mm; HP-GL® 0.001 in (0.025 mm)
• Media Types: Vinyl, reflective film, sandblast mask, paint protection film, window tint, and more
• Interface: USB 2.0, RS-232C, Ethernet

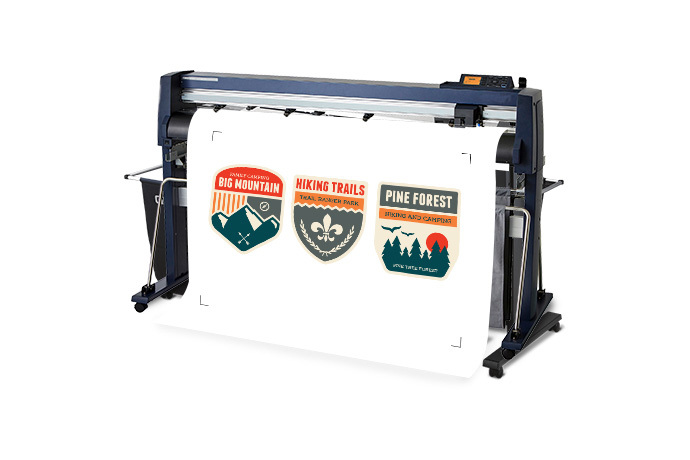

• ARMS 5.0: Advanced Registration Mark Sensing for automated contour cutting
• Display: 3″ graphic LCD with intuitive controls
• Included Accessories:
  • CB09UB Cutting Blade
  • PHP33-CB09N-HS Blade Holder
  • KF700-BK Fiber Pen and Adapter
  • Power and USB Cables, Software/Driver DVD, Training DVD
• Shipping Weight with Stand: 150 lb (68 kg)
• Dimensions with Stand: 73.6″ × 28″ × 48″ (1870 × 711 × 1219 mm)

Versatile 64″ Roll-to-Roll Printing

Print on a variety of materials, including adhesive vinyl, banner stock, film, and reflective media. Epson’s advanced roll-to-roll feeding system with Automatic Tension Control ensures smooth tracking, consistent alignment, and reliable, unattended operation.

Same-Day Lamination

Epson’s solvent technology allows prints to be laminated in just six hours—ideal for fast-turn production environments requiring rapid delivery and finishing.

Sustainability and Workflow

The S40600 Print and Cut Bundle is built for efficiency—reducing waste, ink consumption, and manual labor. With integrated ONYX workflow software, you gain end-to-end color management, job nesting, and cutting automation for consistent, profitable output.
