Foster On-A-Roll Lifter Low Profile for HP Grand Format Latex Printers
Price:$2,686.50
Foster On-A-Roll Lifter Low Profile for HP Grand Format Latex Printers 61574

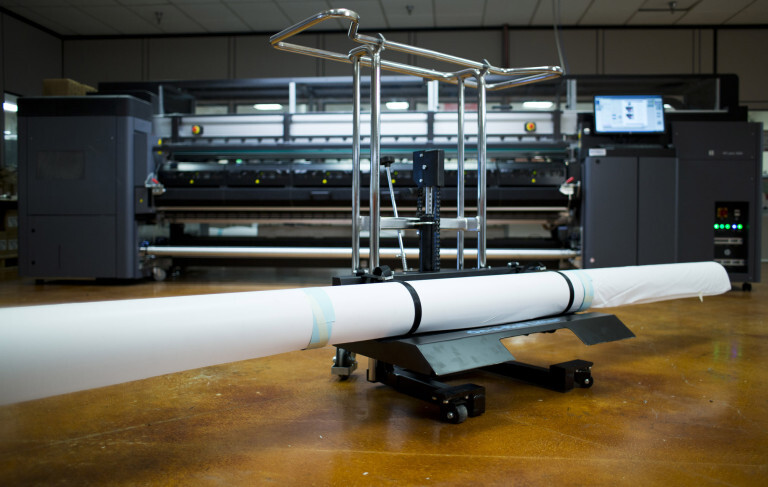

The Foster On-A-Roll Lifter Low Profile 61574 is a heavy-duty media roll handling solution designed specifically for HP Grand Format Latex printers. With a low 3.25 inch fork clearance and 660 lb lifting capacity, it allows a single operator to safely lift, transport, and load wide or heavy rolls while reducing injuries and preventing media damage.
Why Choose the Foster On-A-Roll Lifter Low Profile 61574
Handling wide and heavy media rolls does not need to involve dollies, pallet jacks, or risky manual lifting. The Foster On-A-Roll Lifter Low Profile is engineered for print environments running low-clearance grand and wide format printers, especially HP Latex systems. Its low front fork height, rugged steel construction, and controlled hydraulic lift turn demanding roll changes into a safe, efficient, single-operator task.
Designed for HP Grand Format Latex Printers
This low-profile model is a perfect complement to HP Latex 1500, 3000, 3100, and 3500 printers. With a 3.25 inch bottom fork clearance, it fits beneath low-profile printer frames that standard lifters cannot access, allowing operators to position rolls directly at the loading point with minimal handling.
Applications
- HP Grand Format Latex printing environments
- Wide format and super-wide format print shops
- Sign and graphics production
- Media storage and roll transport areas
- Facilities handling vinyl, banner, fabric, paper, and laminate rolls
Key Features
- Lifts media rolls up to 660 lbs
- Low-profile front fork clearance for tight printer access
- Manual hydraulic foot pump for smooth, controlled lifting
- Extended nylon safety straps secure rolls during transport
- Concave media tray stabilizes rolls and prevents shifting
- Ergonomic pull bar for maneuvering around corners and narrow aisles
- Heavy-duty rotating and locking casters for precise positioning
Built to Save Your Back, Time, and Floor Space
What was once a two-person job becomes manageable by one. The Foster On-A-Roll Lifter Low Profile eliminates pulling, heaving, and awkward lifting that can lead to injuries and damaged media. Its compact footprint and tight turning radius make it ideal for shops with limited floor space and crowded production areas.
Optional Accessories
-
Optional Roller Platform Model 63161 allows operators to feed rolls directly into compatible printers from the lifter, further reducing handling steps.
Specifications
- Model: 61574
- Roll Weight Capacity: 660 lbs
- Maximum Roll Width: 197 inches
- Maximum Roll Diameter: 15.75 inches
- Lift Height: 33 inches
- Overall Dimensions (W x D x H): 44 x 33.6 x 47 inches
- Bottom Fork Clearance: 3.25 inches
- Unit Weight: 188 lbs
Warranty
- 90-day warranty on batteries
- 2-year warranty on hydraulics, casters, and media tray
- 5-year warranty on cross bars and frame
Load Heavy Rolls into HP Latex Printers with Confidence
Protect your operators, your media, and your equipment with a lifter designed specifically for low-clearance HP Grand Format Latex printers. Contact Big Systems to confirm compatibility and ensure the Foster On-A-Roll Lifter Low Profile is the right fit for your operation.
Additional information
| Weight | 188 lbs |
|---|---|
| Dimensions | 33.6 × 44 × 47 in |
