Graphtec 1.5mm Reflective 45 Blade 2-pack for red top holder
Price:$160.00

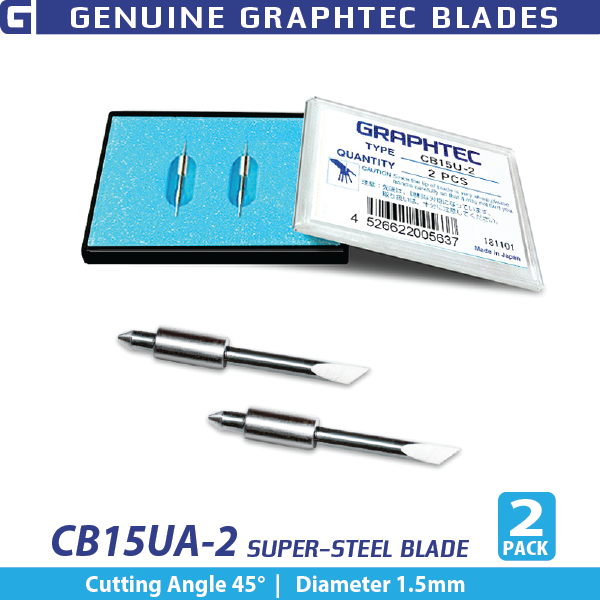

GRAPHTEC 1.5mm Super-Steel Blade 45° high-intense, reflective CB15UA-2 (2/pk) for PHP33/35-CB15N-HS Blade holder
The Graphtec CB15UA-2 1.5mm Reflective Blade 45° is engineered for applications where standard vinyl blades are not sufficient. Featuring a modified “UA” tip design and a 45-degree cutting angle, this blade is optimized for cutting high-intensity reflective sheeting and other rigid or difficult-to-cut materials.
With a 1.5mm blade diameter, the CB15UA blade delivers increased strength and stability, allowing it to penetrate thicker substrates such as reflective films, laminates, smart device screen protection media, and specialty rigid films. Sold as a 2-pack, this option is well suited for specialty sign shops, traffic and safety graphics, and production environments that require dependable results on reflective and rigid media.
Why Choose Graphtec CB15UA Reflective Blades
Graphtec CB15UA blades are specifically designed for harder-to-cut materials. The modified tip geometry improves penetration on reflective sheeting and rigid films, while Supersteel construction ensures durability and predictable performance. For applications where accuracy and material control matter, the CB15UA-2 delivers confidence and consistency.
Applications
- High-intensity reflective sheeting
- Exterior signage and safety graphics
- Laminates and laminated materials
- Smart device and screen protection films
- Rigid or specialty media
- Temporary displays
Key Features
- Modified “UA” tip for reflective and rigid materials
- 45° cutting angle for controlled penetration
- 1.5mm blade diameter for added strength
- Supersteel construction for long blade life
- Designed for materials from 0.25mm to 0.5mm thick
- Genuine Graphtec replacement blade
Compatibility
Compatible Graphtec Cutters
- Graphtec FC Series
- Graphtec FCX Series
- Graphtec CE Series
Required Blade Holders
- PHP33-CB15N-HS red-top blade holder
- PHP35-CB15N-HS red-top blade holder
Note: Not compatible with CB09 blue-tip blade holders.
Technical Specifications
- Product Name: Graphtec Super-steel Reflective Blade
- Part Number: CB15UA-2
- Blade Type: Reflective cutting blade
- Cutting Angle: 45°
- Blade Diameter: 1.5mm
- Supported Material Thickness: 0.25 to 0.5mm
- Material: Super-steel
- Quantity: 2 blades per pack
- Approximate Package Weight: 0.20 lb
- Approximate Package Dimensions: 5.1 x 3.1 x 2.0 inches
Cut Reflective and Rigid Media With Confidence
Equip your Graphtec cutter with blades designed specifically for high-intensity reflective and tough specialty materials.
CLICK HERE > To view blade & blade holder compatibility by Graphtec model
Additional information
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 3.1 × 5.1 × 2.0 in |
