Graphtec 3.0mm Super-steel Blade for thick materials (1pc/pack)
Price:$92.00

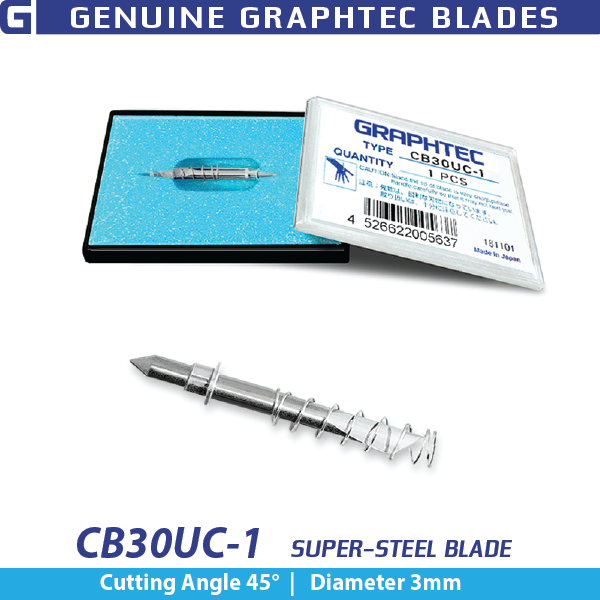

Graphtec CB30UC-1 3.0mm Super-steel Blade (1pc/pack)
The Graphtec CB30UC-1 3.0mm Super-steel Blade is purpose-built for demanding flatbed cutting applications that involve thick and rigid materials. Featuring a robust 3.0 mm blade diameter and a 45-degree cutting angle, this blade provides the strength and stability required to cut through corrugated paperboard, E-flute, chipboard, and heavy cardstock without tearing or damaging the material structure.
Manufactured from Graphtec’s high-durability Super-steel, the CB30UC-1 offers excellent wear resistance and consistent cutting performance in production and prototyping environments. It is specifically engineered for use on Graphtec flatbed cutting systems where deeper penetration and higher cutting force are required. This blade is designed for use with the dedicated 3.0 mm blade holder, ensuring proper blade exposure and stability during cutting. Standard vinyl or thin-media blade holders are not suitable for this application.
Ideal for packaging, prototyping, and industrial applications, the CB30UC-1 allows operators to process thicker substrates efficiently while maintaining precision and repeatability.
Why Choose the Graphtec CB30UC-1 Blade
The Graphtec CB30UC-1 is the correct solution for flatbed cutting environments that work with rigid or corrugated materials. Its heavy-duty construction, optimized cutting angle, and compatibility with Graphtec flatbed systems make it a reliable choice for applications where accuracy and material control are critical.
Applications
- Corrugated cardboard up to E-flute
- Chipboard up to 2 mm thick
- Thick cardstock and rigid paper
- Packaging prototypes
- Short-run rigid material production
Key Features
- Heavy-duty Super-steel blade for thick materials
- 45-degree cutting angle for deep, controlled cuts
- 3.0 mm blade diameter for added strength and stability
- Designed specifically for flatbed cutting systems
- Clean cuts on rigid and corrugated substrates
- Genuine Graphtec replacement blade
Compatibility
Compatible Graphtec Flatbed Cutters
- Graphtec FCX2000 Series
- Graphtec FC2250 Series
Required Blade Holders
- PM-CH-001 (current model)
- PHP34-CB30-HS (superseded)
Note: This blade must be used with the dedicated 3.0 mm blade holder. It is not compatible with standard CB09 blade holders.
Technical Specifications
- Product Name: Graphtec Super-steel Blade for Thick Materials
- Part Number: CB30UC-1
- Blade Type: Heavy-duty cutting blade
- Cutting Angle: 45°
- Blade Diameter: 3.0 mm
- Maximum Material Thickness: Up to 2 mm
- Material: Super-steel
- Quantity: 1 blade per pack
- Package Weight: 0.04 lb
- Package Dimensions: 2.76 x 1.97 x 0.59 inches
Cut Thick Materials With Confidence
Equip your flatbed cutter with the blade designed for rigid substrates and demanding applications.
CLICK HERE > To view blade & blade holder compatibility by Graphtec model
Additional information
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 1.97 × 2.76 × 0.59 in |
