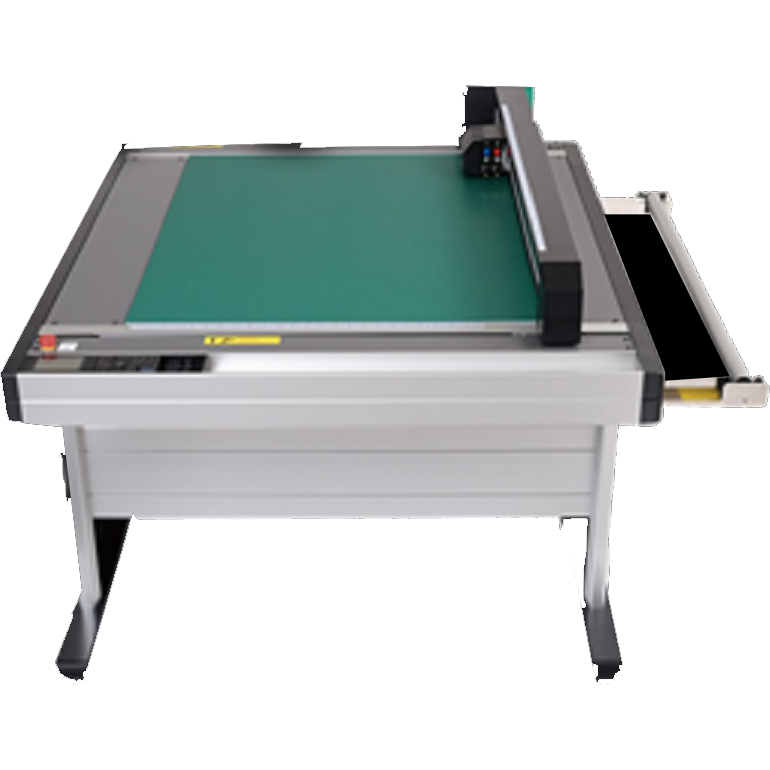

Graphtec FCX2000 Series Table Cutter
The Graphtec FCX2000 Series Table Cutter is engineered to streamline package prototyping and short-run production by eliminating the need for traditional cutting dies. Designed for medium to large format flatbed applications, the FCX2000 Series enables high-precision contour cutting and creasing on rigid and semi-rigid materials while reducing media waste, setup time, and production costs.
A redesigned Y-bar and reinforced cutting table deliver consistent accuracy across the entire cutting area. Enhanced vacuum suction media hold-down keeps materials flat and secure, ensuring clean cuts and accurate creases even on thicker substrates. With dual tool heads delivering up to 500 gf and 1000 gf of cutting force at speeds up to 400 mm per second, the FCX2000 Series processes a wide range of materials efficiently and reliably.
With dedicated design software and industry-standard plug-ins, the FCX2000 Series provides all the tools needed to produce professional packaging, displays, and prototypes quickly and cost effectively.
Why Choose Graphtec FCX2000 Series Table Cutter
The Graphtec FCX2000 Series is ideal for businesses that require precision flatbed cutting without the cost and lead time of steel rule dies. Its combination of vacuum hold-down, dual tool force, ARMS registration, and offline operation enables fast turnaround, repeatable quality, and flexible production. For packaging, prototyping, and short-run manufacturing, the FCX2000 Series delivers accuracy, efficiency, and long-term value.
Applications
- Package prototyping
- Short-run packaging production
- Folding cartons and rigid packaging
- Print and cut graphics
- Signage and specialty displays
- Industrial samples and mockups
- Gaskets and technical materials
Key Features
- Flatbed cutting and creasing without cutting dies
- Vacuum suction media hold-down for rigid materials
- Dual tool heads with up to 1000 gf cutting force
- Offline USB operation with automatic job settings
- Barcode-driven print and cut workflows
- Advanced Registration Mark Sensing System version 6.0
- Reinforced Y-bar and cutting table for high accuracy
- Intuitive 3.7-inch graphic LCD control panel
Available Models and Table Sizes
The Graphtec FCX2000 Series is available in three flatbed sizes to match production needs:
- FCX2000-60VC: 24 x 36 inch cutting area
- FCX2000-120VC: 36 x 47 inch cutting area
- FCX2000-180VC: 36 x 70 inch cutting area
All models utilize enhanced vacuum suction hold-down and the same core cutting and registration technology
Compatible Materials
- Vinyl and marking films
- Rubylith and static cling films
- Rubber sandblast resist
- Diamond grade reflective materials
- Chipboard and rigid paper up to 1.0 mm
- E-flute and other fluted boards
- Polycarbonate and plastic sheets
- Polystyrene foam sheets
Software Compatibility
- Cutting Master 4 plug-in for Adobe Illustrator and CorelDRAW
- Graphtec Pro Studio design software
- Graphtec Pro Studio PLUS optional upgrade for nesting and advanced workflows
These tools support registration marks, tiling, matrix copies, weed lines, and precise cut control.
Technical Highlights
- Cutter Type: Flatbed table cutter
- Media Hold-Down: Vacuum suction
- Maximum Cutting Speed: Up to 400 mm per second
- Cutting Force: 500 gf tool 1, 1000 gf tool 2
- Registration System: ARMS 6.0 with reverse-side cutting and creasing
- Interface: Ethernet, USB 2.0, Serial RS-232C
- Operation: Offline USB or PC-connected
- Platform Compatibility: Windows and Mac
Eliminate Cutting Dies and Speed Up Prototyping
Produce precise packaging, prototypes, and short runs faster with the Graphtec FCX2000 Series Table Cutter.
Additional information
| Weight | 5.0 lbs |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 in |
| Model | 60 24in, 120, 180 |
Graphtec FCX2000 Series Table Cutter Brochure
