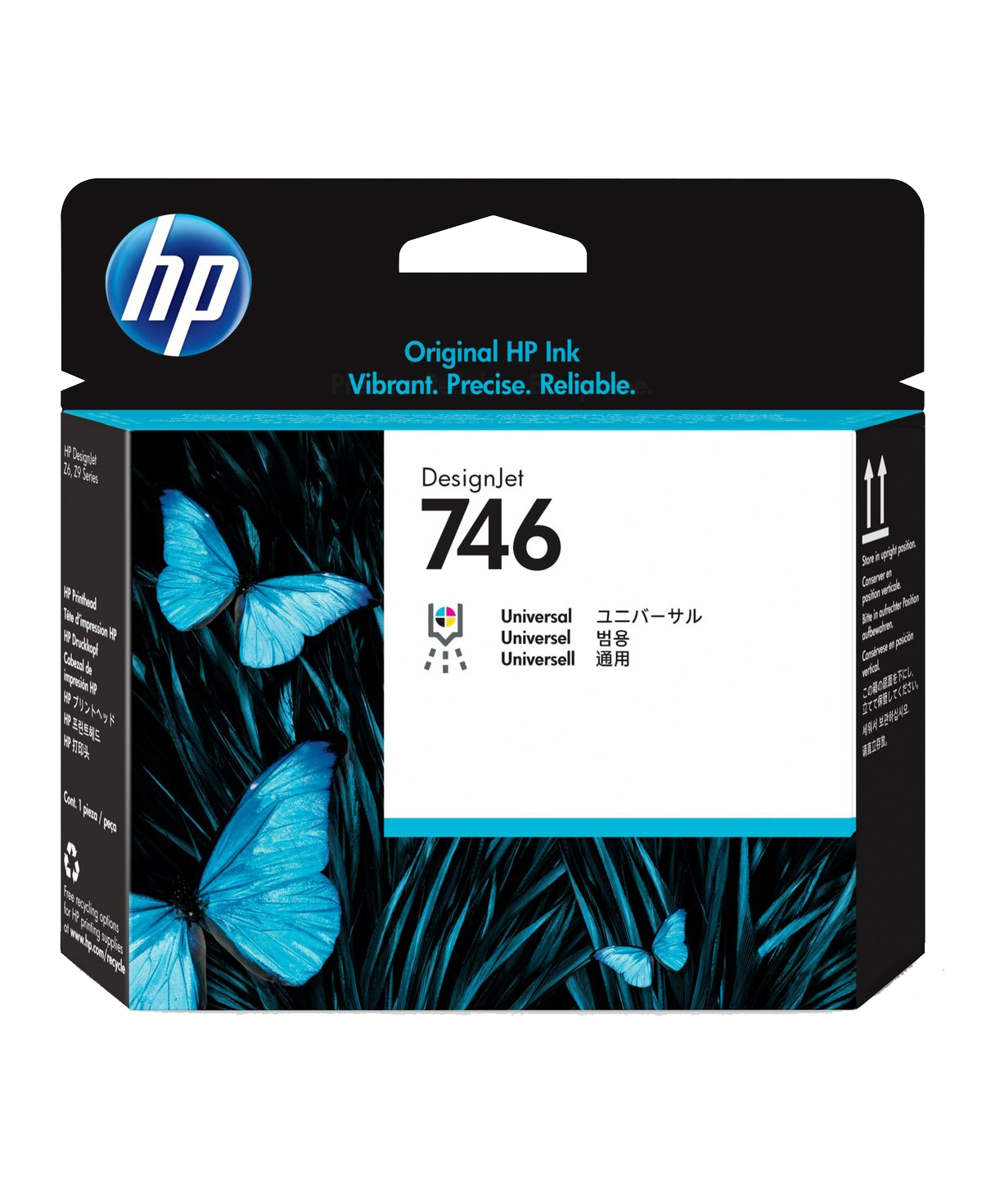

HP 746 DesignJet Printhead
Price:$147.00
HP 746 DesignJet Printhead for HP DesignJet Z9+ and Z6 (P2V25A)
The HP 746 DesignJet Printhead powers high-definition printing on HP DesignJet Z6 and Z9+ printers. Built with true 2400 nozzle-per-inch high-definition nozzle architecture, this universal printhead delivers sharp detail, smooth gradients, and high-contrast color without requiring light color inks.
Working in combination with chromatic HP Vivid Photo Inks, the HP 746 Printhead produces robust area fills at fast speeds using dual drop technology. Large drop sizes deliver strong coverage, while small drops reduce visible grain and improve fine detail. This advanced architecture doubles nozzle density to support consistent quality across graphics, photos, and production applications.
Designed for productivity, the HP 746 Printhead enables printing up to 2.5 times faster without sacrificing image quality. One printhead fires up to 76 million drops per second, with drop sizes as small as 3 picoliters, helping teams meet tight deadlines while maintaining day-one image quality.
Why Choose HP 746 DesignJet Printhead
The HP 746 DesignJet Printhead simplifies printhead management while maximizing uptime. Its universal design allows installation with any color, eliminating the need to stock individual color printheads. User-replaceable installation reduces downtime, protects print quality, and supports lower operating costs over time.
Key Features
- True 2400 nozzle-per-inch high-definition nozzle architecture
- Dual drop technology delivers smooth gradients and reduced grain
- No need for light color inks
- Prints up to 2.5 times faster without losing quality
- Fires up to 76 million drops per second
- Universal printhead works with any ink color
- User-replaceable to minimize downtime
- Free recycling through HP Planet Partners
Applications
- Photo-quality graphics
- High-speed production printing
- Posters and displays
- Technical and design output
- Retail and commercial graphics
Compatibility
Compatible with the following printers:
- HP DesignJet Z6
- HP DesignJet Z9+
Technical Specifications
- Ink Drop: 3 pl and 7 pl
- Compatible Ink Types: Pigment-based
- Operating Temperature: 41 to 104 °F
- Storage Temperature: -13 to 131 °F
- Operating Humidity: 20 to 80% RH
- Non-Operating Humidity: 20 to 80% RH
- Manufacturer Warranty: Valid until the warranty end date or usage limit is reached
Restore High-Definition Performance to Your DesignJet
Replace your printhead with the HP 746 DesignJet Printhead to maintain sharp detail, fast production speeds, and consistent print quality.
Additional information
| Weight | .18 lbs |
|---|---|
| Dimensions | 5.63 × 1.1 × 5.2 in |
