HP Latex R-Series Edge Holders Kit (Y6V16A)

HP Latex R-Series Edge Holders Kit Y6V16A is a fully engineered substrate control solution designed specifically for HP Latex R-Series flatbed printers. This kit secures rigid and semi-rigid substrates during printing, preventing edge lift that can cause carriage interference, printhead damage, or substrate jams.

The edge holders keep the substrate in place throughout the print zone, protecting both the media and critical printer components during operation. The kit supports different substrate thicknesses by offering interchangeable print-zone modules labeled for materials ≤ 0.5 mm (0.02 in) and > 0.5 mm (0.02 in), allowing operators to configure the system based on the media being printed.

The edge holders integrate directly with the printer’s alignment bar and include alignment-bar extenders, shims, straps, and low-friction protective film to ensure stable positioning from input through output. Once assembled, the holders remain reusable and can be stored in the provided case when not in use.

Why Choose HP Latex R-Series Edge Holders Kit Y6V16A

This genuine HP solution delivers controlled media handling without compromising workflow speed or print quality.

• Prevents substrate edges from lifting during printing
• Protects carriage, printheads, and curing assemblies
• Supports substrates both below and above 0.5 mm thickness
• Improves edge alignment and print accuracy on rigid media
• Designed specifically for HP Latex R-Series printers
• Reusable components with configurable setup options
• Genuine HP accessory built to production standards

What’s Included

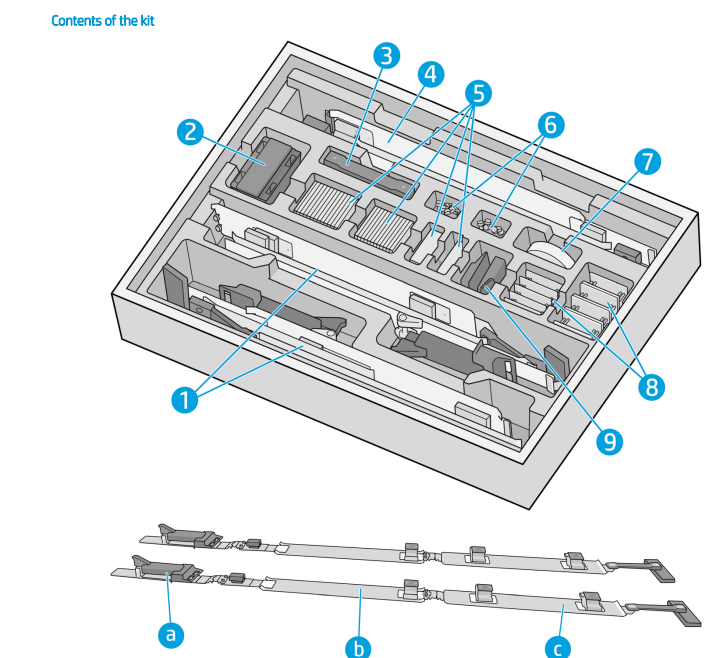

Based on HP documentation, the kit includes:

• Substrate edge holders
  • Input module
  • Print-zone module ≤ 0.5 mm (0.02 in)
  • Print-zone module > 0.5 mm (0.02 in)
• Output module
• Alignment-bar extenders
• Extra straps
• Shims and shim bases
• Screws and nuts
• Extra-low-friction protective film
• Storage box

Applications

• Rigid board printing
• Thin sheet and semi-rigid substrates
• Materials prone to edge curl or lift
• High-value prints requiring precise edge control

Compatibility

Compatible with HP Latex R-Series printers, including:

• HP Latex R1000
• HP Latex R2000

Compatibility Details
HP Latex R-Series printers are designed for rigid and specialty substrates. The edge holders integrate with the alignment bar system to stabilize media throughout the print path, reducing the risk of head strikes and ensuring consistent print results on demanding materials.

Key Specifications

• Product Type: Substrate Edge Holder Kit
• HP Part Number: Y6V16A
• Supported Substrate Thickness: ≤ 0.5 mm (0.02 in)
• Function: Prevents edge lift and substrate movement
• Integration: Alignment bar and print-zone modules

Control Rigid Media with Confidence

Reduce edge lift, protect critical components, and improve print reliability by adding the HP Latex R-Series Edge Holders Kit to your HP Latex R1000 or R2000 workflow.
