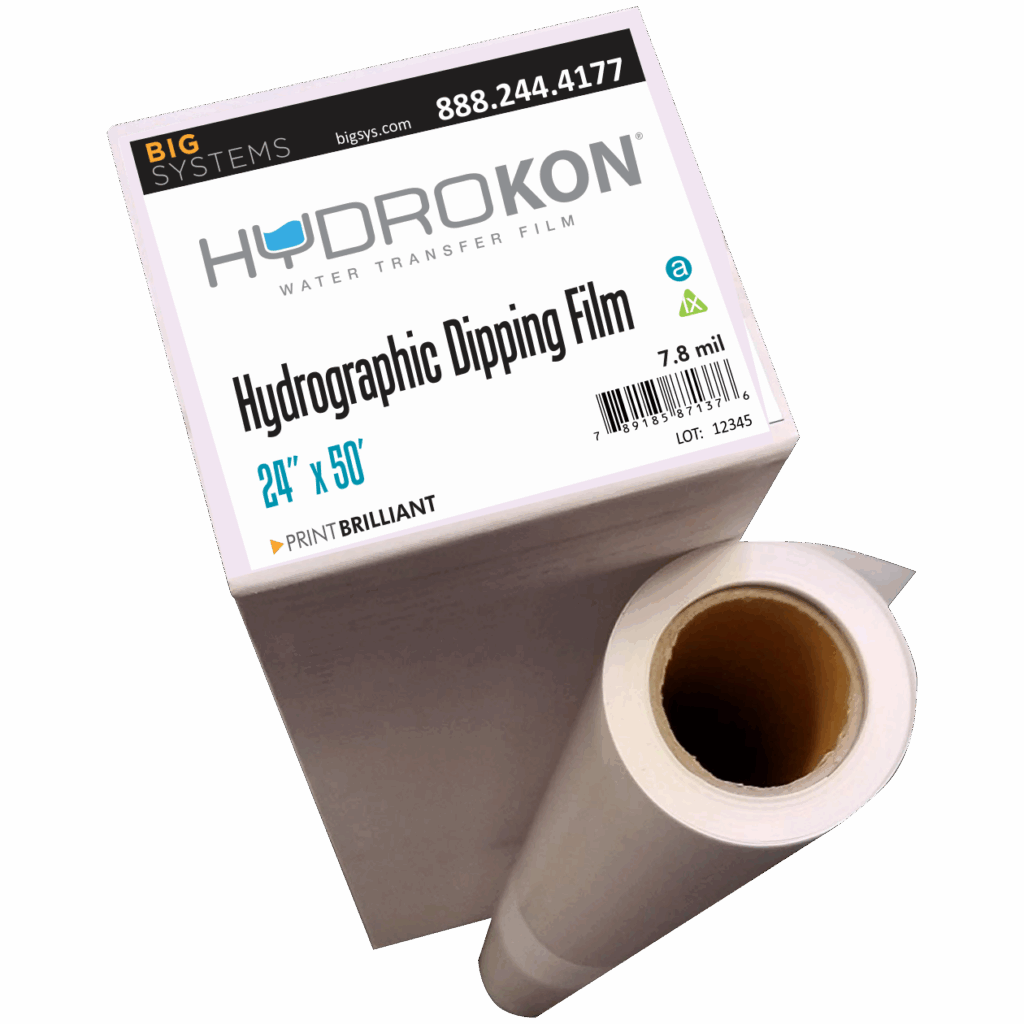

Hydrokon Printable Hydro Dipping Film PHGF-24

Hydrokon Hydro Dipping Film

Hydrokon Hydro Dipping Film Made in the USA is a premium hydrographic blank film engineered for dependable print performance, deeper dips, and consistent PVA removal. Manufactured and packaged in the United States with strict quality tolerances of ±4 microns, Hydrokon simplifies hydro dipping for production environments that demand reliability and repeatable results.

Featuring a 200-micron clear polyester carrier and a thicker PVA coating, Hydrokon supports clean printing, easier carrier removal, and optimized rinse control through a built-in fluorescent indicator.

Why Choose Hydrokon Hydro Dipping Film

Hydro dipping failures waste time, materials, and profit. Hydrokon eliminates common film frustrations with engineered consistency and built-in process control.

Hydrokon combines dependable manufacturing, optimized carrier design, and rinse verification technology to streamline hydrographic production from print to clear coat.

• Dependable Manufacturing: Produced in the USA under certified quality standards with tight thickness tolerances.
• Versatile Construction: Longer and wider roll options support larger parts and deeper dips.
• Optimized Carrier System: 200-micron clear polyester carrier improves print stability and eases removal.
• Fluorescent Rinse Indicator: Built-in UV-reactive PVA glows under blacklight to confirm complete removal.

Applications

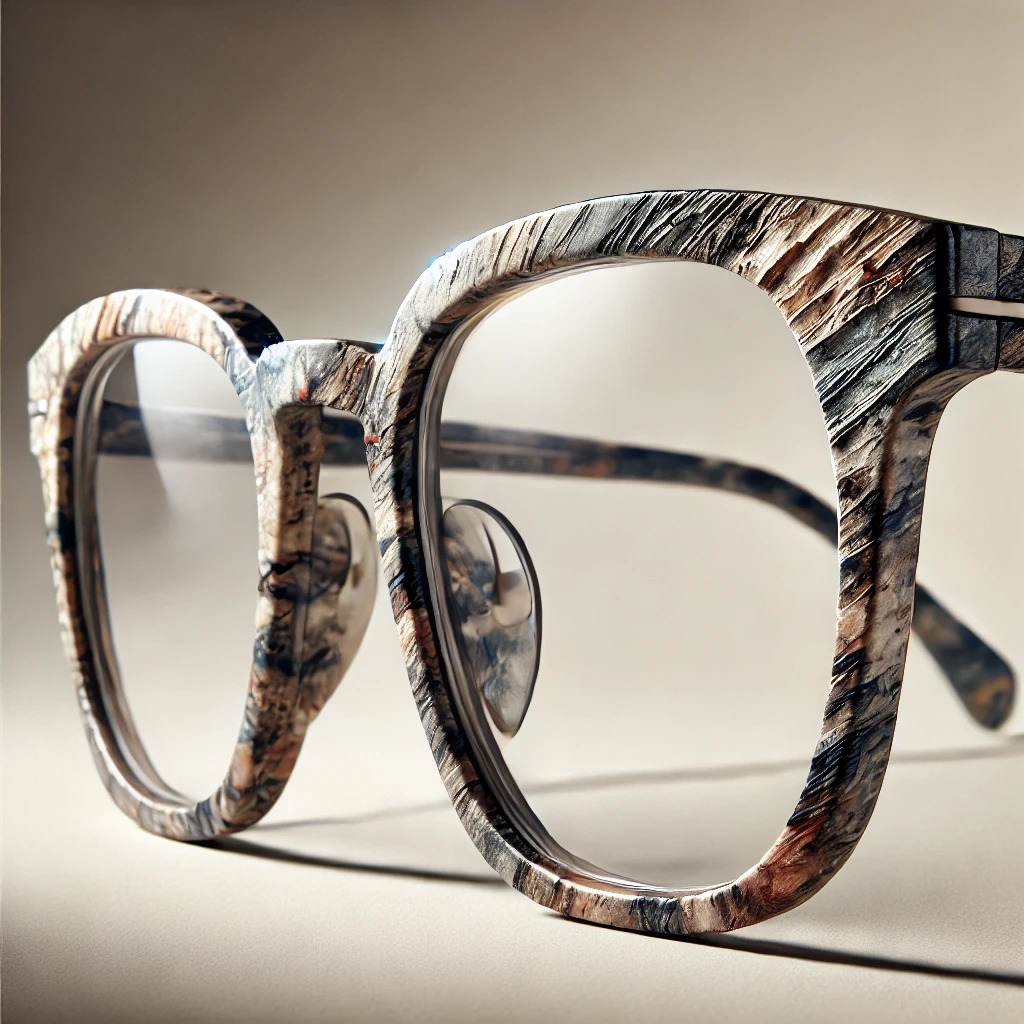

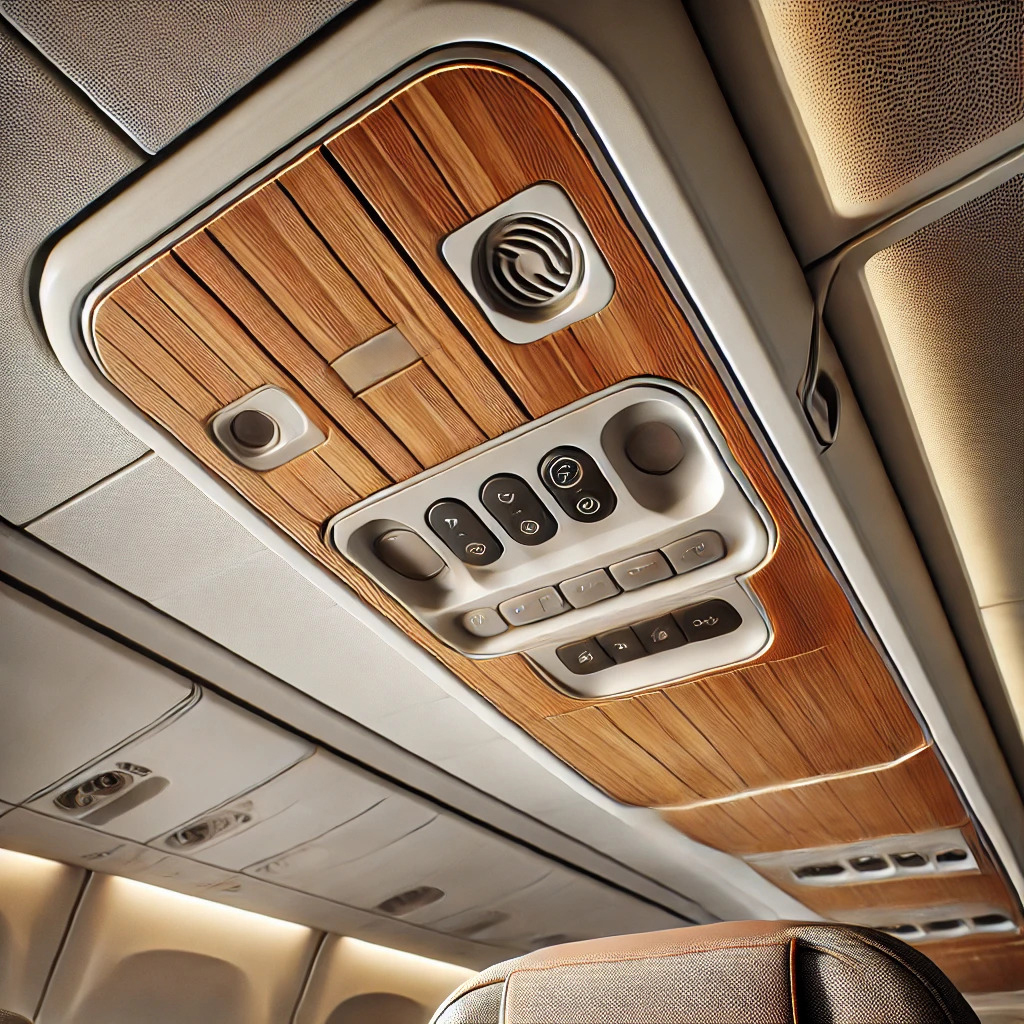

• Hydrographic blank film for custom graphics

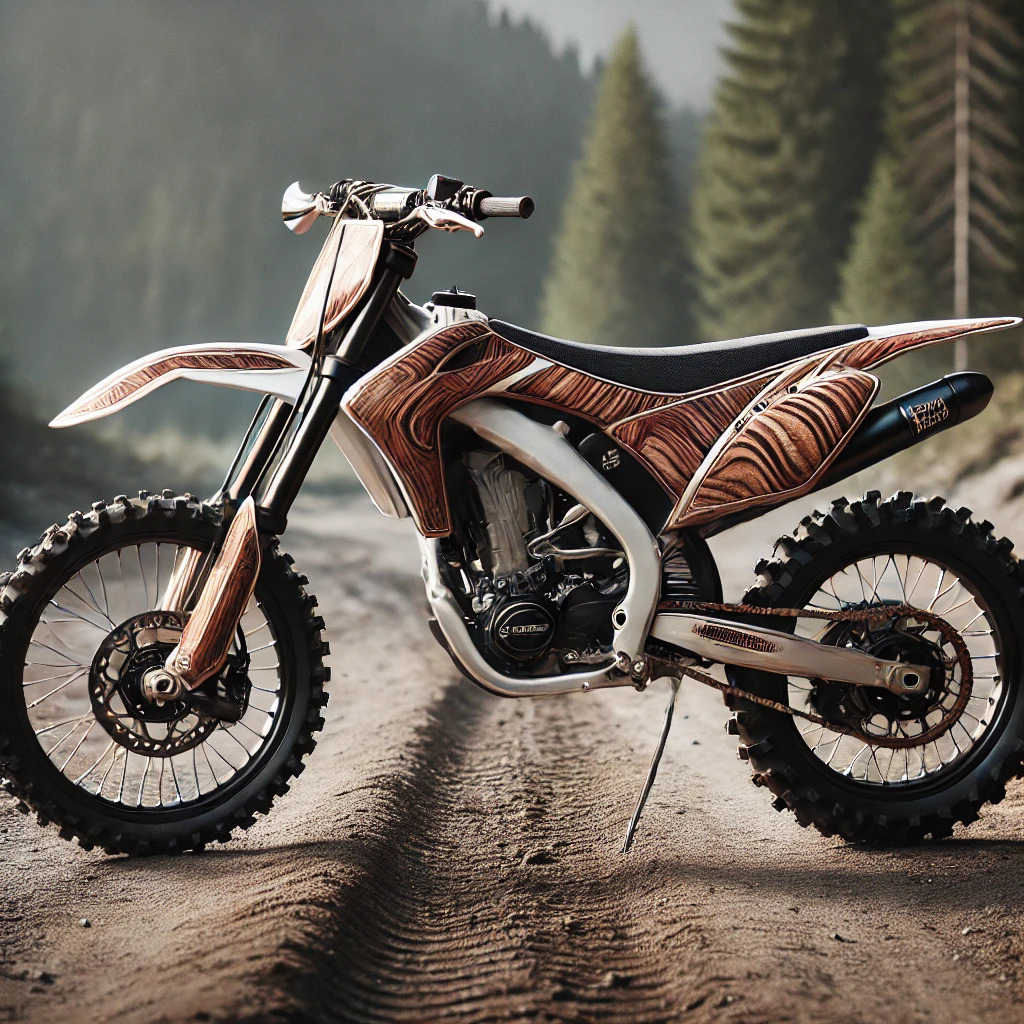

• Automotive trim and accessories
• Sporting goods and equipment

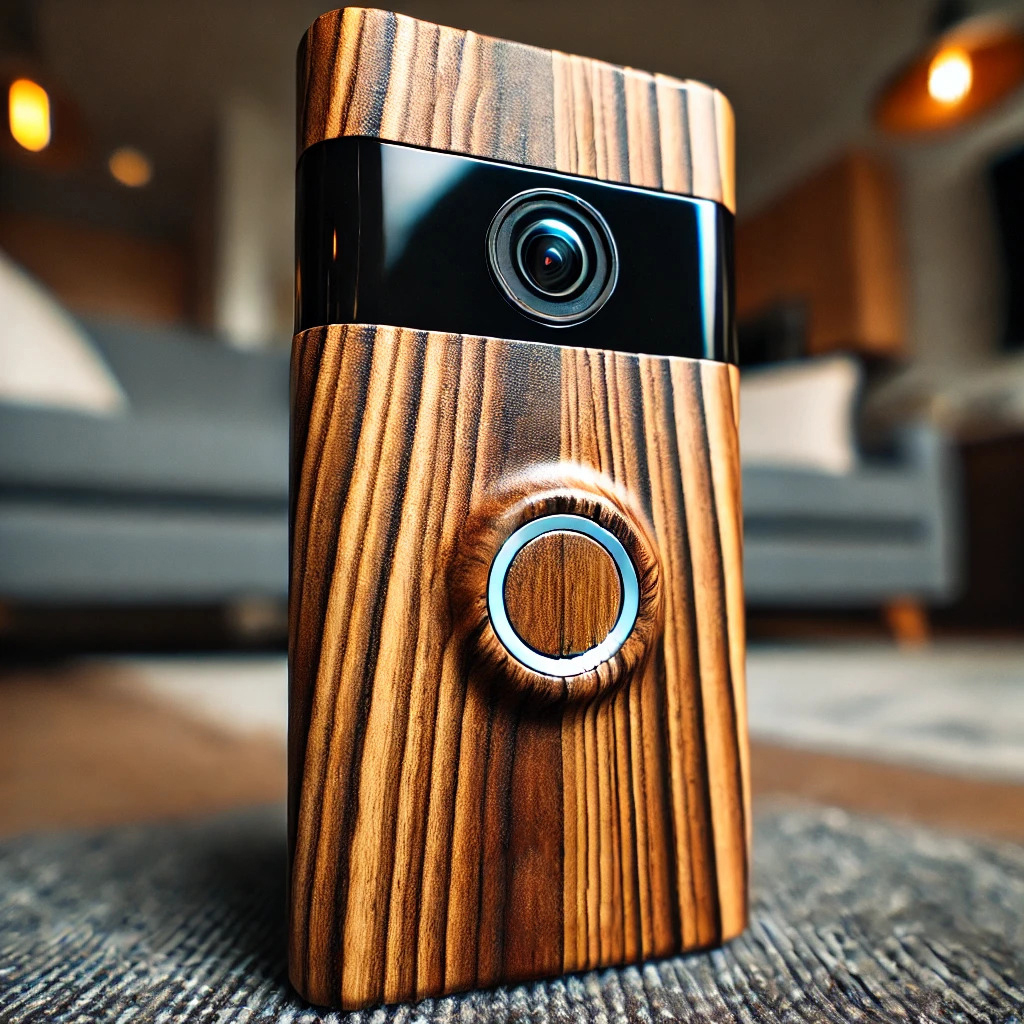

• Consumer product customization
• Industrial and promotional parts

Key Features

• Made and packaged in the USA
• Tolerance ±4 microns for consistent thickness
• Thicker PVA coating supports deeper dips
• 200-micron clear polyester carrier
• Fluorescent indicator for optimized rinse times
• Designed for professional hydrographic production
• Compatible with latex and pigment printing systems
• Supports custom graphic hydro dipping applications

Specifications

• Product Type: Hydrographic blank water transfer film
• Carrier: 200-micron clear polyester
• PVA Layer: Thicker coating for deeper dips
• Manufacturing Tolerance: ±4 microns
• Recommended Water Temperature: 90°F
• Film Dwell Time: 60 to 75 seconds
• Rinse Temperature: Do not exceed 120°F
• Storage Temperature: 65 to 75°F
• Recommended Humidity: 35 to 55% relative humidity

Printing Compatibility

Hydrokon Hydro Dipping Film Made in the USA is compatible with:

• Latex ink systems
• Pigment ink systems

Latex prints are ready for dipping immediately. Pigment prints require a light lacquer or fixative coat before dipping.

Hydrokon User Guide Overview

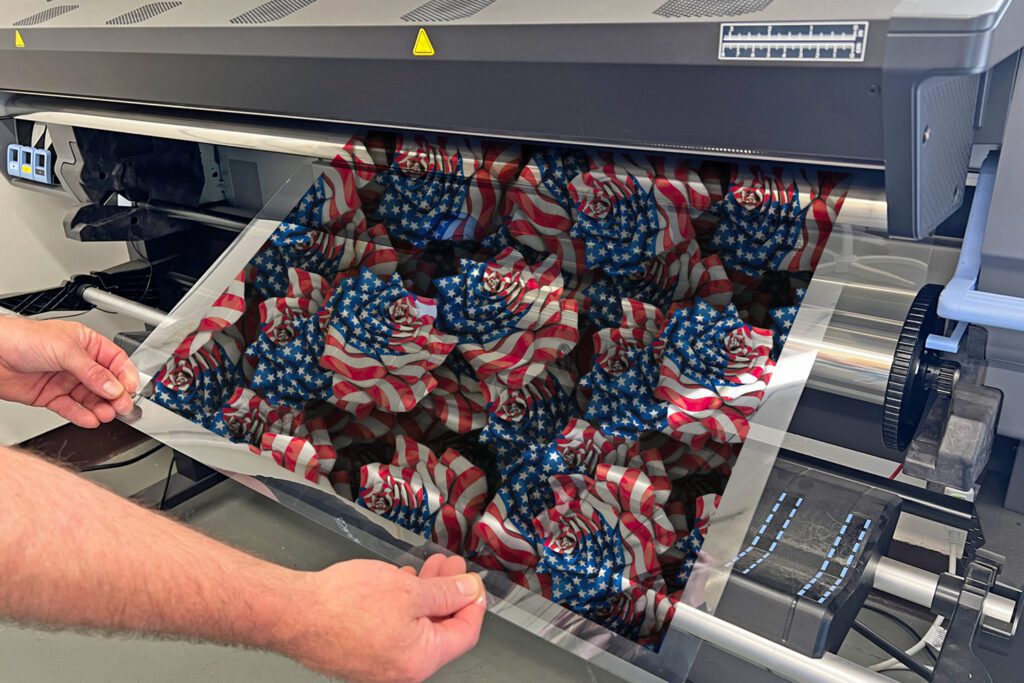

Image Preparation

1. Print on the matte coated side.
2. Allow prints to dry approximately 30 minutes unless using latex ink.
3. Apply light lacquer to pigment prints and allow 30 minutes to dry.
4. Use lacquer-treated film within 2 weeks.

Item Preparation

1. Degrease the object thoroughly.
2. Perform flame treatment if required.
3. Scuff or bead blast surface for adhesion.
4. Apply appropriate base coat and dip within 24 hours if not hydrographics specific.

Dipping Process

1. Cut film and remove clear backer.
2. Place film printed side up on 90°F water.
3. Allow 60 to 75 seconds dwell time.
4. Apply activator evenly.
5. Dip object.
6. Rinse PVA with warm water below 120°F.
7. Use UV blacklight to verify full PVA removal.
8. Allow to dry completely.
9. Apply clear coat.

FAQ

What makes Hydrokon different from standard hydrographic film?
Its controlled thickness tolerance, thicker PVA layer, and fluorescent rinse indicator improve process control and reduce rework.

Why is the fluorescent indicator important?
It confirms complete PVA removal under UV light, reducing the risk of adhesion or finishing defects.

What inks can I use?
Latex and pigment inks are supported. Pigment prints require a lacquer coat before dipping.

Where is Hydrokon manufactured?
Hydrokon is made and packaged in the United States.

Simplify Hydro Dipping with Engineered Control

Achieve consistent, professional hydrographic results with Hydrokon Hydro Dipping Film Made in the USA.
