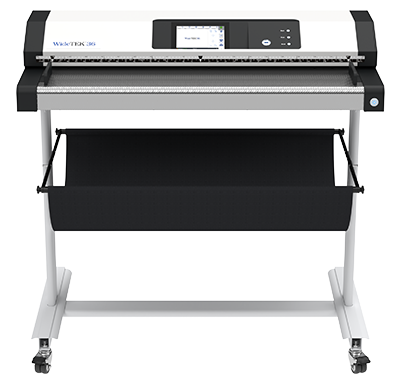

Image Access WideTEK 36 Wide Format Scanner

Description

WideTEK 36 – Wide Format CCD Scanner for documents up to 36 inch widths WT36-600-BDL

WideTEK 36 is a high-speed, production-ready 36 inch wide format CCD scanner designed for technical drawings, maps, posters, and archival documents. With upgraded electronics, a modern operator interface, and a true standalone Scan2Net platform, it supports shared scanning environments where users need to walk up, scan, and send files to the right destination in seconds.

Why Choose the WideTEK 36

• CCD image quality for technical detail: Tri-color CCD capture with bright white LED illumination delivers sharp lines, smooth gradients, and excellent color fidelity for CAD drawings and graphic documents.
• Fast performance with upgraded hardware: Intel Core Gen 9 processing and a fast SSD help accelerate internal processing and overall responsiveness.
• Standalone Scan2Net system: The integrated 64-bit Linux PC supports scanning to network folders, FTP, email, USB drives, and direct print, without requiring an external computer.
• Shared-device convenience: Integrated walk-up scanning software enables quick scan-to-destination actions from the touchscreen, ideal for multi-user departments.
• Mobile control with Scan2Pad: Adjust color mode, brightness, contrast, and create PDFs directly from a tablet or smartphone on your network.
• Gentle handling for fragile originals: Specialized transport rollers and a non-touch background drum help protect historical or delicate documents during capture.
• Production durability and value: Dust-protected optical components, no consumables, and a long service life support consistent output and a strong price-to-performance ratio.

Complete redesign of electronics and improved hardware adds new functionality and enhances the already acclaimed camera technology

Upgraded WideTEK 36 Features:

• Intel Core^TM Gen 9 processor
• Lightning fast image processing
• Fast 250GB SSD
• Powerful, silent micro stepping motors & controls
• High resolution 7″ multi-touch display
• Improved ON/OFF switch
• New firmware includes dark mode

Easy to use walk up scanning or mobile scanning with Scan2Pad

The integrated walk up scanning software makes the scanner a truly shared device. One click of the mouse is enough to either print the scan, send it to any directory in the network or via email, to upload it to the FTP server, or to save it to the USB memory device. Simply walk up, scan and store or send the image, all through the use of the touchscreen.

Scan2Pad lets you control the WideTEK 36 wide format scanner using an iPad or an Android tablet or even a smartphone running Android version 4.0.3 or higher. Quickly adjust the color depth, go from black & white to grayscale or full color and adjust brightness and contrast on your pad. Create PDF documents from your scans in a single step. Scan2PAD is the unique mobile scanning application that doesn’t require you to use an external cloud server. Simply scan your documents and take them away on your pad. It is fast, secure and best of all, free of charge.

WideTEK 36 gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. For historical and fragile documents, this is critical.

Applications

• Architecture, engineering, construction, and CAD documentation
• Utilities and government plan sets
• GIS and mapping departments
• Reprographics and copy services
• Universities, libraries, and archival preservation
• Large-format posters, artwork, and display graphics

---

Key Features

• Scans up to 36 inch widths (maximum scan width 36 in)
• Fast color scanning up to 14.2 in/sec at 200 dpi
• 1200 x 1200 dpi scanner resolution (optional interpolated modes may be available)
• Automatic crop and deskew
• Automatic format and position recognition of originals placed anywhere on the bed
• Virtual rescan: adjust images without rescanning
• Configurable scan templates and target templates
• Face-up scanning for easy loading and viewing
• Wide color gamut support (Adobe RGB, sRGB, native RGB)
• Standalone device with integrated Linux PC
• Direct output to USB port
• Scan2Net output to SMB, FTP, printer, and email
• Multiple output formats including multipage PDF (PDF/A) and TIFF
• Gigabit Ethernet interface
• Remote maintenance and firmware updates via web interface
• Scan2Pad support for tablet and smartphone operation
• 7 inch multi-touch display and dark mode support

---

Specifications

Document Handling

• Maximum Document Width: 37.4 in
• Maximum Scan Width: 36 in
• Maximum Document Thickness: 0.1 in
• Autoformat Size Recognition: Yes
• Formats: DIN A5 through DIN A0, Legal, US E, plus user-defined

Resolution and Imaging

• Scanner Resolution: 1200 x 1200 dpi (optional interpolated modes may be available)
• Optical Resolution: 1200 x 600 dpi
• Pixel Dimension: 9.3 x 9.3 µm
• Color Depth: 36-bit color, 12-bit grayscale
• Scan Output: 24-bit color, 8-bit grayscale, bitonal, enhanced halftone
• Quality: Complies to FADGI *** guidelines and ISO 19264-1

Speed (Color)

• 200 dpi: 14.2 in/sec
• 300 dpi: 9.6 in/sec
• 600 dpi: 4.0 in/sec
• 1200 dpi: 1.2 in/sec

Accuracy

• Scan direction: ± 0.08% across 36 inch scanning width
• Transport direction: ± 0.08% with new transport rollers

System and Connectivity

• Computer: 64-bit Linux, Intel i3 quad core, 8GB RAM, 320GB HDD (for large jobs)
• Interface: 1 GBit Fast Ethernet with TCP/IP-based Scan2Net interface
• Camera: 3x tri-color CCD, 67,500 pixels, encapsulated and dust-proof
• Light source: Two lamps with 154 white LEDs each, no IR/UV emission
• Lamp life: 50,000 hours (typical)

Dimensions and Weight

• Scanner Dimensions (H x W x D): 9 x 43.1 x 20 in
• Scanner Weight: 90 lb (approx.)

Electrical and Operating Environment

• Electrical Connection: 100–240V AC, 47–63 Hz (external power supply)
• Power Consumption: 0.5W (sleep) / 4.8W (standby) / 35W (ready) / 55W (scanning)
• Operating Temperature: 40 to 105 F
• Relative Humidity: 20 to 80% (non-condensing)
• Noise: <35 dB(A) scanning, <25 dB(A) standby

---

Options

• Transparent document carriers for fragile originals (A0 and A1 sizes)
• Batch Scan Wizard (high-volume scanning and indexing)
• TWAIN interface option
• Scan2OCR background text recognition during scan jobs
• PrintWizard direct communication with Canon TDS, Canon iPF, HP PageWide and DesignJet, Epson SureColor
• Scan2ICC subscription for ICC color management and profiles
• Extended resolution option (up to 9600 dpi)
• Full Coverage Warranty subscription (up to 5 years with spare parts coverage)

Configure Your WideTEK 36 Scanning Station

Contact Big Systems to confirm the WT36-600-BDL bundle components, recommended setup, and best practices for your document types and output destinations.
