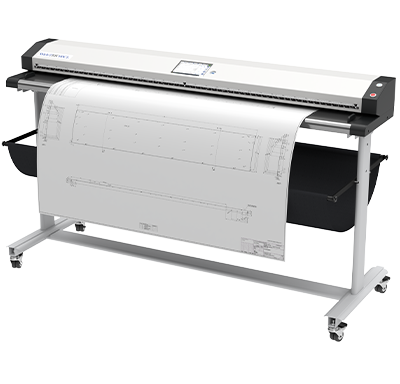

Image Access WideTEK 60CL Wide Format Scanner

WideTEK 60CL – Fastest 60 Inch Color CIS Scanner WT60CL-600-BD

WideTEK 60CL scanners are built for production environments that demand speed, accuracy, and nonstop reliability. Designed and manufactured in Germany, this 60 inch color CIS scanner delivers industry-leading performance while maintaining exceptional image quality across technical documents, graphics, maps, and fragile originals.

With guaranteed scanning speeds powered by Scan2Net technology and a fully integrated internal PC, the WideTEK 60CL operates as a true standalone system capable of running continuously in demanding production settings.

Why Choose the WideTEK 60CL

When throughput, precision, and uptime matter, the WideTEK 60CL stands apart. It combines the fastest CIS capture speeds in its class with intelligent image processing, gentle document handling, and direct output to storage, network destinations, or printers without requiring a separate computer.

---

Production-Grade Speed and Image Quality

The WideTEK 60CL scans at up to 8 inches per second in full color at 150 dpi and maintains 1 inch per second at full 60 inch width and 600 dpi. Black and white or grayscale scanning speeds are tripled, with adjustable transport speed for fragile or valuable originals.

Advanced CIS camera modules deliver color accuracy that rivals or exceeds CCD systems while producing exceptionally sharp images across the entire scan width.

---

True Standalone Operation with Scan2Net

An integrated 64-bit Linux PC with 16 GB of memory allows the WideTEK 60CL to operate independently. Scans can be sent directly to FTP servers, network folders, USB drives, cloud destinations, or printers without an external workstation.

Real-time rotation, automatic cropping, deskewing, preview, and storage are performed on the fly, significantly reducing total scan-to-file time.

---

Gentle Handling for Valuable Documents

Specialized transport rollers apply minimal pressure to protect fragile originals. Automatic document size recognition, dust-protected optical components, and encapsulated CIS modules ensure long-term reliability and consistent performance in high-use environments.

---

Key Features

• Fastest 60 inch color CIS scanner available
• Production-quality color accuracy and sharpness
• Scan speeds up to 8 ips at 150 dpi color
• 1 ips scanning at full width and 600 dpi
• Tripled speeds in black and white or grayscale modes
• Integrated Scan2Net standalone system
• Built-in 64-bit Linux PC with 16 GB memory
• Real-time rotation, cropping, and deskewing
• Gentle document transport for fragile originals
• Dust-protected, encapsulated optical components
• Direct scanning to network, USB, cloud, or printers

---

Specifications

• Maximum Scan Width: 60 inches
• Maximum Document Width: 61.8 inches
• Maximum Document Thickness: 0.5 inches
• Optical Resolution: 1200 x 1200 dpi
• Interpolated Resolution: up to 9600 dpi
• Scanning Speed:
  • 8 inches per second at 150 dpi color
  • 1 inch per second at 600 dpi full width color

Dimensions

• Scanner: 66.8 W x 14.1 D x 6.7 H inches

Weight

• Scanner Only: approximately 77 lbs
• Floor Stand: approximately 46 lbs
• Shipping Weight: approximately 87 lbs

---

Connectivity and Printer Integration

The WideTEK 60CL connects directly to wide format printers from Canon, HP, and Epson using integrated printer drivers. This enables direct scan-to-print functionality with full feature compatibility for technical and production printing environments.

---

Ideal Applications

• Engineering and architectural document scanning
• GIS maps and large-format technical drawings
• Reprographics and print service providers
• Government, utilities, and public sector archives
• High-volume production scanning environments

Built for High-Speed Production Scanning

The WideTEK 60CL delivers unmatched speed, accuracy, and reliability for wide format scanning environments that cannot slow down. Contact Big Systems to confirm integration options and determine if the WideTEK 60CL is the right fit for your production needs.
