Keencut Evolution3 SmartFold Cutter
Price: Select an Option
Description
Keencut Evolution3 SmartFold Cutter
The Keencut Evolution3 SmartFold Cutter sets a new production standard for speed, accuracy, and workflow efficiency. Built for busy print and finishing environments, the SmartFold cuts up to four times faster than traditional hand cutting while maintaining exceptional precision across a wide material range. From delicate tissue and textiles to rigid foamboard up to 13 mm thick, this cutter delivers clean, high quality edges with no dust or debris that could compromise vinyl or print surfaces.
Equipped with integrated Lift and Hover technology and an anti sag mechanism, the SmartFold enables true single handed alignment regardless of material thickness. The cutter bar hovers evenly across the entire surface, ensuring straight, repeatable cuts even on the longest sizes. Its built in polymer cutting strip supports fabric and delicate material cutting without the need for a separate mat, and the system folds down instantly to open the bench for other work.
At Big Systems, we support production teams nationwide with professional grade finishing tools engineered for longevity and accuracy. The Keencut Evolution3 SmartFold Cutter delivers the reliability, precision, and flexibility required by today’s print providers.
Why Choose the Keencut Evolution3 SmartFold Cutter
- Cuts up to four times faster than manual freehand cutting
- Debris free cutting ideal for vinyl application and sensitive material handling
- Single handed alignment increases productivity and reduces operator fatigue
- Guaranteed 0.2 mm accuracy across the full length of the cut
- Compatible with multiple QuikSwap heads for cutting, scoring, creasing, and textile work
- Heavy duty engineering built for long term industrial use
- Folds down instantly to free bench space

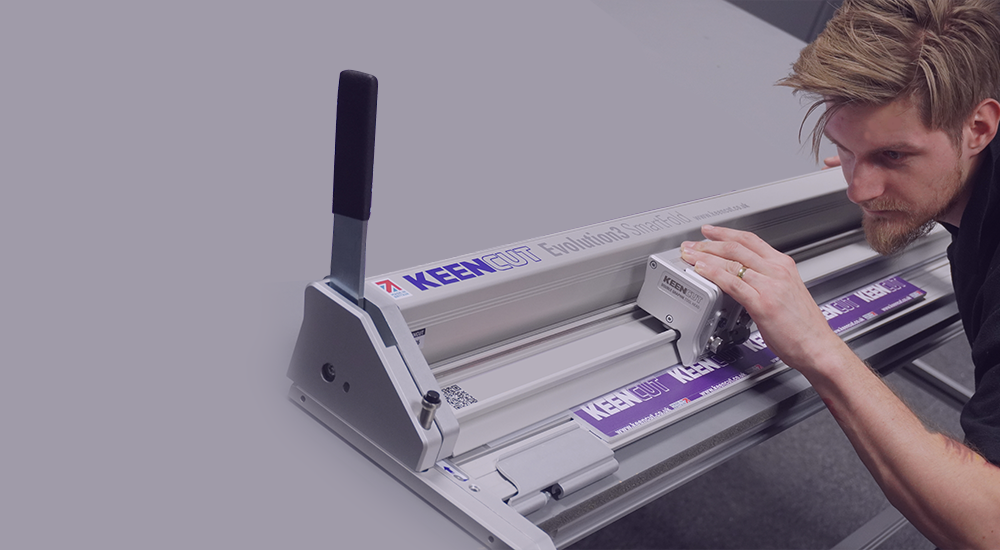

Single-handed, fast accurate alignment
Two unique features enable single-handed, fast and accurate alignment of all materials irrespective of thickness. The Lift-and-Hover system enables the clamping bar to be easily raised and then lowered so it hovers just above the material surface. The anti-sag mechanism means the cutter bar can be suspended exactly parallel to the media surface over the whole length of the cut with zero sag, even on the longest sized cutter.
Guaranteed accuracy
The Evolution3 is the most accurate cutter of its type on the market and is guaranteed to cut within 0.2mm (0.008) of a straight line for the full length of the cut. The in-built ultra-high precision accuracy, combined with the perfect alignment made possible using the sightline strip, means every butt-jointed panel will join seamlessly. This ultra-high precision accuracy will save you time and money with less waste and fewer mistakes.
Total stability
The self-adjusting track roller system fitted to the QuikSwap tool heads provides a strong and smooth movement up and down the length of the cutter bar, with zero sideways movement to ensure a perfect straight line. This, coupled with rigid blade clamping, gives perfect blade control and spot-on accuracy, so less wastage and mistakes.
Simple to use
The combination of the Lift-and-Hover and the sightline strip really does make cutting easier and faster than ever before. Even first-time users will be able to cut accurately with confidence.
Applications
- Sign and graphics production
- Print service providers
- Fabrication and prototyping
- Vinyl application and mounting areas
- Packaging samples and display creation
- Textile, paper, foamboard, and semi rigid material cutting
Key Features
- Lift and Hover technology for fast, precise setup
- Anti sag design keeps the cutter bar parallel at all lengths
- Sightline strip supports perfect material alignment
- Rigid blade clamping ensures straight cuts and eliminates drift
- QuikSwap Double Graphik tool head included with two way cutting capability
- Optional tool heads for fabric, creasing, general purpose, and ACM scoring
- Integral cutting strip with four selectable cut lines
- Built for heavy duty production with precision manufactured components
- Five year comprehensive Keencut guarantee
Heavy duty reliability
The entire Evolution3 range has been built to last, using high quality materials and well tested engineering principles. The cutting head bearing system and clamping are tough enough to keep perfect blade control, even with the most difficult of materials. Keencut makes the majority of components on its precision CNC machines, keeping tolerances and quality under constant control, assuring exceptional accuracy and total reliability.

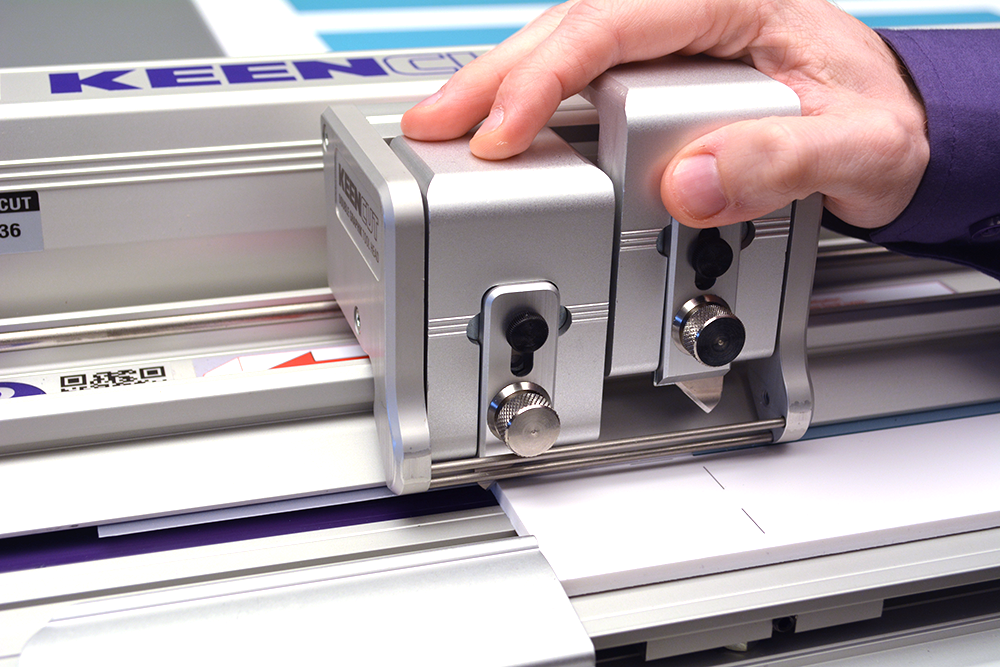

QuikSwap Double Graphik tool head
The Evolution3 Double Graphik tool head comes as standard and has two individual blade holders for two-way cutting. The blades are stronger and more stable than regular blades making the Double Graphik tool ideal for vinyl, banner, cardboard, PVC foamboard up to 13mm (1/2), foam-centred board, corrugated plastic, paper, pop-up and roll-up materials.
Compatibility and Available Sizes
The Keencut Evolution3 SmartFold Cutter is available in the following cut lengths:
- 44 inch
- 64 inch
- 84 inch
- 104 inch
- 124 inch
- 144 inch
Upgrade Your Finishing Precision
Enhance productivity and eliminate cutting errors with professional grade Keencut equipment. Big Systems provides nationwide support, expert guidance, and dependable service for all Evolution3 cutters.
Additional information
| Weight | 1100.0 lbs |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 in |
| Cut Lengths |
Data Sheet – Click here
Cutter Guide – Click here
How to cut banner video – Click here
How to cut PVC foamboard video– Click here
