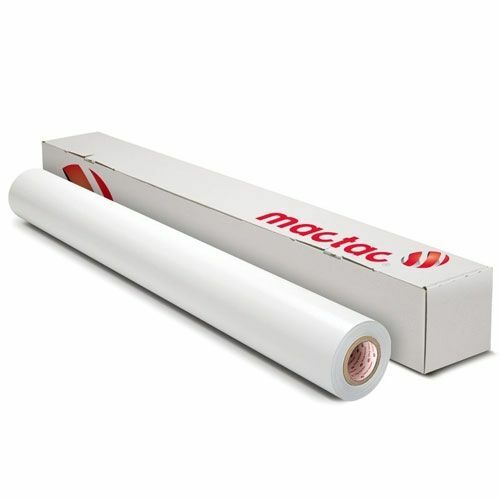

MacTac RoughRap White Gloss Opaque Vinyl

MacTac RoughRAP RR100

MacTac RoughRAP RR100 is a 2.0 mil gloss white cast PVC vinyl engineered specifically for moderately textured brick and masonry surfaces. Designed for exterior and interior brick wall graphics, this highly conformable film pairs a soft cast facestock with a high tack, permanent, opaque acrylic adhesive to create bold architectural graphics that bond where traditional vinyl fails.

MacTac RoughRAP RR100 delivers the conformability required to heat-set into mortar lines and textured substrates while maintaining vibrant inkjet print performance across latex, solvent, eco-solvent, UV, and UVgel platforms.

---

Why Choose MacTac RoughRAP RR100

When your project calls for dramatic brick wall graphics with long-term visual impact, MacTac RoughRAP RR100 provides the conformability and adhesion strength required for textured masonry surfaces.

• Highly Conformable Cast PVC: Designed to heat-set into brick and mortar recesses
• High Tack Permanent Adhesive: Opaque acrylic system for textured exterior walls
• Optimized for Inkjet Printing: Latex, Solvent, Eco-Solvent, UV, and UVgel compatible
• Architectural Wall Focused: Built specifically for moderately textured brick
• Extended Durability: 18 months outdoors, up to 5 years indoors
• Class A Fire Rating: Meets ASTM E84, ANSI/NFPA 255, and IFC standards
• Lay-Flat 90# Liner: Improves print stability and installation control

---

Applications

• Exterior brick wall murals
• Interior brick feature walls
• Retail storefront graphics
• Event venue branding
• Campus installations
• Restaurant exterior branding
• Public art installations
• Architectural advertising

---

Performance & Durability

• Outdoor Printed Graphic Durability: Up to 18 months
• Indoor Printed Graphic Durability: Up to 5 years when installed correctly
• Shelf Life: 2 years at 60 to 77°F and 50% relative humidity
• Minimum Application Temperature: 50°F
• End Use Temperature Range: -4°F to 160°F

For enhanced durability and easier handling during installation and removal, laminate with:

• Permacolor® LF3648 Gloss RAYZor
• Permacolor® LF3638 Matte RAYZor

Note that overlamination will moderately reduce conformability on extreme textures.

---

Key Specifications

• Film Thickness: 2.0 mil cast PVC
• Finish: Gloss white opaque
• Adhesive: Permanent high tack acrylic
• Liner: 90# polycoated 2-side release liner
• Width: 54 inches
• Length Options: 75 feet and 150 feet

---

Installation Overview

MacTac RoughRAP RR100 requires heat-assisted installation for optimal performance on brick.

• Apply only to completely dry surfaces
• Heat to minimum 850°F during conforming process
• Press into mortar joints using a semi-rigid roller
• Post-heat to 220°F to reset film memory
• Trim out expansion joints and mortar recess seams
• Expect 10 to 20% non-contact in deep recess areas, which is normal

Always test a 10 inch by 10 inch section before full installation.

---

Limitations

• Not recommended for extremely heavy stucco or deep texture surfaces
• UV inks may reduce stretch and increase cracking risk
• Application and removal may damage unsound substrates
• No guarantee on painted or scrub-able wall surfaces
• Always test prior to full production

---

FAQ

Can MacTac RoughRAP RR100 be installed on brick walls?
Yes. It is engineered specifically for moderately textured brick and masonry surfaces using heat-assisted installation.

How long will the graphic last outdoors?
Expect up to 18 months outdoors depending on ink system and environmental exposure.

Does it require lamination?
Lamination is not required but strongly recommended to extend life and improve handling.

Can it be removed?
Yes. Re-heat to approximately 150°F and remove at a 180° angle. Some adhesive residue may remain.

Will it fully conform into deep mortar lines?
It conforms into most moderate textures. Deep recesses may not achieve full contact, which is expected and normal.

---

Compatibility

MacTac RoughRAP RR100 is compatible with:

• Latex printers
• Solvent printers
• Eco-Solvent printers
• UV Inkjet printers
• UVgel printers
• Screen printing (UV and solvent)

---

Transform Brick Walls Into Branded Architecture

Choose a MacTac cast vinyl engineered to conform, bond, and perform on textured masonry surfaces.
