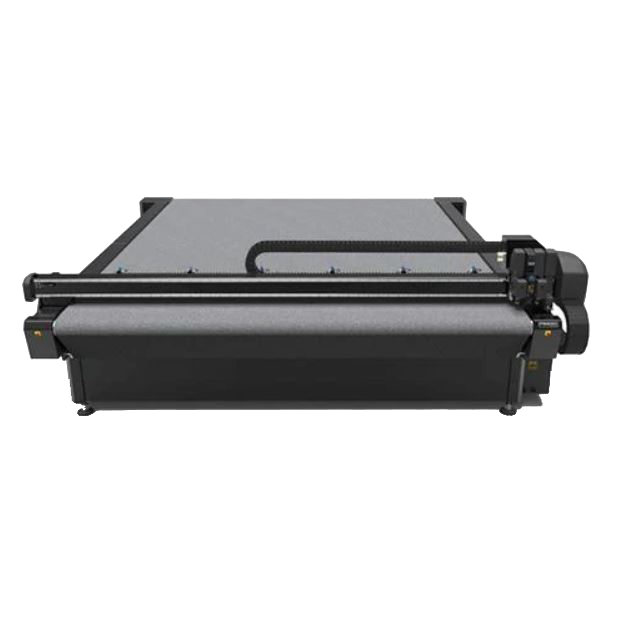

Summa F Series F3220 128″ x 82″ Flatbed Cutter

Description

Summa F Series F3220 128″ x 82″ Flatbed Cutter

The Summa F Series F3220 Flatbed Cutter is purpose-built for wide-format professionals producing textiles, signage, and composite materials. With a 128.7″ x 82.6″ cutting area, it aligns perfectly with 3.2-meter printers for seamless print-to-cut workflows.

The system features Summa’s proven automatic tool calibration, barcode-driven workflows, and GoProduce software to streamline job handling and reduce errors. Heavy-duty roll support options make it well-suited for banner and textile finishing at scale.

Why Choose the Summa F3220

A wide-format flatbed cutter optimized for textile and signage throughput.

• Matches 3.2-meter print widths
• Supports roll and sheet production
• Built for continuous, high-accuracy output

Applications

• Soft signage and textiles
• Banners and flexible substrates
• Large format POS displays

Key Benefits

• Triple-head cutting architecture
• Barcode and tandem workflow support
• Heavy-duty roll support compatibility
• GoProduce software with automation presets
• Matches 3.2 m wide textile printers
• Ideal for high-production environments
• HD RS for heavy roll material
• Modular tooling system
• Integrated Safety System

Ideal to cut:

• Textile (flags, mesh, banners)
• 3 m x 2 m board material

Modules & Tools

All F Series models can be equipped and retrofitted with various modules and tools. This makes the F Series ideal to grow with your business and open up new markets at any given time.

• High Frequency Router
• High Torque Rotary module
• Tangential module
• V-Cut tools, creasing tools, Heavy-Duty Cutout tool, etc.

Technical Specifications

• Model: F3220
• Dimensions: 166 x 123 x 48 in.
• Media Width: Up to 131 in.
• Working Area: 128.7 x 82.6 in.
• Vacuum: 4 kW (50Hz) / 4.6 kW (60Hz)
• Vacuum Zones: 7 Zones (1 row x 7 columns)
• Weight: Approximately 3,300 lb (1,497 kg)

Requirements:

• Standard: 3 x 400V + N, 50Hz, max 20A
• Or: 3 x 208V + N, 60Hz, max 30A
• Or: 3 x 230V, 50Hz, max 20A

Standard Solution includes

• F Series Flatbed System
• Conveyor System with Pneumatic Media Clamps and Roll Support
• Safety Pack
• Camera System
• Axis Control Software
• Drag Module
• ADC Left & Right
• GoProduce software
• Speed: up to 1000 mm/sec
• Acceleration: Up to 1G

Increase wide-format finishing efficiency

Connect with a Big Systems specialist to see how the Summa  F Series F3220 Flatbed Cutter fits your workflow.
