X-Rite i1 Publish Pro 3 Plus

X-Rite i1Publish Pro 3 Plus Bundle – HW-XRTEOPUBPLS

The X-Rite i1Publish Pro 3 Plus Bundle (HW-XRTEOPUBPLS) is a professional-level color calibration and profiling solution built for imaging, prepress, textile, and digital print environments that require the highest level of measurement accuracy and control.

This Plus configuration is specifically engineered for challenging substrates such as textiles, canvas, ceramics, vinyl, backlit films, and textured or glossy media. At the core of the system is the i1Pro 3 Plus spectrophotometer, featuring a large 8 mm measurement aperture and support for M3 polarization to reduce surface reflections and improve accuracy on difficult materials.

Paired with X-Rite’s i1Profiler software, users can create highly accurate ICC profiles for cameras, monitors, projectors, scanners, and RGB and CMYK+ printers. The workflow supports both guided, wizard-driven operation and advanced professional controls, making it suitable for intermediate users as well as experienced color specialists.

---

Why Choose X-Rite i1Publish Pro 3 Plus

• Designed for textured, specialty, and non-paper substrates
• 8 mm aperture delivers improved accuracy on uneven surfaces
• Polarization (M3) reduces glare on glossy and textile materials
• Supports transmissive profiling for backlit media and films
• Advanced control for CMYK black generation and separations
• Ideal for production, prepress, and fine art workflows

---

Applications

• Textile and fabric printing workflows
• Large format signage and display graphics
• Ceramic, vinyl, and specialty substrate printing
• Fine art and photographic production
• Prepress proofing and color validation
• Wide format and digital print environments

---

Key Features

• i1Pro 3 Plus spectrophotometer with 8 mm measurement aperture
• M0, M1, M2, and M3 measurement conditions
• Polarizing filter for reflective and textured materials
• Single-pass scanning with up to 400 measurements per second
• Transmissive profiling support for backlit applications
• i1Profiler software with basic and advanced user modes
• Supports RGB, CMYK, and CMYK+ printer configurations
• Includes ColorChecker Proof target for visual verification
• PANTONE Color Manager software for up-to-date color libraries

---

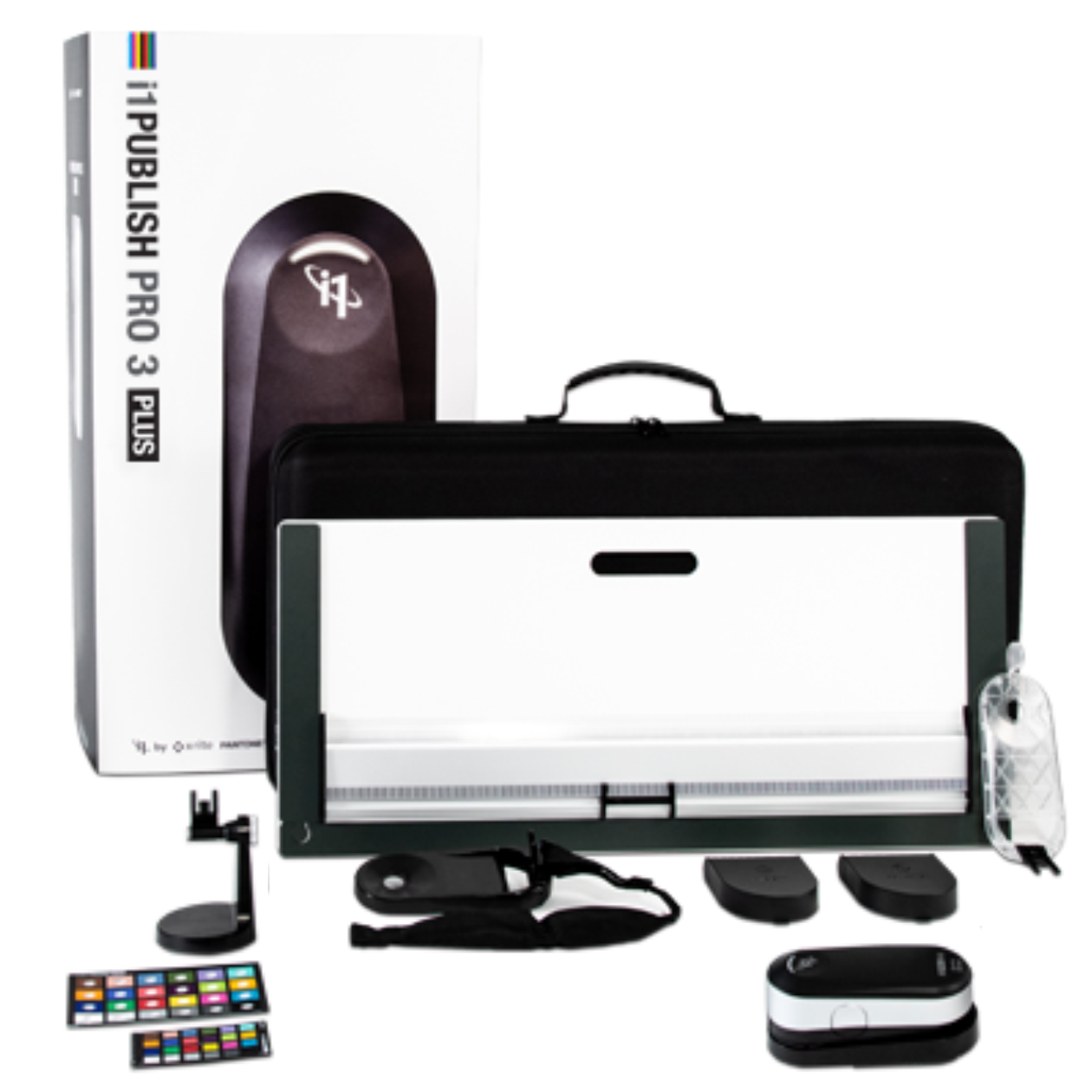

What’s Included

• i1Pro 3 Plus spectrophotometer
• Calibration plate
• Polarizing filter (M3)
• Ambient light measurement head
• Monitor holder
• Positioning target
• XL scanning ruler
• XL backing board
• USB cable
• i1Profiler v3.x software
• ColorChecker Camera Calibration software
• ColorChecker Classic Mini target
• ColorChecker Proof target
• PANTONE Color Manager software
• Soft-sided carrying case
• Limited 1-Year Manufacturer Warranty

---

Technical Specifications

Measurement & Performance

• Measurement aperture: 8 mm diameter
• Measurement geometry: 45°/0° ring illumination
• Measurement conditions: M0, M1, M2, M3
• Measurement frequency: Up to 400 measurements per second
• Spectral range: 380–730 nm
• Spectral reporting: 10 nm steps
• Inter-instrument agreement: Avg 0.3 dE00
• Short-term repeatability: 0.05 dE00 on white

Physical Specifications

• Device dimensions: 6.4 x 2.7 x 2.5 inches
• Device weight: 0.63 lb

Operating Requirements

• Supported OS:
  • Windows 7, 8, 8.1, 10
  • macOS 10.11 through 10.13
• Minimum memory: 2 GB
• Connectivity: USB powered
• Display resolution: 1024 x 768 or higher

Environmental

• Operating temperature: 50°F to 95°F
• Storage temperature: -4°F to 122°F
• Humidity: 30% to 85% RH non-condensing

Packaging and Shipping

• Approximate package dimensions: 29 x 15.2 x 7.7 inches
• Approximate shipping weight: 18.6 lb

---

Compatibility

• Monitors and displays including wide-gamut and high-brightness panels
• RGB, CMYK, and CMYK+ printers
• Cameras and scanners
• Optional compatibility with i1iO Generation 3 automated scanning table

---

Ideal For

• Textile and fabric print production
• High-end fine art printing
• Wide format print service providers
• Prepress and proofing departments
• Specialty and industrial print applications

Take Control of Color on Challenging Materials

The X-Rite i1Publish Pro 3 Plus Bundle is built for professionals who need accurate, repeatable color on substrates where standard measurement tools fall short.
