X-Rite i1iO

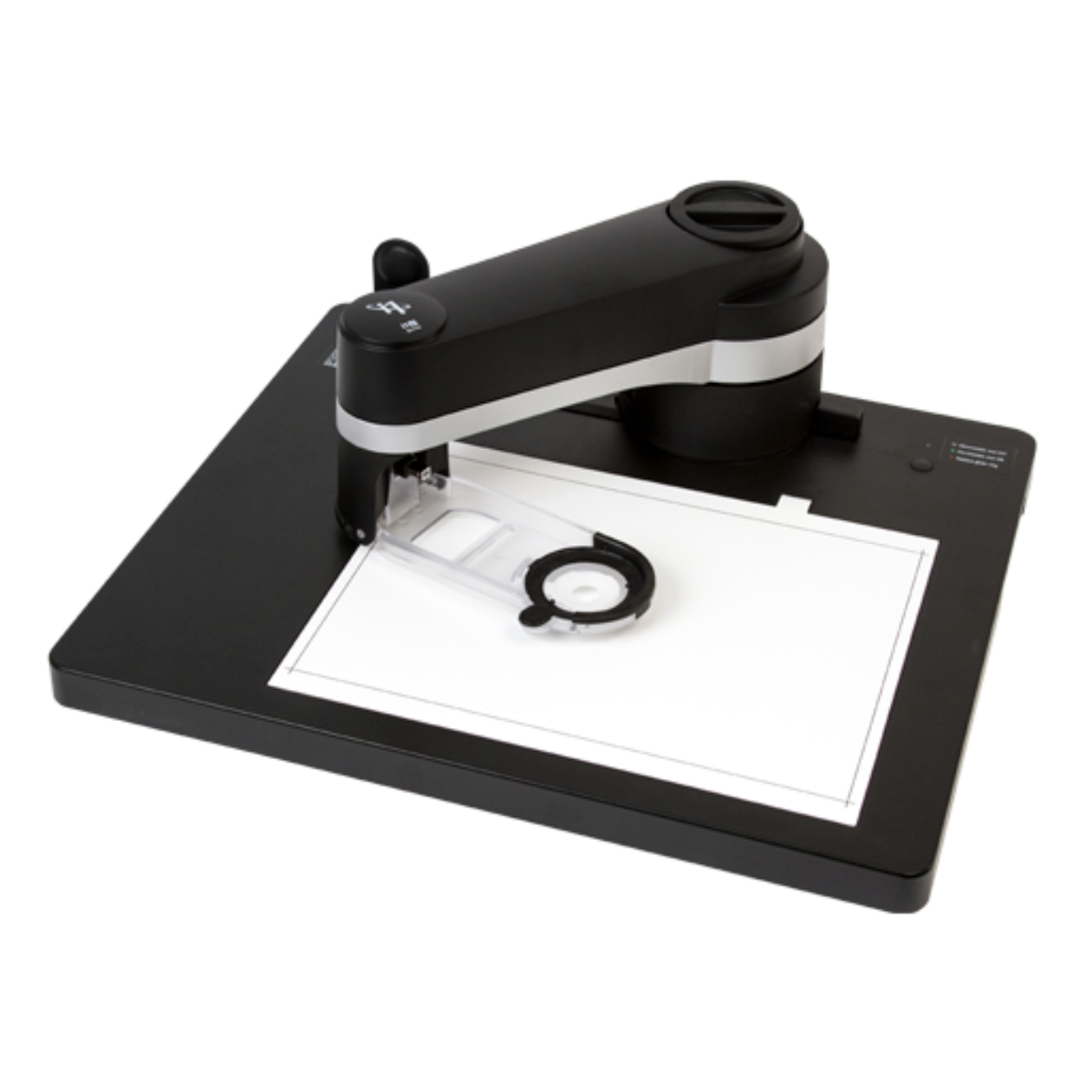

The X-Rite i1iO Automated Scanning Table (HW-XRTEOIOTB) is a third-generation robotic chart-reading system designed to eliminate the inefficiencies and inconsistencies of manual color measurement. Built for professional imaging, prepress, and production print environments, the i1iO automates test chart scanning to deliver faster, more accurate, and highly repeatable color profiles.

Designed to work seamlessly with the i1Pro 3 and i1Pro 3 Plus spectrophotometers, the i1iO scanning table enhances profiling speed while significantly reducing operator variability. Once the test chart is aligned, the robotic arm performs precise, single-pass measurements across hundreds of color patches, allowing operators to focus on other production tasks.

The i1iO supports reflective profiling on a wide range of substrates and, when used with the i1Pro 3 Plus, enables automated transmissive profiling for backlit films and signage applications. This makes it an essential tool for color-critical, high-volume workflows where consistency and efficiency matter.

---

Why Choose the X-Rite i1iO Automated Scanning Table

• Eliminates manual strip reading and operator error
• Increases profiling speed and production efficiency
• Delivers more consistent and repeatable ICC profiles
• Ideal for high-volume and color-critical environments
• Expands the capabilities of i1Pro 3 and i1Pro 3 Plus devices

---

Applications

• Automated printer profiling for RGB, CMYK, and CMYK+ workflows
• Prepress proofing and quality assurance
• Wide format and production print operations
• Textile, ceramic, vinyl, and specialty substrate profiling
• Backlit film and transmissive media profiling when paired with i1Pro 3 Plus

---

Key Features

• Hands-free automated chart reading
• Reads more than 500 color patches per minute under M0 conditions
• Supports substrates up to 0.39 inches thick
• Up to 1.30 inches thick with optional Z-axis spacer
• Single-pass scanning for faster profile creation
• Automatic calibration using integrated reference
• Basic and advanced software operation modes
• USB-powered connectivity

---

Compatibility

• Compatible with X-Rite i1Pro 3 spectrophotometer
• Compatible with X-Rite i1Pro 3 Plus spectrophotometer
• Supported operating systems:
  • Windows 8.1 and 10
  • macOS 10.13 through 10.15

---

What’s Included

• i1iO Automated Scanning Table
• Replacement glider ring
• Auto-rating power supply 100 to 240 VAC, 50 to 60 Hz
• Main power cable
• USB cable
• Quick start guide
• Limited 1-Year Manufacturer Warranty

---

Technical Specifications

Physical Specifications

• Table dimensions: 20.0 x 18.1 x 6.7 inches
• Weight: 9.9 lb without spectrophotometer

Scanning Performance

• Scanning area: 12.6 x 9.0 inches
• Minimum patch size in scanning mode: 0.63 x 0.63 inches
• Media thickness:
  • Up to 0.39 inches standard
  • Up to 1.30 inches with optional Z-axis spacer

System and Power

• Communication interface: USB 1.1
• Power requirements: 100 to 240 VAC, 50 to 60 Hz
• Available disk space: 2 GB
• Experience level: Intermediate to advanced

---

Ideal For

• Print service providers creating frequent ICC profiles
• Wide format and industrial print environments
• Textile and specialty substrate production
• Prepress departments and proofing labs
• Teams seeking faster, more reliable color measurement

Automate Your Color Profiling Workflow

The X-Rite i1iO Automated Scanning Table removes the guesswork from color measurement and helps production teams achieve consistent results with less time and waste.
