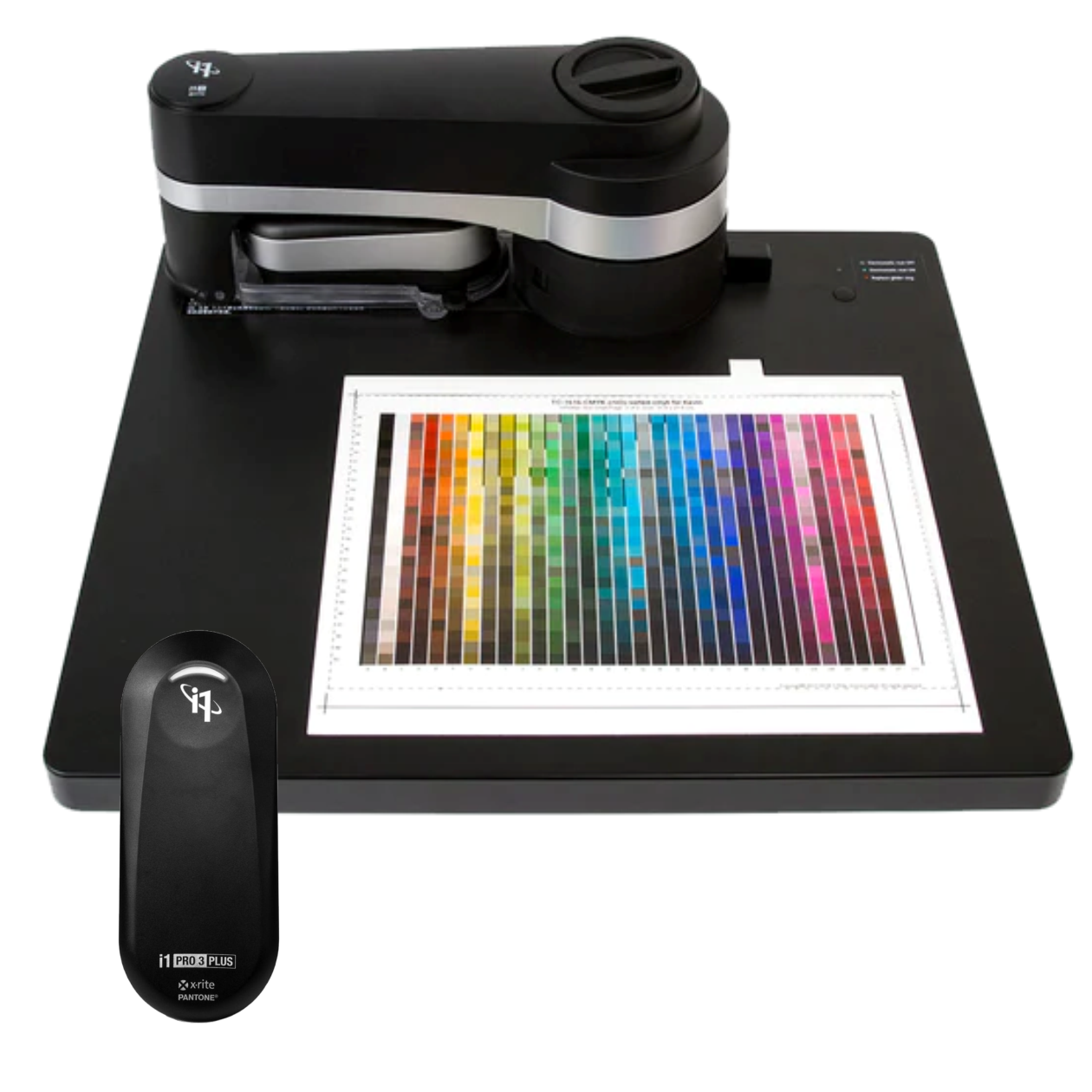

X-Rite i1iO & i1 Pro 3 Plus Bundle

The X-Rite i1iO and i1 Pro 3 Plus Bundle (HW-XRTEOIOPLS-BND) is a high-end, automated color profiling system designed for imaging, prepress, wide format, textile, and industrial print environments where accuracy and efficiency are critical.

This bundle pairs the i1Pro 3 Plus spectrophotometer with the i1iO Generation 3 automated scanning table, eliminating the variability and inefficiency of manual chart reading. By automating the measurement process, production teams can create more consistent ICC profiles, reduce operator error, and significantly speed up color profiling workflows.

Designed to accommodate both the i1Pro 3 and i1Pro 3 Plus, the i1iO scanning table supports reflective and transmissive measurements on a wide range of materials, including textiles, ceramics, vinyl, polybag materials, and backlit films. The result is reliable color accuracy across complex substrates and demanding production conditions.

---

Why Choose the i1iO and i1 Pro 3 Plus Bundle

• Fully automated, hands-free chart reading for consistent results
• Reduces human error in profiling and color validation
• Speeds up profiling with over 500 patches measured per minute
• Ideal for textured, glossy, and specialty substrates
• Supports reflective and transmissive profiling workflows
• Designed for high-volume, color-critical production environments

---

Applications

• Automated printer profiling for RGB, CMYK, and CMYK+ workflows
• Textile and fabric printing
• Large format signage and display graphics
• Ceramic, vinyl, and specialty substrate printing
• Backlit film and transmissive media profiling
• Prepress proofing and color quality assurance

---

Key Features

• i1Pro 3 Plus spectrophotometer with 8 mm aperture for textured materials
• i1iO Generation 3 automated scanning table
• Hands-free measurement for improved consistency
• Reads more than 500 patches per minute under M0 conditions
• Measures substrates up to 10 mm thick, up to 33 mm with optional spacer
• Supports automated transmissive profiling for backlit materials
• Single-pass scanning for faster profile creation
• Basic and advanced software operation modes

---

What’s Included

• i1Pro 3 Plus spectrophotometer
• i1iO Generation 3 automated scanning table
• Replacement glider ring
• Auto rating power supply 100 to 240 VAC, 50 to 60 Hz
• Main power cable
• USB cable
• Quick start guide
• Limited 1-Year Manufacturer Warranty

---

Technical Specifications

i1iO Automated Scanning Table

Physical

• Dimensions: 20 x 18.1 x 6.7 inches
• Weight: 9.9 lb without i1Pro device
• Shipped weight: 15.1 lb

Media Handling

• Maximum media thickness: 10 mm
• Up to 33 mm with optional Z-axis spacer
• Scanning area: 12.6 x 9 inches

Performance

• Minimum patch size: 0.63 x 0.63 inches
• Single-pass scanning supported
• Automatic calibration with integrated reference

Connectivity and Power

• USB powered connection
• Voltage: 100 to 240 VAC, 50 to 60 Hz

---

System Requirements

• Windows 8.1 or 10 with latest service packs
• macOS 10.13 through 10.15
• Minimum 2 GB available disk space
• Administrator rights required for installation

---

Ideal For

• Wide format and production print shops
• Textile and industrial print environments
• Prepress departments and proofing labs
• High-volume color profiling operations
• Teams standardizing color across multiple devices

Automate Color Accuracy Across Your Production Workflow

The X-Rite i1iO and i1 Pro 3 Plus Bundle is designed for operations that demand speed, precision, and consistency on challenging materials.
