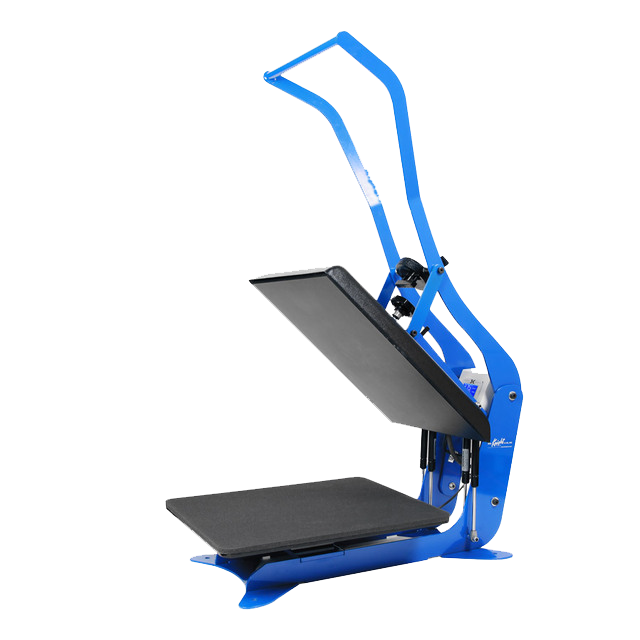

Digital Knight 16×20 Clam Auto Popup

Digital Knight 16×20 Clam Auto Popup DK20A

Digital Knight 16×20 Clam Auto Popup DK20A delivers semi-automatic performance in a compact clamshell design. This press automatically opens at the end of each timed cycle, reducing operator fatigue and preventing over-application. The built-in hover capability allows controlled curing without full clamping pressure. Designed for portability and precision, the DK20A is ideal for shops that want automation without air requirements.

Why Choose the Digital Knight 16×20 Clam Auto Popup DK20A

The DK20A combines the convenience of automatic release with the simplicity of a manual clamshell. At the end of each press cycle, the machine opens automatically, allowing operators to multitask with confidence. The hover feature adds flexibility for curing and specialty applications, all without the complexity of an air-operated system.

Designed for Space-Conscious Production

The DK20A opens with the rear of the heat platen lifting up and away from the lower table, providing better access than traditional clamshell presses. The rigid frame support allows garments to slide completely over the table with full drape space around and underneath the loading area. Interchangeable bottom tables are available for smaller pressing zones, making the press adaptable to different job types.

---

Auto-Release and Hover Capabilities

• Auto-Release Pop-Up opens the press automatically at the end of the digital timer cycle
• Hover Feature allows the platen to remain suspended above the substrate for curing or drying
• No air compressor required

---

Ideal Applications

• DTF transfers
• HTV applications
• Sublimation transfers
• Small to mid-size garment graphics
• Shops needing automation without added infrastructure

---

Key Features

• 16 x 20 inch clamshell heat platen
• Auto-release pop-up mechanism
• Hover mode for controlled curing
• Wide-opening rear-lift platen design
• All-Thread table loading design
• Fully digital temperature control from 32°F to 600°F
• Automatic digital timer with dual pre-press timer
• Digital pressure bar graph for pressure reference
• 70 programmable presets
• SuperCoil-Microwinding heater technology for even heat
• Solid steel welded industrial framework
• Instantly interchangeable and rotatable tables
• Temperature readout accuracy within ±2°F
• User-selectable end-of-cycle alarms
• Records number of pressing cycles completed
• Non-stick coated 3/4 inch thick heat platen

---

Specifications

• Platen Size: 16 x 20 inches
• Electrical: 1800W / 15A / 110V
• Shipping Dimensions (L x W x H): 36 x 17 x 16 inches
• Counter Footprint (D x W): 26 x 14 inches
• Unit Weight: 103 lbs

220V option available for international installations.

---

Warranty

• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1-year warranty on parts
• Free lifetime technical support

Semi-Automatic Performance Without Air

If you want faster production and consistent results without adding an air compressor, the Digital Knight 16×20 Clam Auto Popup DK20A is the ideal solution. Contact Big Systems to confirm availability and ensure this press fits your production goals.
