Epson SureColor S7170 Print Cut Edition 64-Inch Solvent Printer

A Complete Print-and-Cut Solution Built for Growth

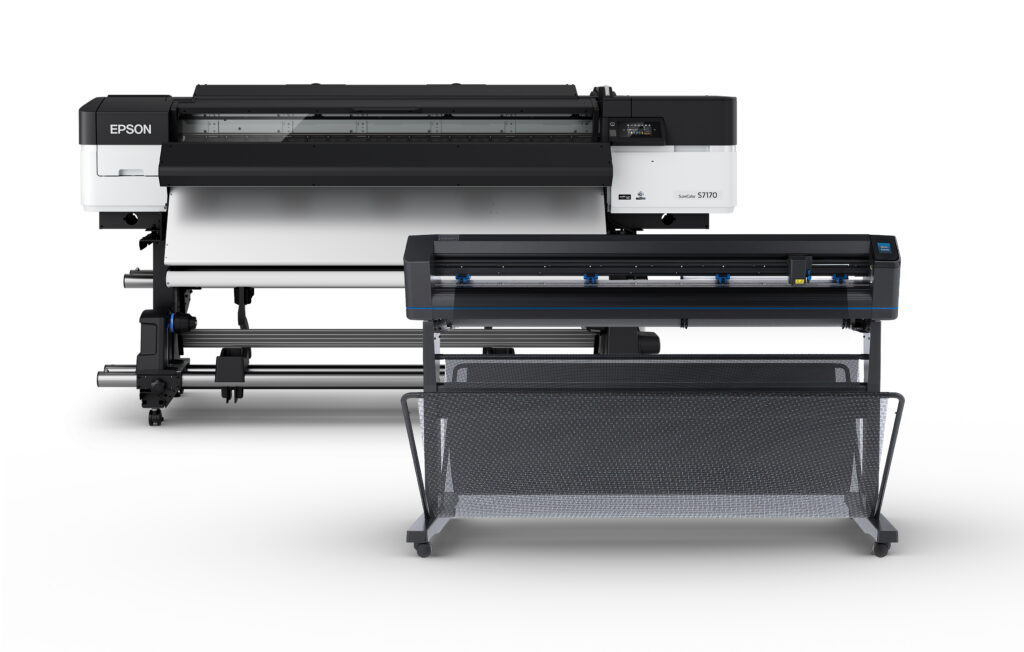

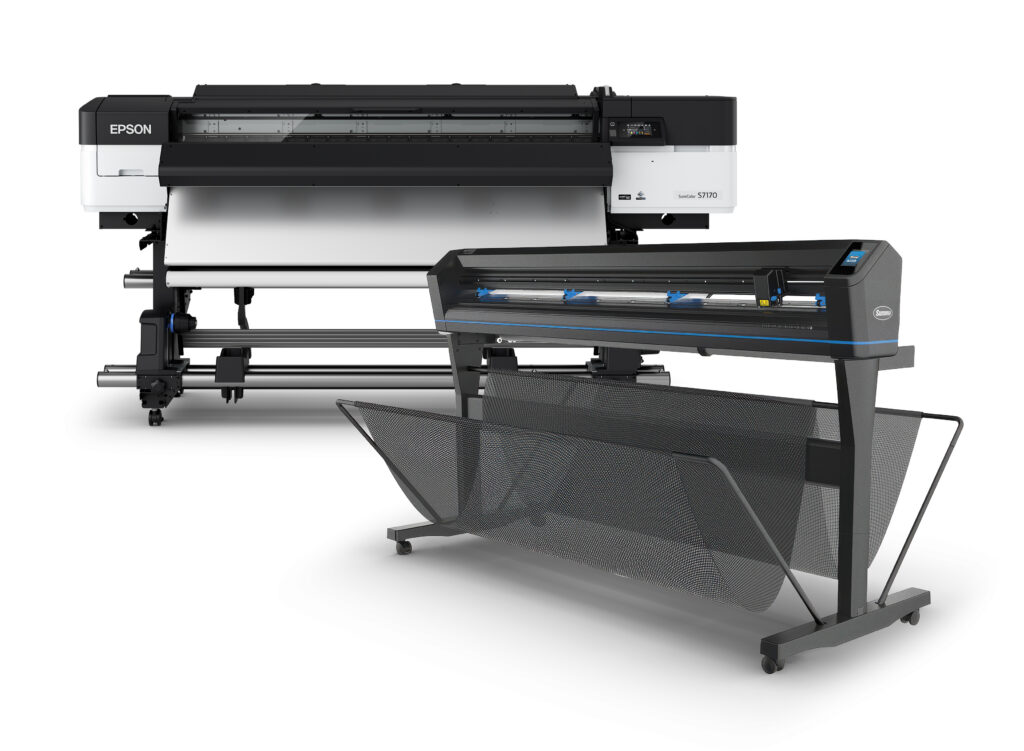

Bring printing and cutting together in one streamlined workflow with the Epson SureColor S7170 Print Cut Edition. This complete solution combines the 64-inch SureColor S7170 solvent printer, Summa S1 D140 cutter and professional workflow software in one package designed for sign shops and graphics producers that want to increase productivity and expand their capabilities.

The SureColor S7170 uses Epson’s four-color UltraChrome GS3 eco-solvent ink technology and a 1.33-inch PrecisionCore Micro TFP printhead to produce detailed, vivid and repeatable graphics while supporting faster production than the previous generation.

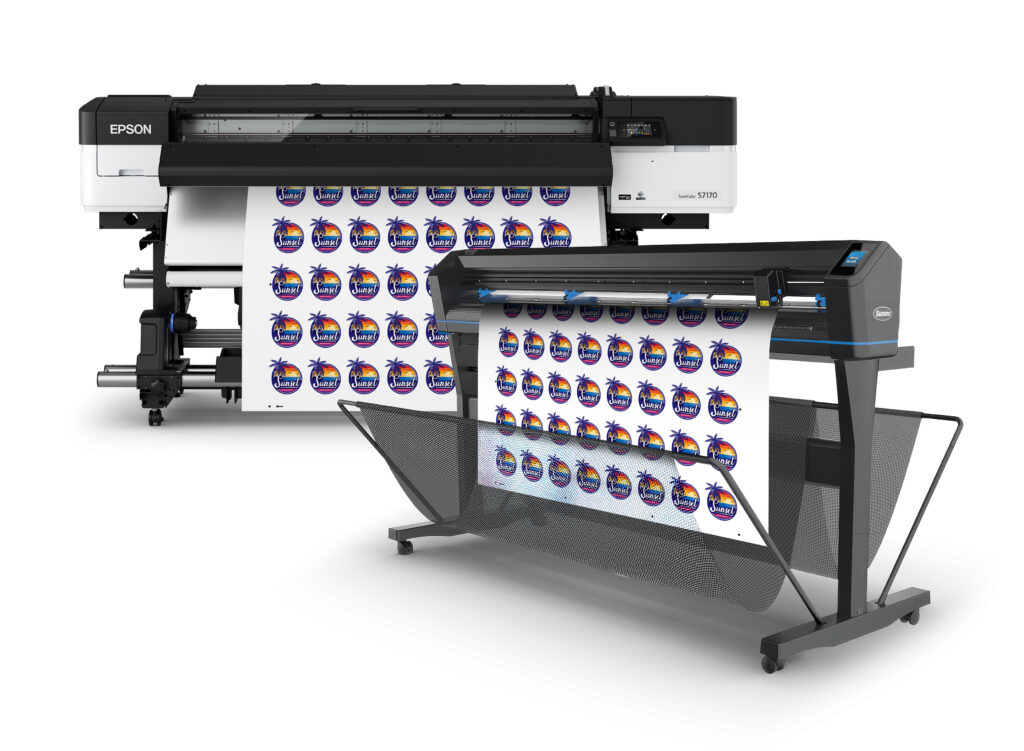

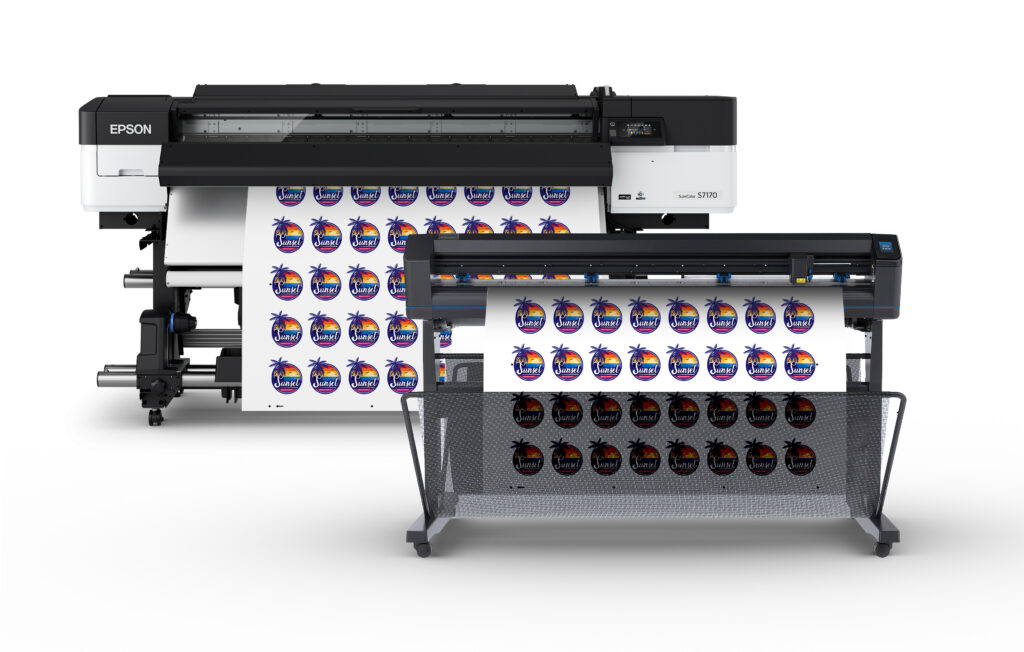

Pairing the printer with the Summa S1 D140 cutter creates an efficient workflow for contour-cut graphics, decals, stickers and other print-and-cut applications.

From vehicle graphics and signs to banners, canvas and adhesive vinyl, the Epson SureColor S7170 Print Cut Edition gives wide-format businesses a flexible production platform for bringing more work in-house.

Why Choose the Epson SureColor S7170 Print Cut Edition?

Complete Print-and-Cut Package: Get the primary hardware and software required to build a professional print-and-cut workflow in one solution. The package includes the SureColor S7170 printer, Summa S1 D140 cutter, Epson Edge Print PRO and a prepaid one-year subscription to ONYX Go Plus.

Reliable Media Handling:Epson designed the S7170 around the proven media feed and take-up platform used in the SureColor S40600. Precise media movement helps produce accurate, cut-ready graphics and dependable output.

Outstanding Image Quality: Epson Precision Dot Technology, UltraChrome GS3 ink and strategic temperature sensor placement work together to deliver detailed graphics and consistent, repeatable color.

Faster Production: A latest-generation 1.33-inch PrecisionCore Micro TFP printhead provides increased print productivity compared with the previous generation.

Professional Contour Cutting: The included Summa S1 D140 uses drag-knife cutting technology with up to 600 grams of knife pressure and speeds up to 44 inches per second diagonally.

Broad Media Compatibility: Produce graphics on vinyl, banner material, canvas, paper and other compatible media, giving your business the flexibility to serve a wider range of customers and applications.

Nozzle Verification Technology: Epson Nozzle Verification Technology detects clogged nozzles and alerts the operator, helping support consistent output and stable production.

High-Capacity Ink Packs: The SureColor S7170 uses 800 mL UltraChrome GS3 eco-solvent ink packs. Epson’s ink pack design reduces the frequency of ink replacement while using less plastic than its previous cartridge format.

Professional RIP Software Included: Epson Edge Print PRO and ONYX Go Plus provide professional tools for managing print-and-cut workflows. Epson Cloud Solution PORT also provides browser-based printer monitoring when connected to the internet.

Applications

The Epson SureColor S7170 Print Cut Edition supports a broad range of commercial wide-format applications, including:

• Vehicle wraps and vehicle graphics
• Stickers and decals
• Indoor signage
• Outdoor signage
• Window graphics
• Wall graphics
• Banners
• Point-of-purchase graphics
• Retail displays
• Canvas prints
• Promotional graphics
• Adhesive vinyl graphics
• Contour-cut graphics
• General sign production

Epson SureColor S7170 Printer Specifications

Specification	Details
Printing Technology	PrecisionCore Micro TFP printhead
Nozzle Technology	Nozzle Verification Technology
Ink Type	UltraChrome GS3 eco-solvent
Ink Colors	Cyan, Magenta, Yellow, Black
Ink Pack Capacity	800 mL
Maximum Resolution	1200 x 1200 dpi
Minimum Droplet Size	4.3 picoliters
Maximum Media Width	64 inches
Supported Roll Width	11.81 to 64 inches
Maximum Roll Diameter	9.84 inches
Maximum Roll Weight	99.21 lb
Maximum Media Thickness	Less than 1 mm
Media Path	Single roll
Media Feed	Friction feed
Control Panel	4.3-inch optical touch color LCD
Connectivity	SuperSpeed USB 3.0 and Ethernet
Printer Memory	1 GB

Summa S1 D140 Cutter Specifications

Specification	Details
Cutter Model	Summa S1 D140
Cutting Technology	Drag knife
Supported Media Width	7.4 to 59 inches
Standard Maximum Working Width	54.5 inches
Oversized Maximum Working Width	56.9 inches
Maximum Oversized Length	164 feet
Pinch Rollers	4
Maximum Speed	Up to 44 inches per second diagonal
Maximum Acceleration	Up to 3 G diagonal
Knife Pressure	0 to 600 grams
Accuracy	0.2% of movement or 0.010 inch, whichever is greater
Connectivity	Ethernet, USB and Wi-Fi
Included Software	Summa GoSign and Summa Cutter Control

Dimensions and Weight

Printer Dimensions: 103.15″ W x 38.94″ D x 52.68″ H

Printer Weight: 633 lb

Summa S1 D140 Cutter Dimensions: 69.5″ L x 27.7″ W x 43.8″ H

Power Requirements

Voltage: AC 100 to 120 V / 200 to 240 V, 50/60 Hz

Operating Power Consumption:

• Printer: approximately 1100 W
• Drying fan: approximately 45 W

Included Software

Epson Edge Print PRO: Epson Edge Print PRO provides a professional RIP environment designed to simplify production and take advantage of Epson printer capabilities.

ONYX Go Plus: The package includes a prepaid one-year ONYX Go Plus subscription for professional print-and-cut workflow management.

Summa GoSign: Summa GoSign software supports cutting workflow preparation and operation of the included Summa S1 D140 cutter.

Epson Cloud Solution PORT: Epson Cloud Solution PORT provides remote printer monitoring through a supported web browser and active internet connection.

What’s Included

The Epson SureColor S7170 Print Cut Edition includes:

• Epson SureColor S7170 printer
• Summa S1 D140 cutter
• Drying fan
• Epson Edge Print PRO RIP
• ONYX Go Plus RIP, prepaid one-year subscription
• Summa GoSign software
• Summa Cutter Control
• Two power cords
• Maintenance parts kit
• Wiper unit
• Flushing pad
• Two air filters
• Waste ink bottle
• Ink cleaner
• Cleaning sticks
• User guide kit

Frequently Asked Questions

What is included with the Epson SureColor S7170 Print Cut Edition?

The Epson SureColor S7170 Print Cut Edition includes the 64-inch SureColor S7170 solvent printer, Summa S1 D140 cutter, Epson Edge Print PRO, a prepaid one-year ONYX Go Plus subscription, Summa cutting software and supporting printer accessories.

What can the Epson SureColor S7170 Print Cut Edition produce?

The system can produce vehicle graphics, stickers, decals, indoor and outdoor signs, banners, canvas prints, adhesive vinyl graphics, retail graphics and other wide-format print-and-cut applications.

What type of ink does the Epson SureColor S7170 use?

The SureColor S7170 uses Epson UltraChrome GS3 eco-solvent ink in Cyan, Magenta, Yellow and Black. Each color comes in an 800 mL ink pack.

How wide can the Epson SureColor S7170 print?

The printer supports roll media from 11.81 inches through 64 inches wide.

What cutter comes with the Epson SureColor S7170 Print Cut Edition?

The package includes the Summa S1 D140 drag-knife cutter. It supports media from 7.4 to 59 inches wide and cutting speeds up to 44 inches per second diagonally.

Build a More Productive Print-and-Cut Workflow

The Epson SureColor S7170 Print Cut Edition gives sign and graphics businesses a complete production platform for printing, contour cutting and expanding application capabilities. Big Systems can help you evaluate the printer, cutter, RIP software, media and workflow requirements together so your investment fits the way your shop actually produces work. Talk with a Big Systems specialist about the Epson SureColor S7170 Print Cut Edition.
