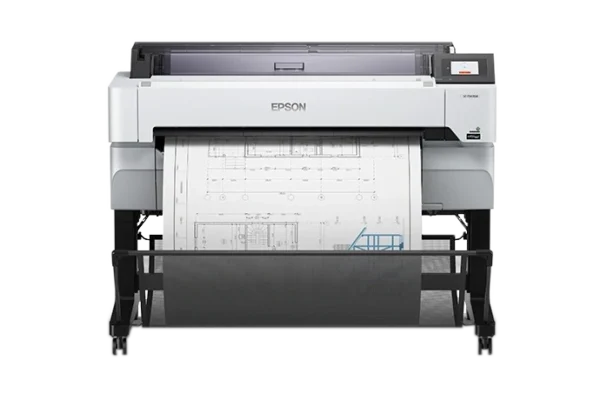

Epson SureColor T5470M 36″ MFP Printer w/Scanner

Epson SureColor T5470M 36″ Wide-Format Printer and Scanner

The Epson SureColor T5470M 36″ Wide-Format Printer and Scanner delivers a powerful all-in-one solution for modern workgroups that need to print, scan, and copy large-format documents quickly and accurately. Combining Epson’s award-winning print technology with an integrated 36-inch scanner, the T5470M enhances collaboration, efficiency, and workflow flexibility—all within a sleek, space-saving design.

Producing A1/D-size prints in as fast as 22 seconds, the SureColor T5470M uses Epson’s PrecisionCore® MicroTFP® printhead and UltraChrome® XD2 pigment inks to create sharp lines, rich color, and smudge-resistant results. The built-in CIS scanner allows users to scan directly to network folders, USB drives, or email, supporting multiple file formats for fast digital sharing. With Wi-Fi®, Wi-Fi Direct®, and Ethernet connectivity, it fits seamlessly into office, studio, and jobsite environments.

---

Why Choose the Epson SureColor T5470M

• True multifunction performance — print, scan, and copy up to 36 inches wide using an integrated scanner with no additional footprint.
• Fast, precise printing — A1/D-size prints in as little as 22 seconds for high-volume technical and CAD applications.
• Superior image clarity — PrecisionCore MicroTFP printhead ensures crisp lines, fine text, and consistent color accuracy.
• Durable, high-quality output — UltraChrome XD2 pigment inks deliver water-resistant, archival-quality prints for indoor or field use.
• Seamless connectivity — Built-in Wi-Fi®, Wi-Fi Direct®, and USB Direct printing for flexible, router-free operation.
• Intuitive operation — Easy-to-use 4.3″ touchscreen with scan-to-network, scan-to-email, and encrypted PDF support.
• Compact and efficient design — Combines print and scan functionality in one footprint-saving system.
• Industry-leading reliability — Permanent printhead with Nozzle Verification Technology and Epson’s 1-year limited on-site warranty.
• Flexible media handling — Handles sheets or rolls up to 36″ wide with borderless printing capability.

---

Applications

The SureColor T5470M is ideal for technical and creative professionals requiring fast, multifunction capabilities in a compact package:

• CAD, GIS, and architectural drawings
• Engineering blueprints and design renderings
• Construction documentation and reprographics
• Maps, charts, and large-format plans
• Corporate and educational posters
• Scanning and archiving legacy prints

---

Key Features

• Integrated 36″ CIS scanner: Enables scan-to-network, scan-to-email, and scan-to-USB workflows; supports PDF, TIFF, and JPEG file formats.
• Fast, high-quality printing: Produces A1/D-size prints in as little as 22 seconds with PrecisionCore MicroTFP printhead.
• UltraChrome XD2 pigment inks: Four-color (C, M, Y, K) system provides vibrant color, deep blacks, and water resistance.
• Smart media handling: Supports both sheet-fed and roll-fed media up to 36″ wide and 11.8 mil thick.
• Borderless printing: Print posters and graphics edge-to-edge at widths up to 36″.
• Compact, multifunction design: Integrated printer, scanner, and copier without increasing footprint.
• Mobile printing flexibility: Print directly from tablets, smartphones, or USB thumb drives.
• Wireless and wired options: SuperSpeed USB 3.0, Gigabit Ethernet, Wi-Fi®, and Wi-Fi Direct®.
• Eco-friendly operation: ENERGY STAR® qualified and RoHS compliant for sustainable performance.
• Low noise level: Quiet operation at approximately 50 dB(A)—ideal for office environments.

---

What’s In The Box

• Epson SureColor T5470M Printer
• Printer Stand
• Full Set of Initial UltraChrome XD2 Ink Cartridges (110 mL each: C, M, Y, K)
• Start Here Poster
• User Guide
• AC Power Cable

Note: Media not included.

---

Technical Specifications

• Maximum Print Width: 36 inches
• Printing Technology: PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
• Print Resolution: 2400 × 1200 dpi
• Print Speed: A1/D-size print in 22 seconds
• Minimum Ink Droplet Size: 4 picoliters with variable droplet technology
• Nozzle Configuration: 800 nozzles × 4 channels
• Ink Type: UltraChrome XD2 pigment inks (C, M, Y, K)
• Ink Cartridge Options: 110 mL, 350 mL, 700 mL
• Scan Technology: CIS with RGB filters
• Scan Area: Up to 36″ wide, 100 ft long
• Scan Speed: Up to 7.5 ips (mono) / 4.5 ips (color)
• Supported File Types: PDF, TIFF, JPEG
• Copy/Scan Modes: Text/Line Drawing, Blueprint, Poster, Watercolor Drawing, and more
• Display: 4.3″ color touchscreen
• Interfaces: USB 3.0, USB Direct, Ethernet, Wi-Fi®, Wi-Fi Direct®
• Media Handling: Single sheet, roll-to-roll, 2″ or 3″ core adapters
• Dimensions (W × D × H): 55″ × 28″ × 42″ (with stand)
• Weight: 168 lb (76 kg)
• Power Consumption: 38 W printing, 13 W ready, 1.3 W sleep
• Operating Temperature: 50–95°F (10–35°C)
• Humidity: 20–80% RH (no condensation)
• Noise Level: 50 dB(A) printing
• Warranty: 1-year limited next-business-day on-site repair

---

Eco Features

• ENERGY STAR® qualified
• RoHS compliant
• Recyclable product
• SmartWay® Transport Partner certified
• Designed for reduced waste and energy consumption
