Foster On-A-Roll Lifter Universal

Foster On-A-Roll Lifter Universal F61580

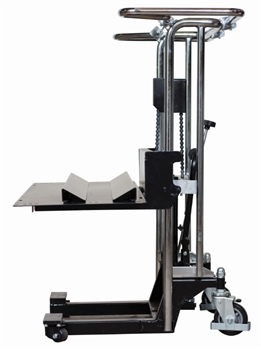

The Foster On-A-Roll Lifter Universal F61580 is a heavy-duty, manual hydraulic media lifter engineered for safe, efficient, single-operator handling of large and heavy print media rolls. Designed with adjustable roll wedges and a removable roll ramp, this lifter is compatible with most wide format printers and flatbed roll-to-roll cutters, making it an essential material handling solution for production print environments.

The flat roll loading tray is specifically designed to fit inside the roll loading openings of many industrial printers, including AGFA Anapurna, Mira, Tauro, and Titan models. Multiple roll wedge mounting positions allow operators to precisely align rolls for smooth loading and unloading, while the removable roll ramp prevents interference with dancer bars and other printer frame components.

Built for performance and safety, the F61580 allows one operator to lift and transport rolls weighing up to 660 pounds and measuring up to 16 feet 5 inches wide. A simple hydraulic foot pump enables smooth, controlled lifting with minimal effort, reducing strain and improving productivity.

Why Choose the Foster On-A-Roll Lifter Universal F61580

The Foster On-A-Roll Lifter Universal F61580 is built for production environments where large, heavy media rolls must be moved safely, accurately, and efficiently. Its flat roll loading tray, adjustable roll wedges, and removable roll ramp allow compatibility with most wide format printers and flatbed roll-to-roll cutters. Designed for one-person operation, this lifter reduces labor demands while minimizing material damage and operator strain.

Rugged construction, a manual hydraulic foot pump, and integrated safety straps make this lifter a long-term solution for high-volume print, sign, and industrial shops.

Applications

• Wide format printing operations
• Flatbed and roll-to-roll printer loading
• Sign and graphics production
• Manufacturing and industrial media handling
• Engineering and technical print departments
• Shops handling large or heavy rolls of print media, film, or material

Key Features

• Adjustable roll wedges for precise roll positioning
• Removable roll ramp to prevent interference with dancer bars and printer frames
• Flat roll loading tray fits inside the opening of most printers
• Manual hydraulic foot pump for smooth, effortless lifting
• Nylon safety straps allow secure, single-operator handling
• One-person operation reduces labor and improves efficiency
• Heavy-duty construction designed for long service life
• Removable ramp stores conveniently on the upright frame when not in use

Compatibility

The flat roll loading tray is designed to integrate with a wide range of wide format printers and roll-to-roll flatbed cutters, including compatibility with AGFA Anapurna, Mira, Tauro, and Titan models. Adjustable roll wedge mounting holes allow operators to fine-tune positioning for different printer loading configurations.

Specifications

• Model Number: F61580
• Roll Weight Capacity: 660 lbs
• Maximum Roll Width: 197 inches (16 ft 5 in)
• Maximum Roll Diameter: 15.75 inches
• Lift Height: 33.5 inches

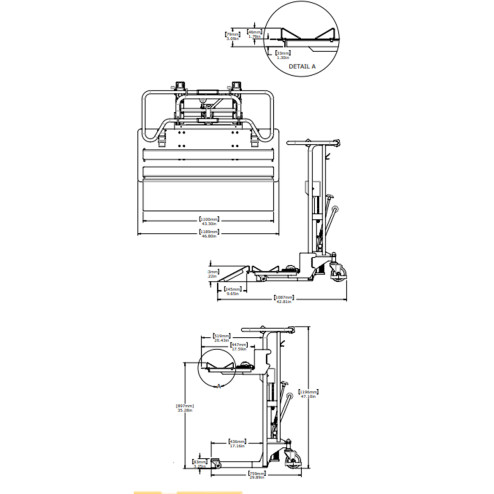

• Overall Dimensions (W x D x H): 47.25 in x 43.3 in x 47.25 in
• Media Lifter Weight: 265 lbs
• Bottom Fork Clearance: 3.5 inches

Optional Accessories

• Model 63161 Roller Platform: Designed to allow operators to feed rolls directly into printers from the lifter, improving loading efficiency and control.

Warranty

• 90-day warranty on batteries
• 2-year warranty on hydraulics, casters, and media tray
• 5-year warranty on cross bars and frame

Get the Right Media Handling Solution for Your Shop

The Foster On-A-Roll Lifter Universal is an indispensable material handling solution for any shop managing oversized or heavy media rolls. It delivers safer handling, faster loading, and long-term durability. Backed by strong warranties and engineered for real-world production environments, this lifter helps shops reduce damage, save time, and improve workflow efficiency.
