Graphtec 1.5mm SuperSteel 45 Blade 2-pack for red top holder
Price:$99.50

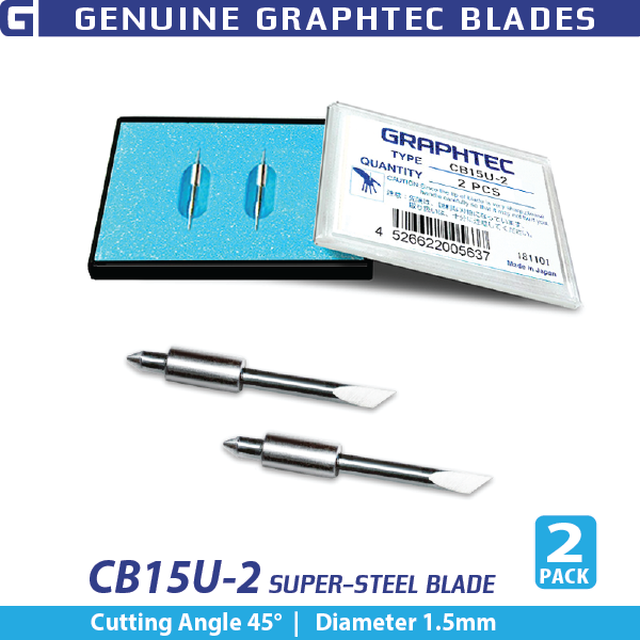

GRAPHTEC 1.5mm Super-Steel Blade 45° CB15U-2 (2/pack) for PHP33/35-CB15N-HS Blade holder
The Graphtec CB15U-2 1.5mm Super-Steel Blade 45° is built for cutting thicker, more demanding materials that require added blade strength and stability. With a 1.5mm diameter and a 45-degree cutting angle, this blade is optimized for laminates, smart device screen protection media, automotive paint protection film, and other rigid or specialty films.
The larger blade diameter allows deeper, more controlled cuts compared to standard 0.9mm blades, reducing edge lift and improving finish quality on tougher substrates. Sold as a 2-pack, the CB15U-2 is ideal for shops that need dependable performance for specialty applications without overstocking consumables.
Why Choose Graphtec CB15U Super-Steel Blades
Graphtec CB15U blades are the preferred choice when cutting laminated, rigid, or specialty materials. Their Super-Steel construction, thicker diameter, and compatibility with red-tip holders provide accuracy and durability where standard blades fall short. For advanced graphics and protective film applications, the CB15U-2 delivers confidence and control.
Applications
- Laminates and laminated graphics
- Smart device and screen protection films
- Automotive paint protection film (PPF)
- Rigid or thicker specialty films
- Exterior signage and graphics
- Temporary displays
Key Features
- 45° cutting angle for thicker media
- 1.5mm blade diameter for added cutting strength
- Super-Steel construction for long blade life
- Designed for materials from 0.25mm to 0.5mm thick
- Clean, controlled cuts on rigid and laminated media
- Genuine Graphtec replacement blade
Compatibility
Compatible Graphtec Cutters
- Graphtec FC Series
- Graphtec FCX Series
- Graphtec CE Series
Required Blade Holders
- PHP33-CB15N-HS (red-tip)
- PHP35-CB15N-HS (red-tip)
Note: Not compatible with CB09 blue-tip blade holders.
Technical Specifications
- Product Name: Graphtec Super-Steel Blade for Thick Media
- Part Number: CB15U-2
- Blade Type: Cutting blade
- Cutting Angle: 45°
- Blade Diameter: 1.5mm
- Supported Material Thickness: 0.25 to 0.5mm
- Material: Super-Steel
- Quantity: 2 blades per pack
- Approximate Package Weight: 0.02 lb
- Approximate Package Dimensions: 3.0 x 2.0 x 0.5 inches
Cut Thicker Media With Precision
Equip your Graphtec cutter for laminates, PPF, and rigid films with genuine Super-Steel blades built for demanding applications.
CLICK HERE > To view blade & blade holder compatibility by Graphtec model
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 2 × 3 × 0.5 in |
