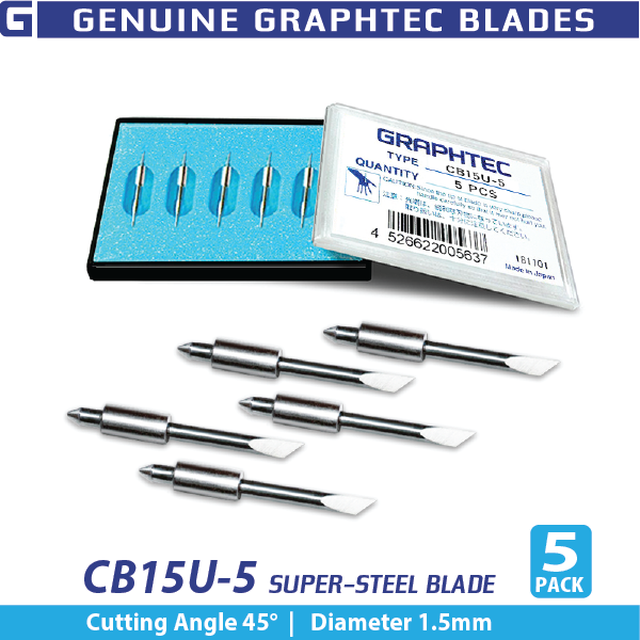

Graphtec CB15U-5 1.5mm Super-Steel Blade 45° 5-pack
Price:$230.50
GRAPHTEC 1.5mm Super-Steel Blade 45° CB15U-5 (5/pack) for PHP33/35-CB15N-HS Blade holder
The Graphtec CB15U-5 1.5mm Super-Steel Blade 45° is engineered for applications that require greater blade strength and cutting depth than standard 0.9mm blades can provide. With a 1.5mm diameter and a 45-degree cutting angle, this blade is optimized for thicker films, laminated materials, and rigid specialty media commonly used in advanced graphics and industrial applications.
This blade requires a CB15-style red-tip blade holder, which provides the necessary support and blade exposure for thicker media. It is not intended for use with standard CB09 blue-tip blade holders. Sold in a convenient 5-pack, the CB15U-5 is ideal for production environments that want reliable performance, reduced blade change downtime, and consistent results across longer runs.
Why Choose Graphtec CB15U Super-Steel Blades
The Graphtec CB15U blade series is designed for users who need to cut beyond standard vinyl. Its larger diameter, durable Super-Steel construction, and compatibility with red-tip holders make it the go-to solution for thicker, laminated, and specialty materials. For shops pushing into higher-value applications, the CB15U-5 provides accuracy, control, and confidence.
Applications
- Laminates and laminated graphics
- Smart device and screen protection films
- Automotive paint protection film (PPF)
- High-intensity reflective sheeting
- Rigid or thicker specialty films
- Industrial and specialty media
Key Features
- 45° cutting angle for thicker media
- 1.5mm blade diameter for added strength
- Super-Steel construction for long blade life
- Designed for materials from 0.25mm to 0.5mm thick
- Clean, controlled cuts on rigid and laminated media
- Genuine Graphtec replacement blade
Compatibility
Compatible Graphtec Cutters
- Graphtec FC Series
- Graphtec FCX Series
- Graphtec CE Series
Required Blade Holders
- CB15 red-tip blade holders
- PHP33-CB15N-HS
- PHP35-CB15N-HS
Note: This blade is not compatible with CB09 blue-tip blade holders.
Technical Specifications
- Product Name: Graphtec Super-Steel Blade for Thick Media
- Part Number: CB15U-5
- Blade Type: Cutting blade
- Cutting Angle: 45°
- Blade Diameter: 1.5mm
- Supported Material Thickness: 0.25 to 0.5mm
- Material: Super-Steel
- Quantity: 5 blades per pack
- Approximate Package Weight: 0.18–0.22 lb
- Approximate Package Dimensions: 5.12 x 3.15 x 1.97 inches
Cut Thicker Media With Precision
Upgrade your Graphtec cutter for laminates, PPF, and rigid films with genuine Super-Steel blades designed for demanding applications.
CLICK HERE > To view blade & blade holder compatibility by Graphtec model
Additional information
| Weight | 0.22 lbs |
|---|---|
| Dimensions | 3.15 × 5.12 × 1.97 in |
