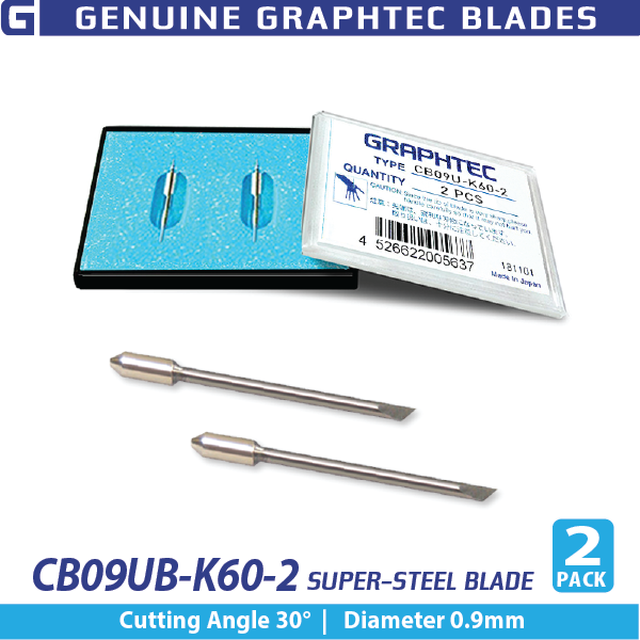

Graphtec Super-Steel Blade 30° 0.9mm CB09UB-K60
Price:$77.50
Graphtec Super-Steel Blade 30/ 0.9mm cb09ub-k60-2 for Graphtec FC, FCX, CE Series
The Graphtec Super-Steel Blade 30° 0.9mm (CB09UB-K60-2) is a high-precision cutting blade designed specifically for thin materials such as window tint film, light heat transfer materials, and specialty films up to 0.25 mm thick. Manufactured from Graphtec’s supersteel material, this blade provides extended durability, consistent cutting accuracy, and smooth performance for professional cutting applications.
Although often referred to as a 60-degree blade, the CB09UB-K60 features a true 30-degree cutting angle. This flatter cutting angle is ideal for thin and delicate materials, allowing the blade to glide cleanly through film without tearing, lifting, or edge distortion. It is particularly well suited for window tinting applications where precision and surface finish are critical. The 0.9 mm blade diameter ensures compatibility with standard Graphtec blade holders, including the CB09 blue-tip blade holder and the heavy-duty brass-tip CB09 blade holder.
Why Choose Graphtec Super-Steel Blades
Graphtec Super-Steel Blades are engineered to meet the precision standards of professional cutting environments. The Graphtec Super-Steel Blade 30° 0.9mm CB09UB-K60 offers excellent edge quality, long service life, and predictable performance when cutting thin films. For shops that rely on consistent results and minimal blade changes, this blade is a trusted solution.
Applications
- Window tint film
- Thin film materials up to 0.25 mm
- Automotive tint applications
- Decorative and specialty films
- Light heat transfer materials
- Temporary display graphics
Key Features
- 30-degree cutting angle optimized for thin materials
- 0.9 mm blade diameter for precise cutting
- Supersteel construction for extended blade life
- Designed for window tint and thin film applications
- Clean, accurate cuts with minimal edge lift
- Compatible with standard Graphtec CB09 blade holders
Compatibility
Compatible with the following Graphtec cutter series:
- Graphtec FC Series
- Graphtec FCX Series
- Graphtec CE Series
Works with CB09 blue-tip blade holders and heavy-duty brass-tip CB09 blade holders.
Technical Specifications
- Product Name: Graphtec Super-Steel Blade
- Part Number: CB09UB-K60-2
- Cutting Angle: 30°
- Blade Diameter: 0.9 mm
- Maximum Material Thickness: Up to 0.25 mm (9 mil)
- Package Quantity: 2 blades
- Approximate Weight: 0.634 oz (17.97 g)
- Package Dimensions: 2.36 x 1.06 x 0.75 inches
- Material: Super steel
Precision Cutting for Thin Film Applications
Maintain clean edges and consistent results with genuine Graphtec Super-Steel blades engineered for thin media.
Additional information
| Weight | 0.634 lbs |
|---|---|
| Dimensions | 1.06 × 2.36 × 0.75 in |
