HP 126-in Dual Roll Kit
Price:$15,660.00
HP 126-in Dual Roll Kit for HP Latex 2700 Series, FS50, FS60, FS70 W
HP 126-in Dual Roll Kit is designed to maximize production efficiency by enabling dual roll printing on compatible HP Latex printers. This upgrade allows operators to run two rolls simultaneously, significantly increasing throughput while reducing manual intervention.
Built for high-volume print environments, the system supports rolls up to 63 inches wide and up to 154 pounds, making it ideal for continuous production across a wide range of applications. By increasing unattended printing time, print providers can keep jobs moving while freeing up operators for other tasks.
The included dual roll spindles, central supports, and adjustable shims ensure proper alignment and compatibility across multiple HP Latex platforms. This flexibility allows seamless integration into existing production setups while maintaining reliable media handling and consistent output.
Why Choose HP 126-in Dual Roll Kit
The HP 126-in Dual Roll Kit is built to help production environments increase output without adding labor.
- Double Throughput: Run two rolls at once to significantly increase production capacity
- Increased Unattended Printing: Reduce operator intervention and maximize uptime
- High Media Capacity: Supports rolls up to 63 inches wide and 154 lbs
- Flexible Compatibility: Designed for multiple HP Latex printer models
- Efficient Loading: Simplifies handling of large and heavy media rolls
- Production Optimization: Keeps printers running longer with fewer interruptions
Applications
- High-volume signage production
- Banner printing
- Retail graphics
- Fleet graphics
- Wall coverings
- Trade show graphics
- Production print environments
- Continuous roll printing
- Multi-job batching
- Large format print shops
Key Features
- Dual Roll Printing Capability: Enables simultaneous printing on two media rolls
- Wide Media Support: Handles rolls up to 63 inches per roll
- Heavy Roll Capacity: Supports up to 154 lbs per roll
- Adjustable Shim System: Ensures proper alignment across printer models
- Central Support System: Stabilizes rolls during high-speed printing
- Seamless Integration: Designed specifically for HP Latex production printers
- Reduced Downtime: Minimizes media changes and operator intervention
Technical Specifications
- Product Name: HP 126-in Dual Roll Kit
- Part Number: 4J0X0A
- Maximum Roll Width (Per Roll): 63 inches
- Maximum Roll Weight: 154 lbs
- Maximum Roll Diameter: 11.8 inches
- Total System Width: 126 inches
- Included Components:

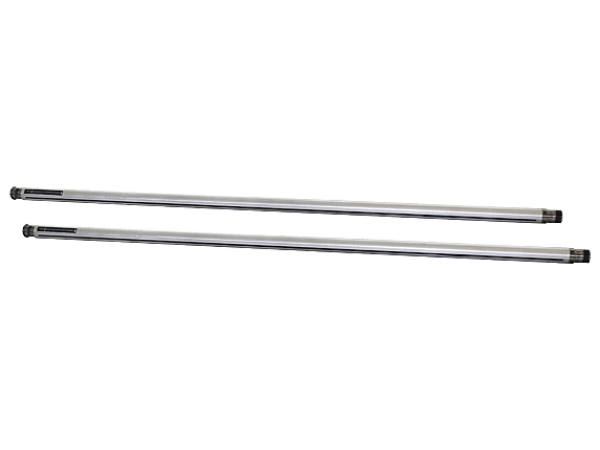

- 2x Dual roll spindles
- 2x Central supports
- Shim kit for height adjustment
- Media Handling: Dual roll simultaneous printing
- Installation: Compatible with multiple HP Latex platforms
- Configuration: Adjustable depending on printer model
According to the compatibility documentation, the kit includes two 126-inch spindles, center supports, and a shim kit to adapt across supported printers
Compatibility
- HP Latex 2700 Series
- HP Latex FS50
- HP Latex FS60
- HP Latex FS70 W
- HP Latex 1500
- HP Latex 3×00 Series
- HP Stitch S1000
The included shim system allows configuration adjustments based on printer model for proper alignment and operation
FAQ for HP 126-in Dual Roll Kit
What does the HP 126-in Dual Roll Kit do?
It enables dual roll printing, allowing two rolls of media to be printed simultaneously to increase production output.
How much can this improve productivity?
By running two rolls at once, production throughput can effectively double depending on job type and setup.
What size rolls can be used?
Each roll can be up to 63 inches wide, 154 lbs, and 11.8 inches in diameter.
Is this compatible with FS series printers?
Yes, it is compatible with FS50, FS60, and FS70 W, as well as other HP Latex production printers.
Does installation require adjustments?
Yes, the included shim kit allows proper configuration depending on the printer model.
Is this suitable for high-volume production environments?
Yes, it is specifically designed for print providers running continuous or large-volume jobs.
Increase Output Without Increasing Labor
Add dual roll capability to your HP Latex printer and maximize production efficiency with fewer interruptions.
