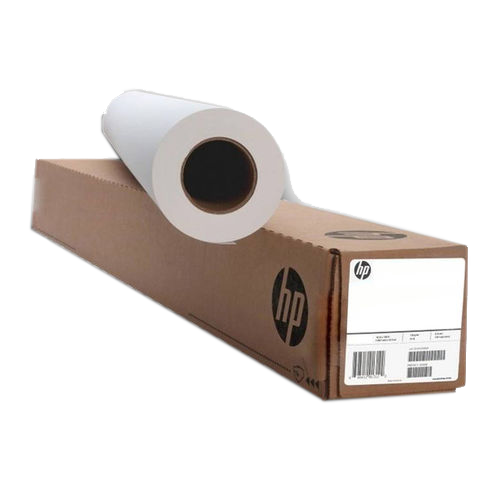

HP Clear Large Format Film

HP Clear Large Format Film Professional Overlay Media

HP Clear Large Format Film is an optically clear polyester film designed for professional overlays, transparencies, and technical graphics where sharp line quality, precise bleed control, and reliable ink adhesion are critical. Built for HP DesignJet printers using Original HP dye- and pigment-based inks, this clear film delivers consistent print quality and prevents ink transfer between layered graphics.

---

Why Choose HP Clear Large Format Film

HP Clear Large Format Film provides dependable performance for technical, presentation, and overlay applications that demand clarity, precision, and durability.

• Image Quality: Produces sharp line detail with consistent, vivid color
• Bleed Control: Maintains clean edges and prevents ink feathering
• Ink Adhesion: Prevents ink transfer between stacked or layered overlays
• Print Consistency: Delivers uniform results print to print and roll to roll
• Professional Finish: Matte clear surface supports readable transparencies

---

Applications

• Trade Show Displays: Transparent overlays and layered graphics
• POP Retail Displays: Clear signage elements and overlays
• GIS Mapping: Translucent data layers and precise line work
• AEC and MCAD Drawings: Architectural and engineering transparencies
• Technical Overlays: Banner shields, retractable screens, sneeze guards

---

Key Features

• Material: Polyester clear film
• Surface: Optically clear with matte finish
• Ink Adhesion: Strong adhesion prevents ink offset and transfer
• Dry Time: Fast drying for efficient production
• Lamination: Compatible with pressure-sensitive laminates

---

Specifications

• Media Type: Polyester clear film
• Finish: Matte
• Color: Clear
• Weight: 156 gsm
• Thickness: 4.7 mil
• Opacity: 8%
• Brightness: Greater than 95
• Whiteness: 130
• Core Size: 2 inches
• Roll Size: 24 inches x 75 feet
• Ink Compatibility: Aqueous
• Dry Time: Less than 9 minutes
• Lamination: Cold, pressure-sensitive
• Operating Temperature: 59 °F to 95 °F
• Operating Humidity: 20% to 70% RH
• Shelf Life: 2 years unopened
• Country of Origin: Germany

---

Compatibility

• Printers: HP DesignJet large-format printers
• Ink Types: Original HP dye-based inks, Original HP pigment-based inks
• Use Note: Test overlays before full production to confirm stacking and alignment

---

FAQ

What applications work best with this film?
This film supports overlays, transparencies, GIS layers, AEC drawings, and technical graphics requiring clarity and precision.

Does this film prevent ink transfer between layers?
Yes. Strong ink adhesion prevents ink offset when stacking or layering prints.

Can this film be laminated?
Yes. Use pressure-sensitive cold laminates for best results.

Is this film suitable for outdoor use?
No. This film is designed for indoor display and technical applications.

How should this film be stored?
Store unopened rolls at room temperature in the original packaging to maintain clarity and flatness.

---

Deliver Clear, Professional Overlays

Choose HP Clear Large Format Film when precision, clarity, and consistent results matter.
