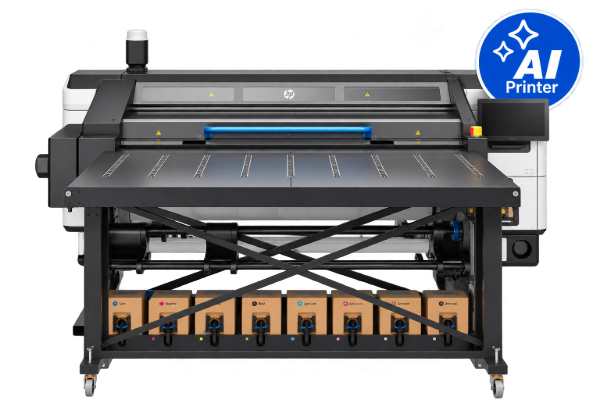

HP Latex R530 AI 64″ All-In-One Flatbed Printer

***This printer DOES NOT ship with ink cartridges or starter inks. A full set of ink cartridges must be purchased with the printer for it to be operational.*** Shipping January 2027

The HP Latex R530 AI 64″ Flatbed Printer brings AI-powered production capabilities to versatile rigid and flexible wide-format printing. Designed for sign shops, print service providers, and commercial graphics producers, this compact hybrid printer combines HP Latex printing technology with intelligent automation to simplify workflows, improve efficiency, and expand application possibilities.

Print directly onto rigid substrates up to 2 inches thick or switch to flexible roll media up to 64 inches wide without investing in separate printing systems. The HP High Control Belt System delivers predictable media handling, while HP Pixel Control produces sharp details, accurate colors, and smooth gradients across a variety of substrates.

With Automatic Print Mode Selection powered by edge AI and 2 years of HP PrintOS Production Hub, the R530 AI helps operators make production decisions more efficiently and simplify everyday print management.

From retail displays and point-of-purchase graphics to custom signage, décor, and specialty applications, the HP Latex R530 AI gives businesses the flexibility to take on more projects from one compact production platform.

HP Latex R530 AI Key Features

• 64″ Rigid and Flexible Printing: Print directly onto rigid boards and flexible roll media up to 64 inches wide.
• Up to 2″ Rigid Media Thickness: Produce graphics on rigid substrates up to 2 inches (5 cm) thick.
• AI-Powered Automatic Print Mode Selection: Edge AI recommends the optimal print mode to simplify production setup.
• HP PrintOS Production Hub: Includes a 2-year plan with Direct Job Submission and AI capabilities to help streamline production workflows.
• HP High Control Belt System: Supports predictable printing across rigid and flexible media.
• HP Latex White Ink: Expand applications with white ink and automatic recirculation and printhead cleaning.
• HP Pixel Control: Achieve sharp details, accurate colors, and smooth gradients.
• Up to 258 ft²/hr Print Speed: Produce indoor-quality graphics at speeds up to 258 square feet per hour (24 m²/hr).
• 3-Liter Ink Cartridges: Large-capacity cartridges are available for color and white inks.
• Single-Phase Power: Simplifies printer installation and electrical requirements.
• Spindle-Less Media Loading: Makes flexible media handling easier for operators.
• Intuitive Touchscreen: Conveniently access printer functions and production settings.
• Compact Hybrid Design: Combine rigid and roll-to-roll production in one printing system.
• Sustainability-Focused Features: Includes UL ECOLOGO-certified HP Latex inks, at least 25% recycled plastic in the printer, and an extended-life maintenance cartridge.

Automatic Print Mode Selection

Powered by edge AI, Automatic Print Mode Selection recommends an optimal print mode for each job. This technology helps operators simplify job setup and make informed production decisions more efficiently.

By reducing manual decision-making, print providers can focus more attention on production quality, scheduling, and completing customer orders.

HP PrintOS Production Hub

The HP Latex R530 AI includes 2 years of HP PrintOS Production Hub with Direct Job Submission and AI capabilities.

This cloud-based workflow platform helps centralize production information and provides tools designed to simplify print production management.

Key workflow capabilities include:

• Direct Job Submission
• AI-powered production tools
• Centralized production information
• Streamlined job management
• More efficient production workflows

Together, these capabilities help reduce unnecessary production steps and support a more connected printing environment.

All-in-One Rigid and Flexible Printing

Expand your capabilities without dedicating separate equipment to rigid and roll-fed printing.

The HP Latex R530 AI combines both technologies into one compact hybrid printer, allowing print businesses to handle a wider variety of applications while making efficient use of production space.

Direct-to-Rigid Printing

Print directly onto rigid substrates up to 2 inches thick using the HP High Control Belt System.

Direct-to-rigid printing can reduce the need to print onto adhesive vinyl and mount the finished graphic onto a board. Eliminating mounting steps can help reduce material handling, simplify production, and minimize waste.

Applications include:

• Rigid indoor signage
• Point-of-purchase displays
• Retail graphics
• Promotional display boards
• Exhibition graphics
• Interior décor
• Custom printed rigid panels

Flexible Roll-to-Roll Printing

The HP Latex R530 AI also supports flexible roll media up to 64 inches wide, allowing operators to transition between rigid and flexible production. Its spindle-less loading system helps simplify material handling, while support for a single roll weighing up to 121 lb (55 kg) provides flexibility for larger production jobs. Flexible applications include banners, adhesive vinyl graphics, wallcoverings, posters, promotional graphics, and other compatible wide-format media.

Consistent HP Latex Print Quality Across Media

The HP Latex R530 AI combines HP Latex printing technology with HP Pixel Control to deliver consistent image quality across rigid and flexible substrates. HP Pixel Control helps produce detailed graphics, solid color fills, and smooth gradients while maintaining the intended appearance of the printing material. This versatility allows print providers to produce graphics for multiple applications while maintaining consistent output quality.

Expand Applications with HP Latex White Ink

The HP Latex R530 AI includes an integrated HP Latex White Ink system, helping businesses expand into specialty printing applications that require white ink. White ink makes it possible to produce graphics with white underlays, overlays, or standalone white elements on compatible colored and specialty substrates. The printer includes automatic white ink recirculation and printhead cleaning to simplify maintenance and support reliable day-to-day operation.

HP Latex White Ink benefits include:

• Printing white graphics on compatible colored media
• White underlays and overlays for specialty applications
• Expanded printing possibilities on rigid and flexible substrates
• Automatic white ink recirculation
• Automated printhead cleaning
• Simplified white ink maintenance

Sustainable HP Latex Printing

The HP Latex R530 AI incorporates printing technologies and materials designed to help businesses reduce waste and support sustainability initiatives.

By printing directly onto rigid substrates, businesses may eliminate the need for mounting adhesive vinyl onto boards, reducing material usage and additional production steps.

The printer also incorporates several sustainability-focused features:

• UL ECOLOGO-Certified HP Latex Inks: HP Latex inks are designed to meet applicable environmental and human health certification criteria.
• Odorless Prints: Produce graphics without the strong odors associated with some traditional printing technologies.
• At Least 25% Recycled Plastic: The printer incorporates recycled plastic into its construction.
• Extended-Life Maintenance Cartridge: A returnable cartridge helps reduce maintenance frequency.
• HP Sustainability Amplifier: Access software and resources designed to support sustainability initiatives.
• HP Planet Partners: Participate in applicable HP recycling programs where available.
• PVC Alternative Media Database: Explore media profiles for alternatives with certain environmental benefits.

HP Latex R530 AI Printer Specifications

Specification	Details
Printer Type	64″ Hybrid Rigid and Flexible Large-Format Printer
Maximum Media Width	64 in (1.6 m)
Maximum Rigid Media Thickness	2 in (5 cm)
Maximum Indoor Print Speed	258 ft²/hr (24 m²/hr)
Ink Technology	HP Latex Inks
Ink Cartridge Capacity	3 liters per cartridge for colors and white
White Ink	HP Latex White Ink
White Ink Maintenance	Automatic recirculation and printhead cleaning
Print Quality Technology	HP Pixel Control
Media Handling	HP High Control Belt System
Roll Media Loading	Spindle-less
Maximum Roll Weight	121 lb (55 kg), single roll
AI Technology	Automatic Print Mode Selection powered by edge AI
Workflow Software	2 years of HP PrintOS Production Hub
Direct Job Submission	Included through HP PrintOS Production Hub
Power Requirements	Single-phase power

Printer Dimensions and Weight

Dimension	Measurement
Width	103.5 in
Depth Without Tables	68.1 in
Depth With Tables	126 in
Height	60.9 in
Printer Weight Without Tables	1,455 lb

Shipping Dimensions and Weight

Dimension	Measurement
Shipping Width	115.4 in
Shipping Depth	87.6 in
Shipping Height	69.1 in
Shipping Weight	2,769 lb

What’s Included with the HP Latex R530 AI?

The HP Latex R530 AI includes the following equipment, components, and introductory services:

• HP Latex R530 AI 64″ Flatbed Printer
• New HP AI PC upgrade, including display
• Standard input and output tables
• Roll-to-roll printing system
• Integrated white ink system
• 1 multi-sheet pin
• 1 set of printheads
• HP PrintOS Production Hub 2-Year Plan
• Printhead Maintenance Kit
• Maintenance cartridge
• 2 ink collection units
• User Maintenance Kit
• Power cords
• Standard delivery, installation, training, and ramp-up
• 24 months of service coverage (6-month warranty plus 18-month Professional Services Plus Plan)
• Warranty and introductory documentation

Important: Ink cartridges and starter inks are not included. A complete set of ink cartridges must be purchased separately for the printer to operate.

Optional HP Latex R530 AI Accessories

Expand your printing capabilities with compatible accessories:

• HP Latex R Series 64-in Extension Tables: Provide additional material support for rigid printing applications.
• HP Latex R530 Lateral Pinch Rollers Kit: Supports additional media handling needs.

Contact Big Systems for accessory availability and compatibility guidance.

HP Latex R530 AI Printing Applications

The versatility of the HP Latex R530 AI makes it suitable for businesses producing a combination of rigid signage, flexible graphics, and specialty printed applications.

Retail and Point-of-Purchase Graphics:  Produce promotional signage, branded displays, and point-of-purchase graphics for retail environments. Direct-to-rigid capabilities help simplify the production of printed display boards.

Indoor and Outdoor Signage: Create indoor and short-term outdoor signs using compatible rigid and flexible media. HP Latex printing technology delivers detailed graphics and consistent color for a variety of signage applications.

Trade Show and Event Graphics: Produce exhibition displays, event signage, promotional graphics, and branded display panels using one hybrid printing system.

Interior Décor and Wall Graphics: Expand into décor applications, including wallcoverings, decorative panels, and custom graphics on compatible materials.

Specialty White Ink Applications: Create graphics on compatible colored and specialty substrates using HP Latex White Ink for added visual impact.

Promotional and Commercial Graphics: Produce banners, posters, decals, promotional signage, and other wide-format graphics for commercial customers.

HP Latex R530 vs. HP Latex R530 AI: What’s the Difference?

The HP Latex R530 AI builds on the original HP Latex R530 platform by introducing additional AI-powered production capabilities.

Both printers share the versatile rigid and flexible printing technology of the R530 platform, including HP Latex printing, direct-to-rigid production, and white ink capabilities.

The HP Latex R530 AI adds:

• Automatic Print Mode Selection powered by edge AI
• Updated HP Internal Print Server PC and display
• 2 years of HP PrintOS Production Hub
• Direct Job Submission
• AI-powered workflow capabilities

These features are designed to simplify production management and help print businesses take advantage of intelligent workflow tools.

Why Buy Your HP Latex R530 AI from Big Systems?

Investing in a wide-format printer involves more than comparing equipment specifications. At Big Systems, we help you choose the right printing solution for your applications, production requirements, and long-term business goals.

With over 30 years of wide-format industry experience, Big Systems provides the equipment, supplies, service, and technical guidance you need to maximize your investment.

When you choose Big Systems, you benefit from:

• Over 30 years of wide-format industry experience
• Manufacturer-certified sales and technical specialists
• Personalized printer and workflow recommendations
• Nationwide installation and HP printer service
• Compatible inks, media, and finishing solutions
• Ongoing support to keep your production moving

Whether you’re adding rigid printing to your existing operation or expanding your hybrid production capabilities, our team can help you find the right solution.

Ready to take your printing capabilities further?

Contact Big Systems to request a personalized quote or speak with a wide-format specialist about the HP Latex R530 AI.

HP Latex R530 AI Frequently Asked Questions

What is the HP Latex R530 AI?

The HP Latex R530 AI is a 64-inch hybrid large-format printer that prints directly onto rigid and flexible media. It combines HP Latex printing technology with AI-powered production capabilities, including Automatic Print Mode Selection and HP PrintOS Production Hub.

What is the difference between the HP Latex R530 and R530 AI?

The HP Latex R530 AI adds Automatic Print Mode Selection powered by edge AI, an updated HP Internal Print Server PC and display, and 2 years of HP PrintOS Production Hub with Direct Job Submission and AI capabilities.

Does the HP Latex R530 AI support white ink?

Yes. The printer includes HP Latex White Ink with automatic white ink recirculation and printhead cleaning. White ink expands printing possibilities on compatible colored and specialty substrates.

What does Automatic Print Mode Selection do?

Automatic Print Mode Selection uses edge AI to recommend an optimal print mode for each job, helping operators simplify setup and reduce manual production decisions.

What is HP PrintOS Production Hub?

HP PrintOS Production Hub is a cloud-based production workflow platform designed to centralize production information and simplify job management. The HP Latex R530 AI includes a 2-year plan with Direct Job Submission and AI capabilities.

What businesses benefit from the HP Latex R530 AI?

The R530 AI is designed for sign shops, print service providers, commercial printers, display manufacturers, retail graphics producers, and businesses looking to combine rigid and flexible wide-format production.

Does Big Systems provide installation and service for the HP Latex R530 AI?

Big Systems provides nationwide HP printer installation and service through manufacturer-certified technical specialists. Contact our team to discuss installation, training, and ongoing support for your equipment.
