MacTac RAYZor Cast Overlam
Price:$695.00

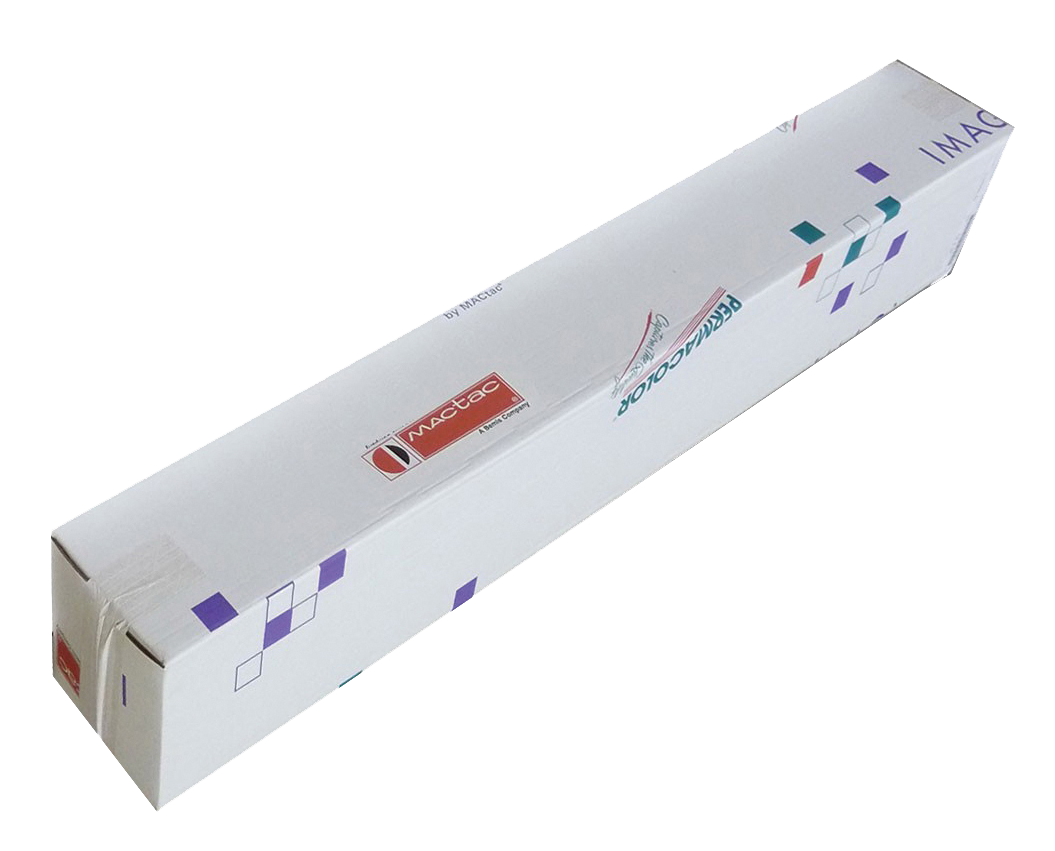

MacTac Permacolor RAYZor Cast Overlaminate LF3648G 1.5 Mil Gloss
MacTac Permacolor RAYZor Cast Overlaminate LF3648G is a 1.5 mil gloss cast vinyl overlaminating film engineered to protect long-term outdoor graphics. Built with a permanent acrylic pressure sensitive adhesive and additional UV inhibitors, this highly conformable cast laminate extends image life while preserving gloss and clarity on demanding applications.
Designed for marine, fleet, vehicle, and textured wall graphics, LF3648G performs on flat, curved, corrugated, and riveted surfaces where flexibility and durability matter.
Why Choose MacTac Permacolor RAYZor Cast Overlaminate LF3648G
This cast overlaminate protects premium graphics without compromising conformability or visual impact.
- 1.5 Mil Cast Vinyl Construction: Highly conformable for rivets, corrugations, and curves
- Gloss Clear Finish: Enhances color depth and visual impact
- Built-In UV Protection: Resists color fade caused by ultraviolet exposure
- Permanent Acrylic Adhesive: Strong bond for long-term outdoor durability
- Marine and Fleet Rated: Engineered for vehicle and marine environments
- Cold Roll Compatible: Processes efficiently without heat or liquid coatings
Applications
- Fleet and vehicle wraps
- Marine graphics
- Corrugated and riveted surfaces
- Long-term outdoor signage
- Rough textured wall graphics when paired with compatible films
- Industrial and OEM markings
Key Features
- Thickness: 1.5 mil film
- Finish: Gloss clear
- Material: Cast PVC
- Adhesive: Permanent acrylic
- Outdoor Durability: 5 years vertical exposure
- Indoor Durability: 7+ years
- Width: 54 inches
- Length: 150 feet
- Liner: 50# glassine
- Gloss Level (60°): 80 minimum
Specifications
- Application Temperature: Minimum 40°F
- Service Temperature: -50°F to 225°F
- Dimensional Stability: Maximum 0.01 percent after 48 hours at 158°F
- Peel Adhesion (24 hr): 3.7 lb/in on stainless steel
- Quick Tack: 2.5 lb/in²
- Fire Rating: Class A per ASTM E84
Horizontal applications or installations in Southwest regions may reduce outdoor durability by approximately 50 percent.
Compatibility
MacTac Permacolor RAYZor Cast Overlaminate LF3648G is recommended for use with:
- Long-term cast print films
- Fleet and marine graphics systems
- Rough wall films such as RR100
- Solvent, eco-solvent, latex, and UV printed graphics
Allow printed graphics to dry at least 24 hours before lamination.
FAQ
Is LF3648G suitable for full vehicle wraps?
Yes. Its cast construction allows it to conform over rivets, curves, and corrugated panels in fleet and vehicle applications.
Does it add UV protection?
Yes. The film includes built-in UV inhibitors to help extend image life and reduce color fade.
Can it be used in marine environments?
Yes. It is designed for marine graphics and offers strong chemical and salt spray resistance.
How long will it last outdoors?
Up to 5 years on vertical applications in the Central United States. Horizontal or high UV regions may reduce lifespan.
Does it require heat to laminate?
No. It is designed for cold roll lamination. Moderate heat up to 120°F can help eliminate roll mottling during processing.
Protect Premium Graphics with Cast Performance
Choose MacTac Permacolor RAYZor Cast Overlaminate LF3648G to maximize durability, gloss, and long-term performance on demanding outdoor applications.
Additional information
| Weight | 5.0 lbs |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 in |
| Size Options |
