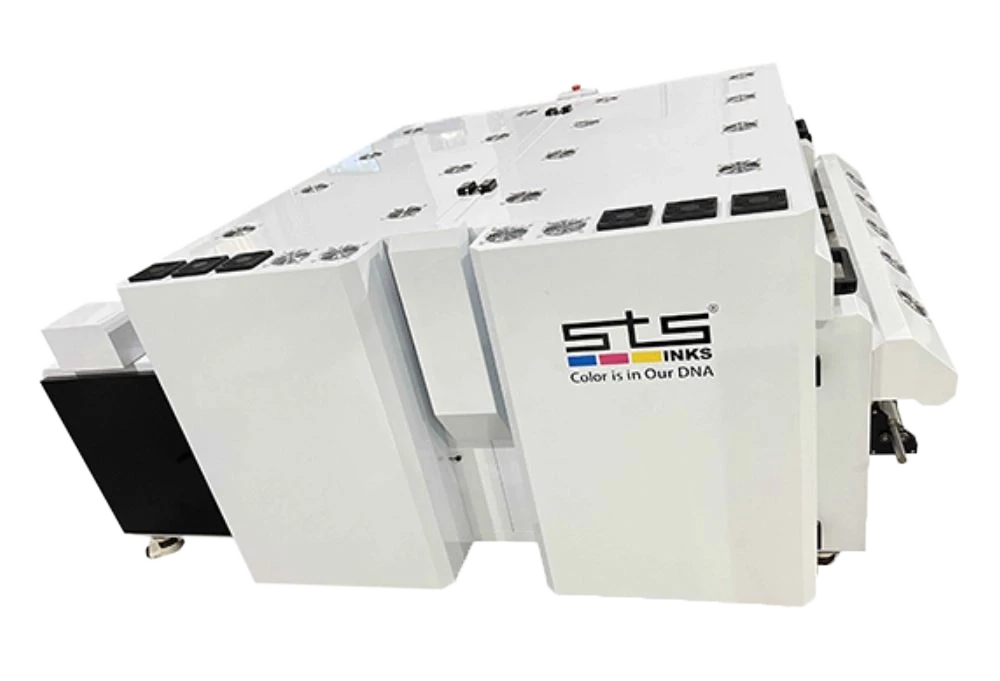

STS 48 Automatic TPU Adhesive Powder Shaker

48 Automatic TPU Adhesive Powder Shaker systems are designed for professional Direct to Film production environments that demand speed, consistency, and reduced manual labor. Built by STS Inks, this state-of-the-art automated unit evenly applies TPU adhesive powder, removes excess material, and cures the powder in a single integrated process. The result is a ready-to-press DTF transfer with consistent coverage and reliable adhesion.

Engineered for medium to large print shops, this 48-inch automatic powder shaker integrates advanced heating, infrared drying, and precision controls to support continuous roll-to-roll DTF production.

Why Choose the 48 Automatic TPU Adhesive Powder Shaker

Manual powder application introduces inconsistencies, waste, and labor costs. The STS 48 Automatic TPU Adhesive Powder Shaker eliminates those variables by automating powder distribution and curing. Integrated curing ovens, controlled heating zones, and vacuum absorption ensure uniform results across the entire width of the film, supporting scalable and repeatable DTF output.

Built for High-Volume DTF Production

This system can operate independently or inline with a 48-inch DTF printer. A smart PLC touchscreen allows operators to fine-tune heating, speed, and powder flow, while the mesh and belt-driven transport ensures stable film movement. The double-sided curing oven fully gels TPU adhesive powder, producing transfers that are ready for heat application.

Key Features

• Automatic TPU adhesive powder application and removal
• Adjustable electrical heating system
• Infrared drying technology
• Double-sided integrated curing oven
• Smart PLC touchscreen control interface
• Auto and manual operation modes
• Tension-controlled feed and take-up reels
• Mesh and belt-driven transport system
• Vacuum absorption platform for film stability
• Can run inline with a DTF printer or as a standalone unit

Specifications

• Maximum Film Width: 48 inches
• Power Requirements: 220/240V, 50/60Hz
• Power Consumption: 6 kW

Dimensions

• With Air Filter: 74.8 W x 96.5 L x 41.7 H inches
• Without Air Filter: 69.3 W x 96.5 L x 41.7 H inches

Weight

• Net Weight: 1,543 lbs
• Shipping Weight: 1,764 lbs

Packaging Size

• 78 W x 90.6 L x 44.9 H inches

Applications

• High-volume Direct to Film transfer production
• Automated TPU powder coating and curing
• Roll-to-roll DTF printer integration
• Commercial garment decoration environments

Scale Your DTF Production with Automation

The Adhesive Powder Shaker is built for shops ready to move beyond manual powder application and into consistent, production-level DTF output. Contact Big Systems to discuss installation requirements, printer compatibility, and complete STS DTF system solutions.
