Summa F1625 F Series Vantage Flatbed Cutter

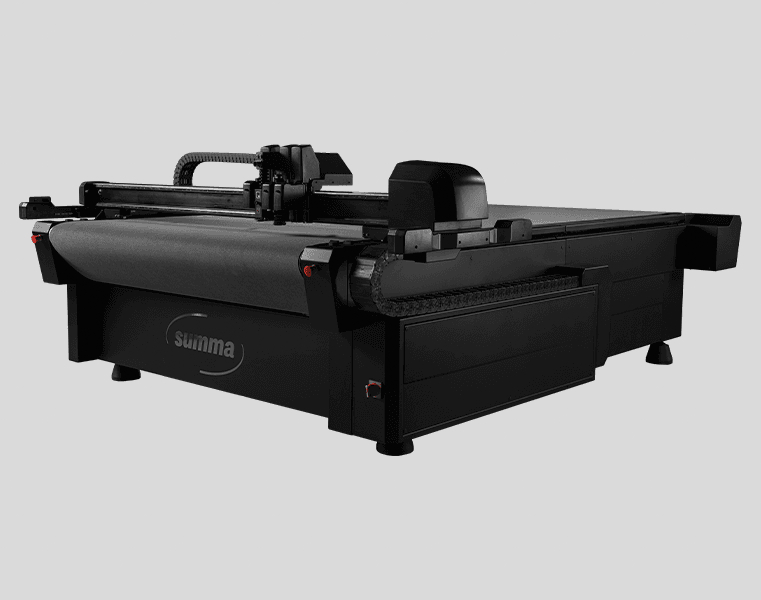

Summa F1625 flatbed cutter

The Summa F1625 F Series Vantage is the all-purpose flatbed cutting table for sign, display, packaging, industrial, and textile production environments. Built for shops that need flexibility across both flexible and rigid materials, the F1625 is designed to handle everything from vinyl and banners to foam board, corrugated materials, PVC, ACM, acrylic, and full 4 x 8 foot board workflows.

With a 63 x 98 inch work zone, the F1625 gives production teams the space and capability to take on larger sheets, higher-value jobs, and a wider range of applications. Its modular tooling platform supports cutting, routing, creasing, kiss cutting, and finishing workflows, helping shops expand what they can produce on one table.

The F1625 combines precision hardware with smart workflow features like Automatic Device Calibration, barcode-driven job loading, GoProduce software, and automatic module recognition. For busy shops running a high mix of materials and job types, the F1625 helps reduce changeover time, improve consistency, and keep production moving.

Key Features:

• Versatile flatbed cutter for rolls, sheets, rigid boards, and routed materials
• Designed for 4 x 8 foot board workflows
• Up to 65 inch material width
• 63 x 98 inch work zone
• Conveyor workflow for roll and sheet production
• Tandem mode and operator zone to help reduce waiting time
• Optical camera recognition for accurate contour cutting

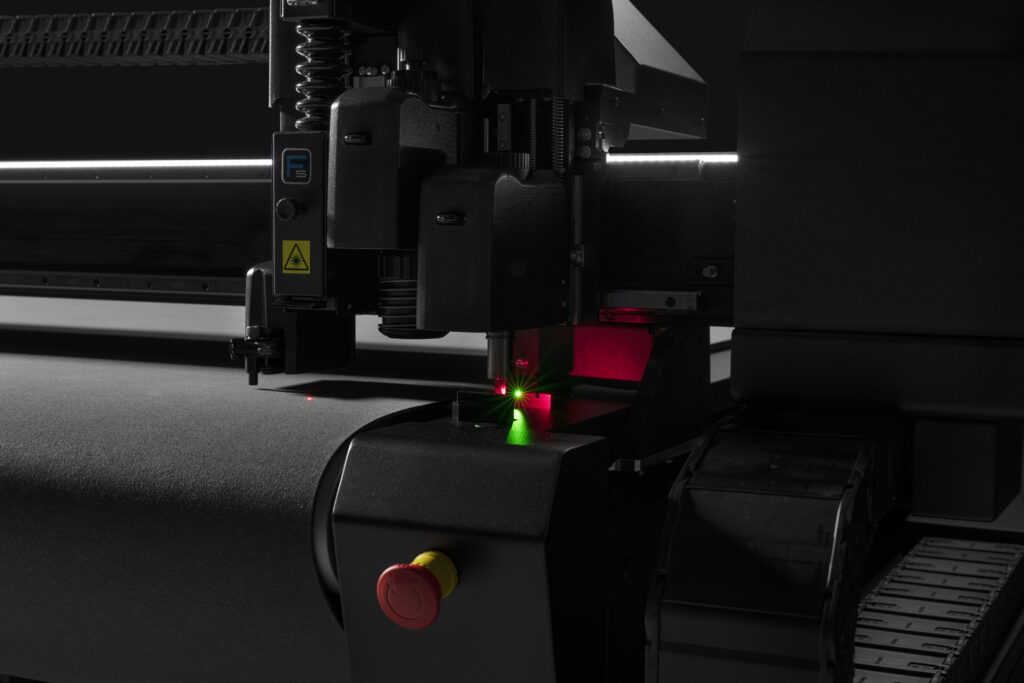

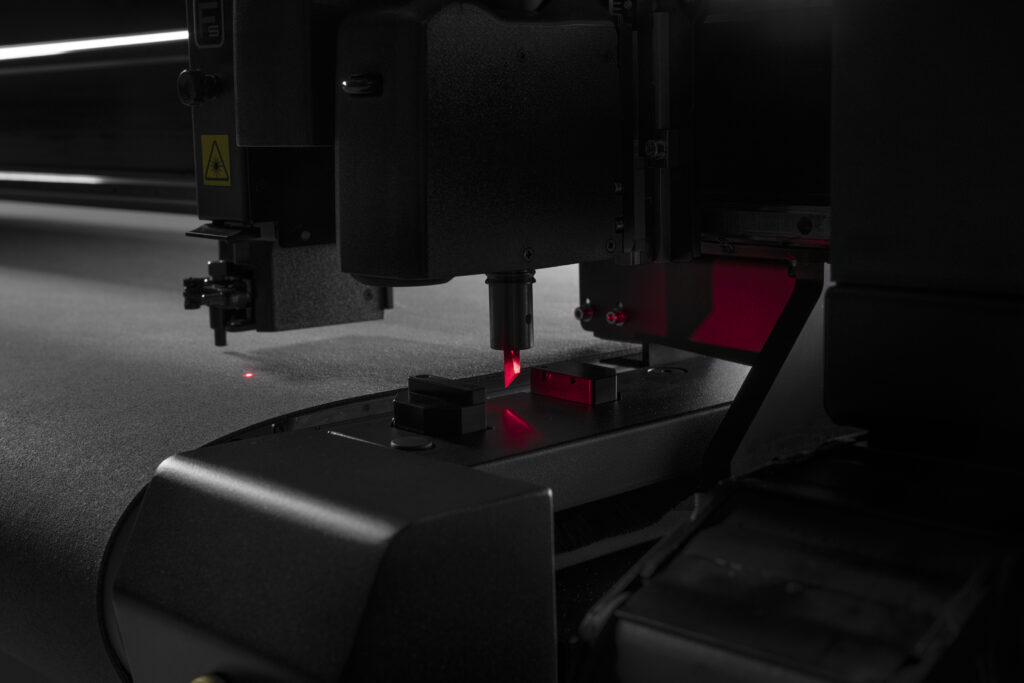

• Automatic Device Calibration for faster, more consistent setup
• Barcode support to help load the correct file, material profile, and tool settings
• GoProduce software for workflow control
• Modular tooling for routing, creasing, kiss cutting, and cutting

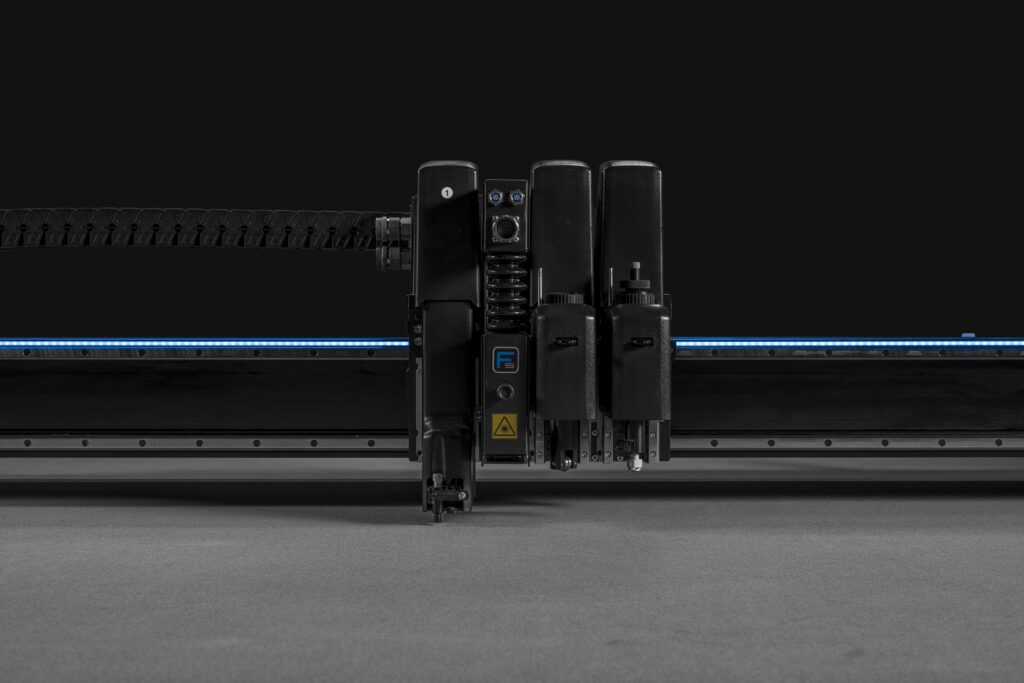

• Multi-tool holder carriage for up to three tools
• Ethernet connectivity for flexible production setup
• Future-ready design built for evolving production workflows

Best For:

• Sign and display shops
• Packaging teams
• Industrial production
• Textile professionals
• Print service providers
• Shops producing rigid signage
• Teams adding routing or creasing capabilities
• High-mix, high-value production environments

Applications:

• 4 x 8 foot rigid boards
• Expanded PVC and foam board
• Honeycomb and Re-board materials
• Multi-ply plywood
• ACM and ACP
• Acrylic and PMMA
• Aluminum
• Banners
• Reflective sheeting
• Magnetic media
• Corrugated board
• POS displays
• Prototypes
• Short-run packaging
• Adhesive vinyl
• Textile applications

Workflow Advantages:

The F1625 is built for shops that need finishing flexibility without slowing production down. Barcode automation helps reduce file selection errors. Action Sets help trigger repeatable job sequences with fewer operator steps. Automatic tool and module recognition help improve setup confidence, while GoProduce software keeps more of the finishing workflow in one place.

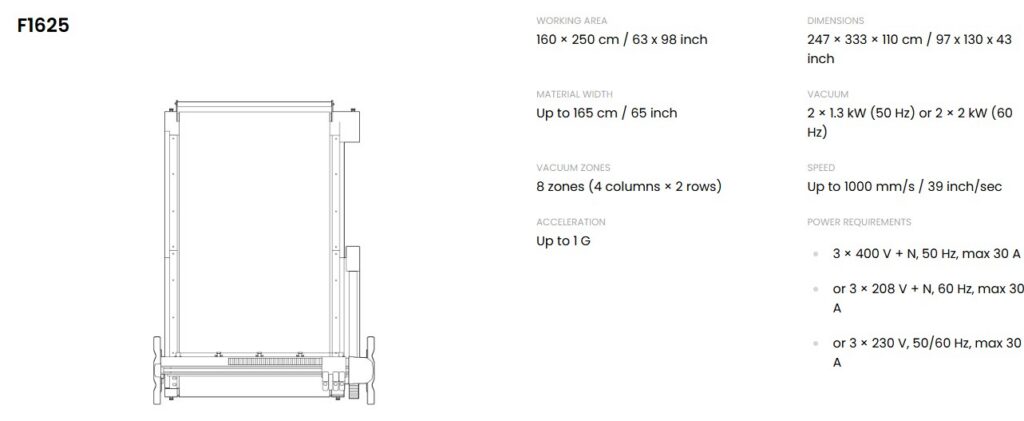

Specifications:

• Model: Summa F1625 F Series Vantage
• Machine Dimensions: 97 x 130 x 43 inches
• Material Width: Up to 65 inches
• Work Zone: 63 x 98 inches
• Speed: Up to 39 inches per second
• Acceleration: Up to 1G
• Vacuum: 2 x 1.3 kW 50Hz or 2 x 1.5 kW 60Hz
• Vacuum Zones: 8 zones, 2 rows x 4 columns
• Repeatability: Within ±0.002 inches on plots
• Accuracy: 0.05 percent of move or 0.002 inches, whichever is greater
• Clearance: 1.9 inches
• Software: GoProduce
• Connectivity: Ethernet
• Included Base Features: Drag knife module, optical camera recognition system, laser pointer, conveyor system, roll support, media clamps, safety system, ADC, and multi-tool holder carriage

Frequently Asked Questions

What is the Summa F1625 F Series Vantage used for?

The Summa F1625 F Series Vantage is an all-purpose flatbed cutter for sign, display, packaging, industrial, and textile production. It is built for shops that need to handle rolls, sheets, rigid boards, routing, creasing, kiss cutting, prototypes, POS displays, and short-run packaging.

Can the Summa F1625 handle 4 x 8 boards?

Yes. The Summa F1625 is designed around sheet workflows and is a strong fit for 4 x 8 foot board applications. Its 63 x 98 inch work zone makes it a practical choice for rigid signage, display graphics, packaging prototypes, and board finishing.

What materials can the Summa F1625 cut?

The Summa F1625 can support a wide range of materials, including vinyl, banners, foam boards, corrugated materials, PVC, plywood, MDF, ACM, aluminum sandwich panels, acrylic, felt, and more. Final material compatibility depends on the selected tools, modules, and application requirements.

Does the Summa F1625 support routing and creasing?

Yes. The F1625 supports modular tooling for routing, creasing, kiss cutting, and cutting workflows. This makes it a strong option for shops looking to expand beyond basic cutting into packaging, displays, rigid signage, and specialty finishing.

What software comes with the Summa F1625?

The Summa F1625 includes GoProduce software. GoProduce helps manage finishing workflows, material databases, action sets, camera recognition, barcode support, and automated production steps from one software platform.

What is the difference between the Summa F1612 and F1625?

The F1612 is the more compact model and is best for shops focused on flexible materials, decals, banners, stickers, magnetic media, and light board work. The F1625 offers a larger work zone and is better suited for 4 x 8 boards, rigid signage, routing, creasing, packaging prototypes, and more demanding production workflows.
