X-Rite i1iSis 2

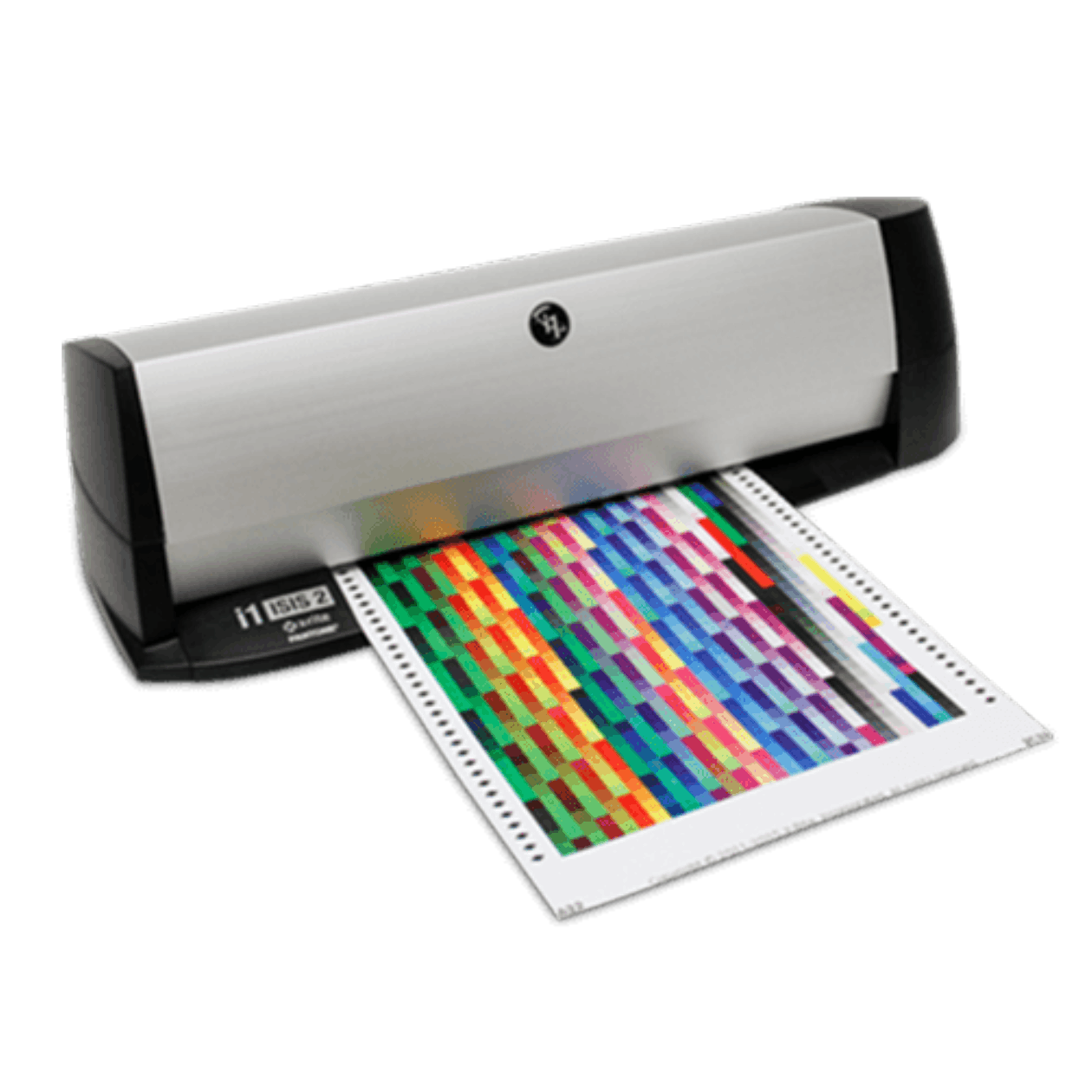

X-Rite i1iSis 2 Automated Chart Reader – HW-XRTEOISIS

The X-Rite i1iSis 2 is an advanced automated spectrophotometer built to eliminate the time and labor traditionally required for printer profiling and calibration. Ideal for photo processing, wide format, fine art, and high-speed digital printing environments, it enables fast, repeatable measurement of color test charts to keep profiles accurate and up to date.

With support for the latest ISO 13655 M-Series measurement standards, including M1 for substrates containing optical brightening agents, the i1iSis 2 ensures consistent color measurement across a wide range of inks, papers, and production conditions. Simply print the chart, feed it into the device, and let the i1iSis 2 process thousands of color patches in minutes.

Why Choose X-Rite i1iSis 2

• Automates printer profiling to reduce labor and human error
• Speeds up chart measurement for high-production print workflows
• Supports modern ISO M-Series standards including M1
• Ensures consistent color on papers with optical brighteners
• Ideal for production, proofing, and color-critical print environments

---

Key Features

• Automated Chart Reading: Measures full A4 or Letter test charts in minutes
• ISO M-Series Support: Measures M0, M1, and M2 in a single workflow
• Optical Brightener Compensation: Accurate profiling on OBA-containing substrates when used with i1Profiler software
• Built-In Vision System: Automatically corrects chart misalignment during feeding
• High Patch Capacity: Reads up to 2,500 color patches per chart
• Standards Compliance: Supports GRAcOL 2013, SWOP 2013, ISO 12647-2, FOGRA 51, FOGRA 52, and XRGA
• Barcode Recognition: Automatically identifies charts for faster processing

---

Applications

• High-volume production printing
• Wide format and large format printing
• Fine art and photographic printing
• Proofing and prepress workflows
• Color management environments requiring frequent profile updates

---

Technical Specifications

• Measurement Conditions: M0, M1, and M2
• Short-Term Repeatability (White): 0.1 dE*94 (D50, 2)
• Inter-Instrument Agreement: Average 0.4 dE*94 deviation from X-Rite manufacturing standard at 73.4°F
• Spectral Range: 380 to 730 nm
• Spectral Reporting: 10 nm
• Photometric Range: 10 nm, sampling interval 3.5 nm (100 bands)
• Spectral Analyzer: i1 technology with holographic diffraction grating and diode array
• Aperture: Effective measurement aperture depends on patch size during scanning
• Media Thickness: Typical 0.006 in, range 0.003 to 0.018 in
• Sheet Size Supported:
  • Width: 2.4 to 9 in
  • Length: 6.7 to 26 in
• Calibration: Automatic using internal calibration reference
• Optical Brightener Compensation: Supported with i1Profiler software
• Communication Interface: USB
• Connectivity: Powered USB port
• Experience Level: Intermediate to Advanced
• Software Development Kit: Available for OEM customers
• Dimensions: 16.5 x 6.3 x 4.7 in (width x depth x height)
• Weight: 7.06 lb (112.9 oz)
• Unit Color: Silver and Black
• Warranty: Twelve months from date of sale. Product registration required for technical support.

Need Help with Color Management?

Talk with a Big Systems specialist to confirm compatibility, workflow fit, and whether the X-Rite i1iSis 2 Automated Chart Reader is the right solution for your print environment.
