Foster On-A-Roll Lifter Low-Profile Grande Max
Price:$7,720.00

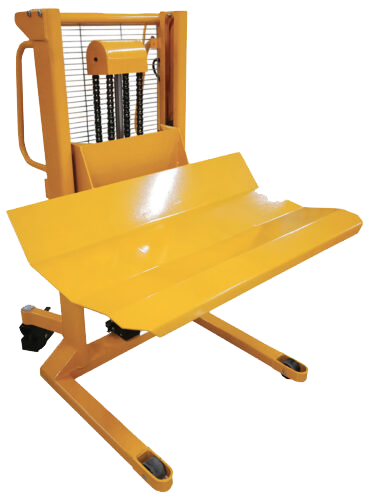

Foster On-A-Roll Lifter Low-Profile Grande Max F61548
The Foster On-A-Roll Lifter Low-Profile Grande Max F61548 is a motorized, heavy-duty media roll lifter designed for grand format print environments with low printer clearances. It allows a single operator to safely lift, transport, and position rolls up to 2,200 lbs while reducing injury risk and preventing media damage.
Why Choose the Foster On-A-Roll Lifter Low-Profile Grande Max F61548
Handling oversized, ultra-heavy media rolls demands more than manual lifting solutions. The Foster On-A-Roll Lifter Low-Profile Grande Max is engineered for extreme roll weights and low-clearance printer setups commonly found in grand format production environments. Its powerful motorized lift system, rugged construction, and low-profile fork design allow operators to move massive rolls safely, efficiently, and with total control.
Applications
- Grand format printing operations
- Super-wide media handling environments
- High-capacity vinyl, fabric, paper, and banner production
- Print rooms with low printer clearances
- Facilities handling oversized and heavy media rolls
Key Features
- Motorized lifting powered by a 12-volt DC system
- Handles rolls up to 2,200 lbs
- Low-profile front fork clearance for printers with tight under-carriage space
- Single-operator operation reduces labor and injury risk
- Low-profile ramp tray simplifies roll loading and unloading
- Heavy-duty swivel casters with step-on locking brakes
- Rugged steel construction for demanding production environments
Built for Low-Clearance Grand Format Printers
Fixed front casters provide just 3.15 inches of bottom fork clearance, allowing the lifter to fit under many grand format printers that standard lifters cannot access. The result is safer roll positioning, fewer handling steps, and improved control when loading and unloading extremely large rolls.
Motorized Lifting for Maximum Control
The integrated DC motor eliminates manual lifting strain, allowing operators to raise and lower rolls smoothly using foot and handle-mounted controls. This reduces physical fatigue while ensuring precise roll positioning during transport and loading.
Specifications
- Model: F61548
- Roll Weight Capacity: 2,200 lbs
- Maximum Roll Width: 197 inches
- Maximum Roll Diameter: 31.5 inches
- Maximum Lift Height: 45.2 inches
- Minimum Tray Height: 4.72 inches
- Overall Dimensions (W x D x H): 47.24 x 45.2 x 59.1 inches
- Bottom Fork Clearance: 3.15 inches
- Unit Weight: 252 lbs
Warranty
- Manufacturer warranty coverage on hydraulics, casters, and tray components
- Extended structural warranty on frame components
Safely Handle the Heaviest Rolls in Your Shop
If your operation runs grand format printers with low clearances and extreme roll weights, the On-A-Roll Lifter Low-Profile Grande delivers the control and capacity you need. Contact Big Systems to confirm fitment and ensure this lifter matches your equipment and production requirements.
Additional information
| Weight | 252 lbs |
|---|---|
| Dimensions | 45.2 × 47.24 × 59.1 in |
