General Formulations 203HTAPAE Gloss White Vinyl

High-Tack Air-Egress Vinyl – GF 203HTAPAE Gloss White Permanent

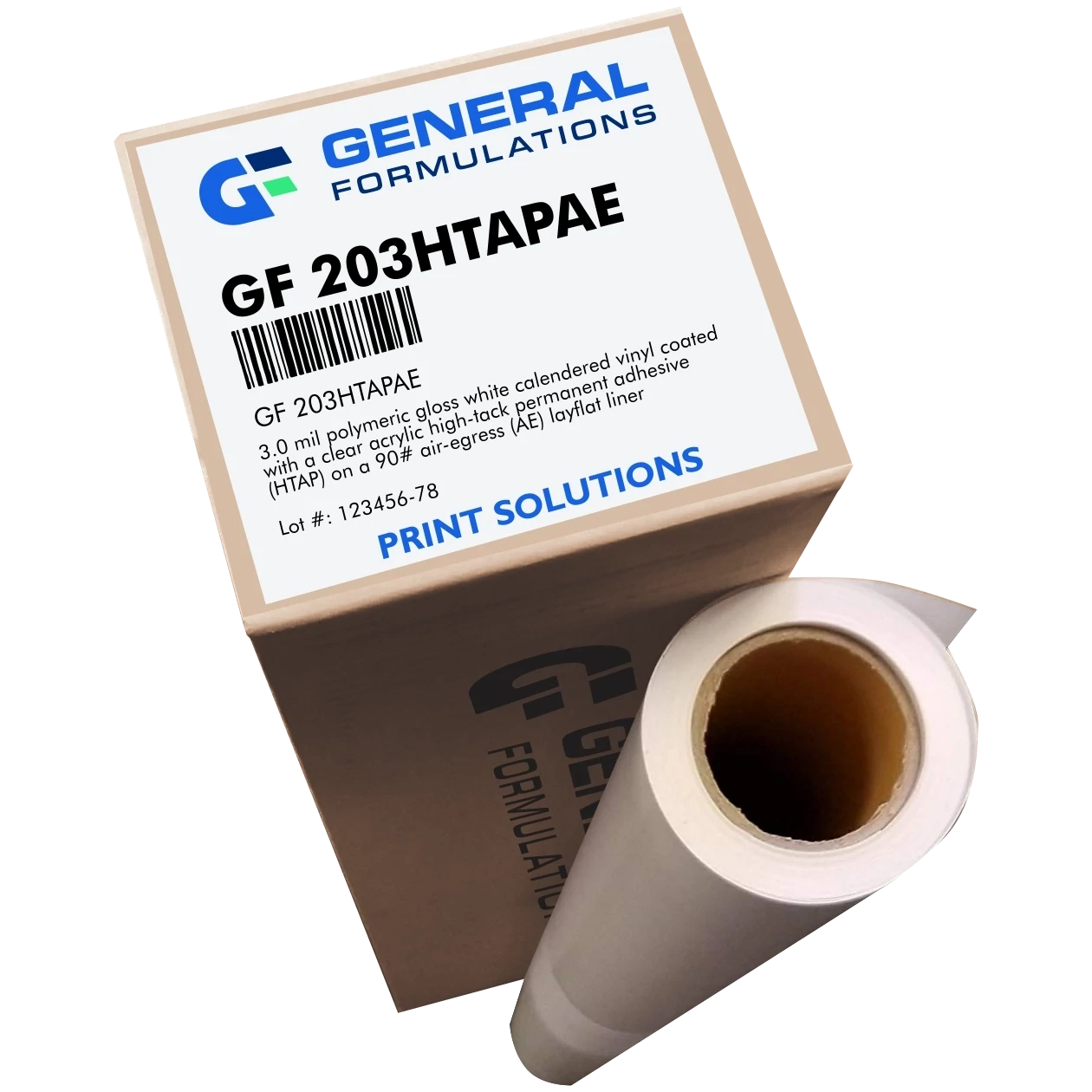

High-tack air-egress vinyl GF 203HTAPAE is a 3.0 mil polymeric gloss white calendered vinyl engineered for demanding signage where aggressive adhesion, bubble-free installation, and long-term durability are required. It features a clear acrylic high-tack permanent adhesive paired with a 90 lb air-egress layflat liner, allowing fast dry-apply installs while delivering a strong, permanent bond. Designed for wide format production, this vinyl supports multiple ink technologies and performs reliably across a wide range of difficult substrates.

Why Choose This High-Tack Air-Egress Vinyl

GF 203HTAPAE combines aggressive adhesion with installation efficiency for professional sign environments.

• High-Tack Permanent Adhesive: Bonds aggressively to hard-to-stick surfaces
• Air-Egress Technology: Enables fast, bubble-free dry application on large graphics
• Gloss White Surface: Produces strong color pop and image clarity
• Broad Substrate Compatibility: Performs on metals, plastics, boards, and low-energy surfaces
• Outdoor Rated Performance: Built for long-term interior and exterior use

Applications

• General Signage: Long-term interior and exterior graphics
• POP and Retail Displays: Durable promotional signage
• Wall Graphics: Permanent installations on smooth walls and panels
• Tradeshow Displays: Rigid substrates and specialty boards
• Decals and Nameplates: Identification requiring aggressive adhesion

Key Features

• Film Construction: 3.0 mil polymeric gloss white calendered vinyl
• Adhesive System: Clear acrylic high-tack permanent, pressure-sensitive
• Installation Method: Dry apply only with air-egress liner
• Handling: 90 lb air-egress layflat liner for smooth application
• Use Environment: Interior and exterior long-term graphics

Compatibility

This vinyl adheres to a wide range of flat and rigid substrates including metals, painted metals, smooth wood, plywood, primed MDO board, vinyl, ABS, styrene, polyester, polycarbonate, HDPE, polypropylene, polyolefin, Sintra board, and Coroplast. It supports solvent, eco-solvent, latex, UV curable, screen, and offset UV inks. Always test adhesion and print compatibility before full production.

Specifications

• Film Type: White polymeric calendered vinyl
• Color: White
• Finish: Gloss
• Film Thickness: 3.0 mil
• Film Weight: 104 grams per square meter
• Opacity: 94 percent
• Gloss Level: Greater than 80 at 60 degrees
• Tensile Strength:
  • Machine Direction: greater than 3,500 lbs per inch
  • Cross Direction: greater than 3,500 lbs per inch
• Elongation:
  • Machine Direction: greater than 200 percent
  • Cross Direction: greater than 200 percent
• Dimensional Stability:
  • Machine Direction: less than 1.60 mm
  • Cross Direction: less than 1.10 mm
• Adhesive Type: Emulsion acrylic, pressure-sensitive
• Adhesive Strength: High tack
• Adhesive Thickness: 0.8 to 1.0 mil
• Adhesive Color: Clear
• Peel Strength on Stainless Steel:
  • 15 minutes: 3.5 lbs per inch
  • 24 hours: 3.8 lbs per inch
• Peel Strength on HDPE:
  • 15 minutes: 2.5 lbs per inch
  • 24 hours: 2.8 lbs per inch
• Release Liner: White PE-coated kraft, air-egress
• Liner Weight: 90 lb
• Liner Thickness: 7.8 mil
• Release Force: 50 to 100 grams per 2 inches
• Application Temperature: Above 40 degrees Fahrenheit
• Service Temperature Range: Minus 40 to 180 degrees Fahrenheit
• Shelf Life: 1 year when stored at 70 degrees Fahrenheit and 50 percent relative humidity
• Outdoor Durability: Up to 5 years
• Removability: Permanent
• Core Size: 3 inches

FAQ

What applications does this vinyl support?
This vinyl supports interior and exterior signage, decals, nameplates, POP displays, wall graphics, and applications requiring aggressive adhesion on difficult substrates.

Can this vinyl be removed cleanly?
No. The high-tack adhesive is permanent and does not remove cleanly.

Which surfaces does this vinyl bond to best?
It performs exceptionally well on MDO board, powder-coated metals, ABS, Sintra board, Coroplast, HDPE, styrene, polypropylene, polyolefin, and other hard-to-bond materials.

Install Faster on Hard-to-Bond Surfaces

Choose GF 203HTAPAE for bubble-free installation, aggressive adhesion, and long-term gloss white performance.
