General Formulations 228 TransMark Translucent White Vinyl – Removable

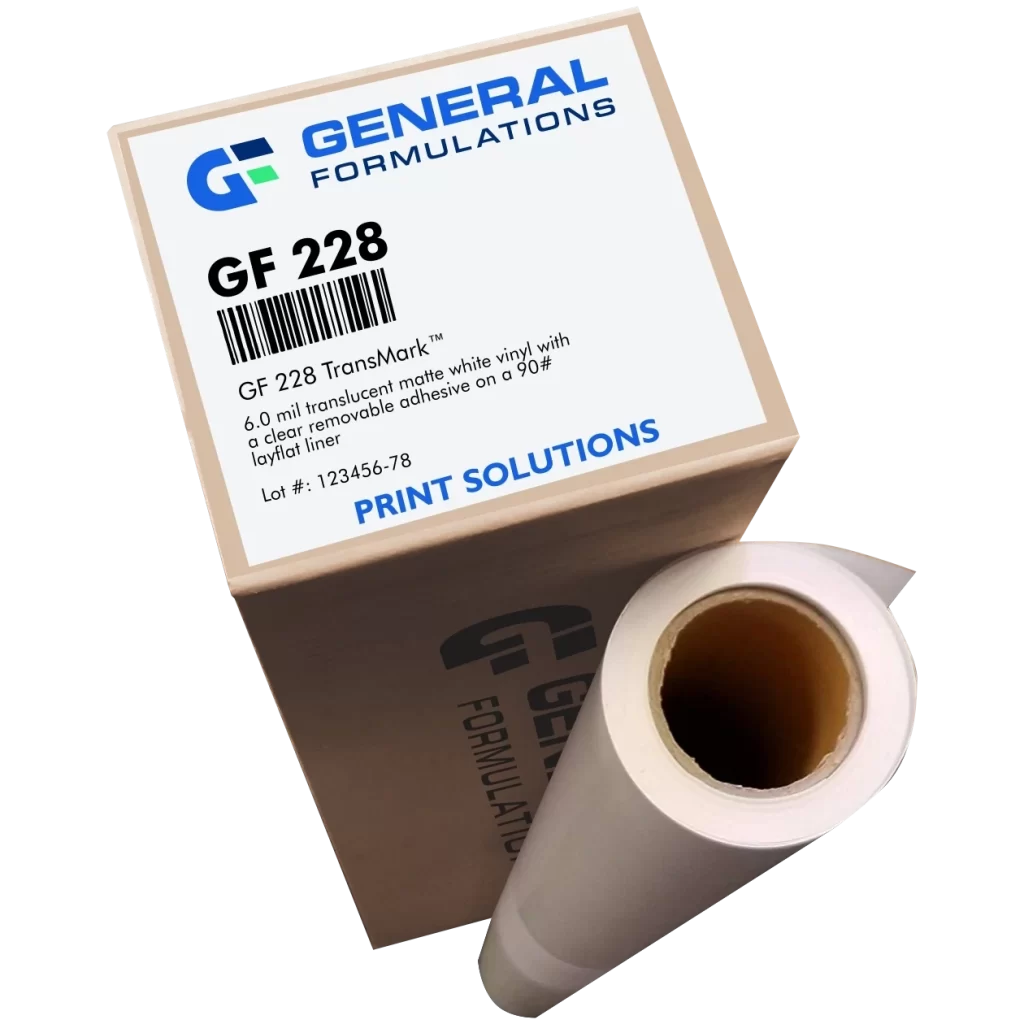

General Formulations 228 TransMark Translucent Matte White Vinyl – Removable GF228

Translucent backlit vinyl GF 228 TransMark is a 6.0 mil matte white translucent polymeric vinyl engineered for illuminated graphics where even light diffusion and clean removability are critical. The semi-rigid construction ensures easy handling, while the clear solvent removable adhesive allows one-year clean removal from approved substrates.

Designed for backlit displays such as taxi tops, bus signage, delivery vehicle graphics, and illuminated windows, GF 228 delivers consistent brightness without hot spots. The film bonds reliably to polycarbonate, styrene, acrylic, and glass and supports solvent, eco-solvent, latex, and UV curable inks.

GF 228 TransMark is CURB Taxi Top Approved.

---

Why Choose Translucent Backlit Vinyl

GF 228 balances light diffusion, removability, and durability for illuminated graphics.

• Uniform Light Diffusion produces bright, even backlit displays
• Semi-Rigid 6.0 mil Construction improves handling and installation
• Clear Removable Adhesive allows clean removal for up to one year
• Excellent Substrate Adhesion bonds to acrylic, polycarbonate, and styrene
• Wide Ink Compatibility supports solvent, latex, and UV printing

---

Applications

• Taxi Top Graphics
• Bus and Transit Displays
• Delivery Vehicle Backlit Graphics
• Illuminated Window Graphics
• Light Boxes and Cabinet Displays

Best suited for flat, rigid substrates requiring consistent backlighting.

---

Key Features

• 6.0 mil matte white translucent vinyl
• Clear solvent removable adhesive
• Semi-rigid film for easy application
• Designed for backlit and illuminated graphics
• CURB Taxi Top Approved

---

Specifications

Film

• Film Type: White polymeric vinyl
• Finish: Matte translucent
• Film Thickness: 6.0 mil (152 µm ±10%)
• Film Weight: 200 gsm
• Gloss (60°): >25
• Opacity: 60–70%
• Tensile Strength:
  • MD: >3500 lbs/in
  • CD: >3000 lbs/in
• Elongation:
  • MD: >125%
  • CD: >150%
• Dimensional Stability (FTM 14):
  • MD: <0.80 mm
  • CD: <0.80 mm

Adhesive

• Adhesive Type: Solvent acrylic, pressure-sensitive
• Adhesive Color: Clear
• Adhesive Thickness: 0.7–0.9 mil (18–23 µm)
• Peel Strength:
  • Glass (15 min): 2.4 lbs/in | Glass (24 hrs): 2.8 lbs/in
  • Acrylic (15 min): 2.6 lbs/in | Acrylic (24 hrs): 3.2 lbs/in
  • Polycarbonate (15 min): 3.0 lbs/in | Polycarbonate (24 hrs): 3.5 lbs/in

Liner

• Liner Type: White 2-sided PE-coated kraft
• Liner Weight: 90 lb (145 gsm)
• Liner Thickness: 6.7 mil (170 µm)
• Release Force @ 300 in/min: 20–35 g/2 in

Performance

• Application Temperature: Above 40°F
• Service Temperature: -40°F to 180°F
• Outdoor Durability: Up to 3 years
• Removability: Up to 1 year
• Shelf Life: 1 year
• Storage Conditions: 70°F at 50% relative humidity

---

Ink Compatibility

• Solvent
• Eco-Solvent
• Latex
• UV Curable
• Screen
• Offset UV

---

Compatibility

Translucent backlit vinyl GF 228 performs best on flat, rigid substrates including acrylic, polycarbonate, styrene, and glass. It is ideal for illuminated applications where consistent light diffusion is required.

Optional lamination with GF 101 Lustre Laminate increases durability while maintaining light transmission.

---

FAQ

Should this vinyl be laminated?
Lamination is optional. For added durability and extended graphic life, pair with GF 101 Lustre Laminate.

What applications work best with this film?
GF 228 excels in taxi tops, bus signage, delivery graphics, window displays, and light boxes.

---

Illuminate Graphics with Consistent Brightness

Choose translucent backlit vinyl GF 228 TransMark for professional illuminated displays with clean removal and reliable performance.
