General Formulations 230 AutoMark Gloss White Vinyl – Permanent Air-Egress
Price:$499.00
General Formulations 230 AutoMark Gloss White Wrap Vinyl – Permanent GF230
Gloss white wrap vinyl with air egress GF 230 AutoMark is a premium 2.4 mil calendared gloss white vinyl engineered for professional vehicle wrap and decal applications. The film uses a gray permanent repositionable acrylic adhesive paired with a 90# air-egress layflat liner to deliver excellent opacity, controlled repositioning, and clean, air-free installation.
GF 230 accepts solvent, latex, and UV curable inks and performs reliably across flat, corrugated, riveted, and slightly contoured vehicle surfaces. This vinyl forms the foundation of the AutoMark wrap system and pairs with multiple laminate options to meet gloss and durability requirements.
Why Choose Gloss White Wrap Vinyl with Air Egress
GF 230 delivers installation control, print consistency, and long-term outdoor durability.
- Gloss White Surface enhances color vibrancy and image clarity
- Gray Repositionable Adhesive improves opacity and reduces substrate bleed-through
- Air-Egress Liner supports fast, bubble-free dry application
- Permanent Adhesive System provides long-term outdoor performance
- Wrap-System Engineered pairs with AutoMark laminates for warranty-backed results
Applications

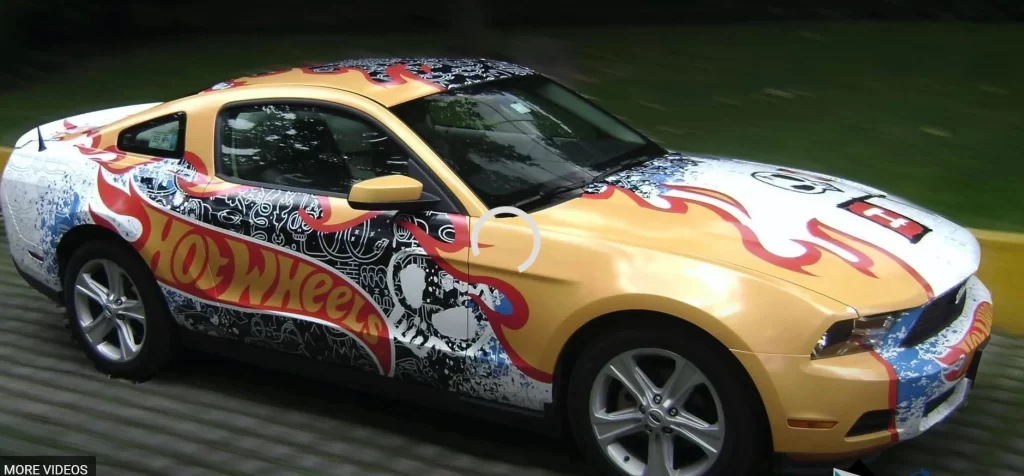

- Vehicle Wraps
- Fleet and Transit Graphics
- Commercial and Promotional Wraps
- Outdoor Decals and Signage
Best suited for flat, corrugated, riveted, and slight to moderate curved surfaces.
Key Features
- Premium 2.4 mil calendared gloss white vinyl
- Gray permanent repositionable acrylic adhesive
- Air-egress liner for dry application only
- Excellent opacity for color blocking
- Designed for vehicle wrap and decal use
Specifications
Film
- Film Type: White polymeric vinyl
- Finish: Gloss
- Film Thickness: 2.4 mil (61 µm ±10%)
- Film Weight: 85 gsm
- Gloss (60°): >80
- Opacity: >99%
- Tensile Strength:
- MD: >4000 lbs/in
- CD: >3800 lbs/in
- Elongation:
- MD: >225%
- CD: >280%
- Dimensional Stability (FTM 14):
- MD: <0.50 mm
- CD: <0.30 mm
Adhesive
- Adhesive Type: Solvent acrylic pressure-sensitive
- Adhesive Color: Gray
- Adhesive Thickness: 1.1–1.3 mil (28–33 µm)
- Peel Strength on Stainless Steel:
- 15 min: 2.0 lbs/in (8.8 N/25 mm)
- 24 hrs: 3.5 lbs/in (15 N/25 mm)
Liner
- Liner Type: White 2-sided PE-coated kraft, air-egress
- Liner Weight: 98 lb (160 gsm)
- Liner Thickness: 7.5 mil (190 µm)
- Release Force @ 300 in/min: 20–35 g/2 in
Performance
- Application Temperature: Above 40°F
- Service Temperature: -40°F to 180°F
- Outdoor Durability: Up to 7 years
- Shelf Life: 1 year
- Storage Conditions: 70°F at 50% relative humidity
Ink Compatibility
- Solvent
- Eco-Solvent
- Latex
- UV Curable
- Screen
- Offset UV
Compatibility
Gloss white wrap vinyl with air egress GF 230 works best with AutoMark laminates including GF 231 gloss, GF 240 matte, and GF 242 cast gloss for higher-performance finishes. This product is designed for dry application only and is not intended for complex curves or deep recesses.
FAQ
Is this a full wrap film?
No. This polymeric calendared vinyl works best on simple to moderate curves. Vehicles with complex contours require a cast film.
What vehicles work best with this vinyl?
Vans, trucks, sedans, fleet vehicles, and recreational vehicles with flat to moderately contoured surfaces.
Can this vinyl be wet applied?
No. The air-egress liner can trap fluids and prevent proper adhesion.
Can primer be used?
Primer is not recommended. If necessary, minimal adhesive promoter may be used in difficult areas after proper surface cleaning.
Install Faster and Wrap with Confidence
Choose gloss white wrap vinyl with air egress GF 230 AutoMark for professional wrap performance, clean installs, and long-term outdoor results.
Additional information
| Weight | 49 lbs |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 in |
