General Formulations 231 AutoMark Gloss Clear Wrap Laminate – Permanent

General Formulations 231 AutoMark Gloss Wrap Laminate – Permanent GF231

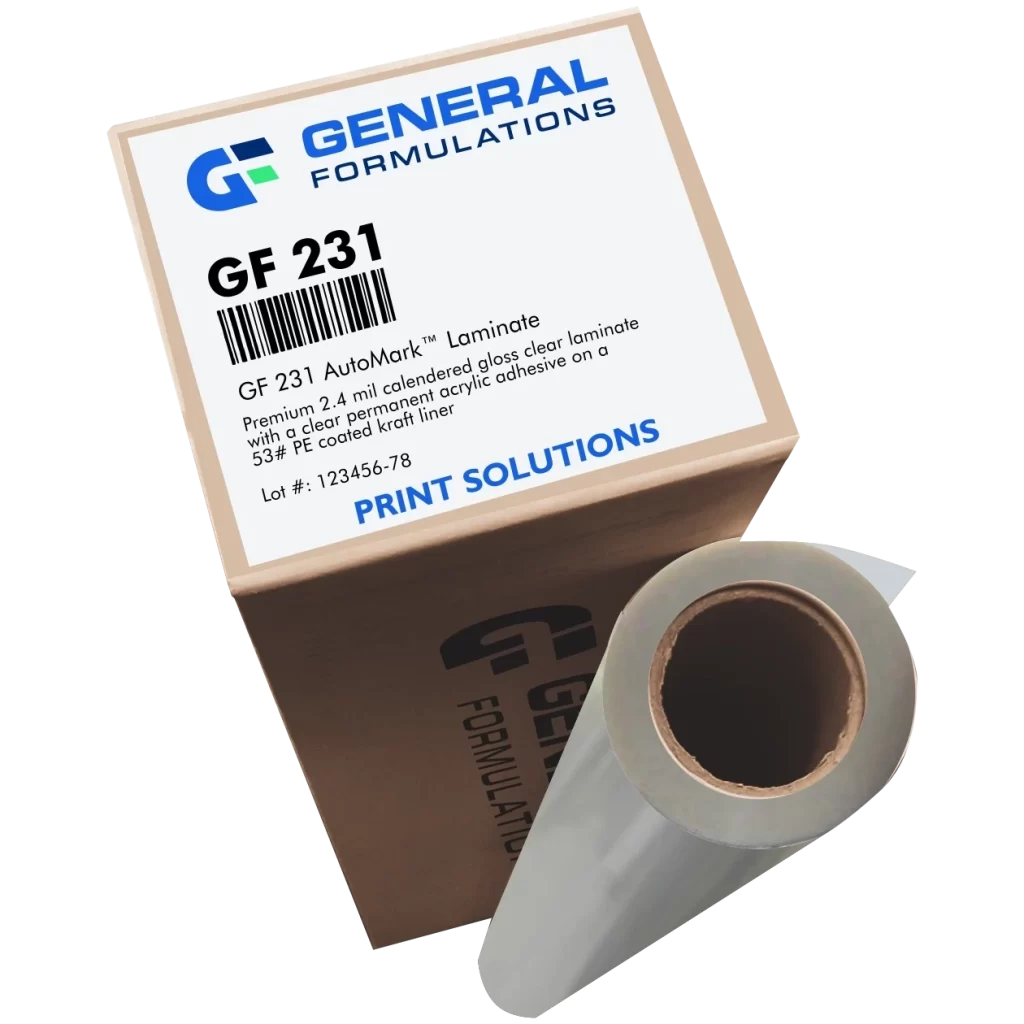

Gloss wrap laminate for vehicle graphics GF 231 AutoMark is a premium 2.4 mil calendered gloss clear laminate engineered to protect printed wrap and decal graphics in demanding outdoor environments. The laminate uses a clear permanent acrylic pressure-sensitive adhesive on a 53# PE-coated kraft liner to deliver consistent handling and long-term performance.

GF 231 laminates using a cold laminating process without heat and pairs specifically with GF 230 AutoMark wrap vinyl to create a complete, warrantied wrap system for simple curves and flat to moderately contoured surfaces.

---

Why Choose Gloss Wrap Laminate for Vehicle Graphics

GF 231 delivers reliable protection, visual clarity, and long-term durability for professional wrap applications.

• High-Gloss Finish enhances color vibrancy and image depth
• Permanent Clear Adhesive delivers long-term bond strength outdoors
• Cold Lamination Compatible eliminates heat-related distortion risks
• Designed for AutoMark Wrap Systems ensures warranty-backed performance
• UV and Moisture Protection extends graphic life in harsh environments

---

Applications

• Vehicle Wraps
• Fleet and Transit Graphics
• Long-Term Outdoor Decals
• Commercial and Promotional Graphics

Best suited for wrap applications using polymeric vinyls designed for simple curves.

---

Key Features

• 2.4 mil calendered gloss clear overlaminate
• Clear permanent acrylic pressure-sensitive adhesive
• Cold lamination with no heat required
• UV, moisture, and environmental protection
• Optimized for use with GF 230 AutoMark wrap vinyl

---

Specifications

Film

• Film Type: Clear polymeric vinyl
• Finish: Gloss
• Film Thickness: 2.4 mil (61 µm ±10%)
• Film Weight: 75 gsm
• Gloss (60°): >70
• Tensile Strength:
  • MD: >4000 lbs/in
  • CD: >3500 lbs/in
• Elongation:
  • MD: >225%
  • CD: >300%
• Dimensional Stability (FTM 14):
  • MD: <0.50 mm
  • CD: <0.20 mm

Adhesive

• Adhesive Type: Solvent acrylic pressure-sensitive
• Adhesive Color: Clear
• Adhesive Thickness: 0.8–1.0 mil (20–25 µm)
• Peel Strength on Stainless Steel:
  • 15 min: 2.5 lbs/in (11 N/25 mm)
  • 24 hrs: 3.8 lbs/in (17 N/25 mm)

Liner

• Liner Type: White PE-coated kraft
• Liner Weight: 53 lb (86 gsm)
• Liner Thickness: 3.5 mil (89 µm)
• Release Force @ 300 in/min: 15–30 g/2 in

Performance

• Application Temperature: Above 40°F
• Service Temperature: -40°F to 180°F
• Outdoor Durability: Up to 7 years
• Shelf Life: 1 year
• Storage Conditions: 70°F at 50% relative humidity

---

Ink Compatibility

• Solvent
• Eco-Solvent
• Latex
• UV Curable
• Screen
• Offset UV

---

Compatibility

Gloss wrap laminate for vehicle graphics GF 231 is engineered to pair with GF 230 AutoMark wrap vinyl for optimal performance and warranty coverage. While compatible with many print vinyls, best results occur when pairing similar polymeric wrap films designed for simple curves.

---

FAQ

What applications is this laminate best for?
Long-term outdoor vehicle wraps, fleet graphics, and durable decal applications.

Can this laminate be used with other print vinyls?
Yes, but pairing with GF 230 AutoMark ensures optimal performance and warranty coverage.

Can another laminate replace GF 231 with GF 230 AutoMark vinyl?
Other laminates may function, but AutoMark warranties apply only when matched AutoMark products are used.

---

Protect Wrap Graphics with Long-Term Gloss Performance

Choose gloss wrap laminate for vehicle graphics GF 231 AutoMark for durable, high-impact wraps built to perform outdoors.
