General Formulations 238 MotoMark ‘Armor’ Clear Gloss Laminate
Price: Select an Option

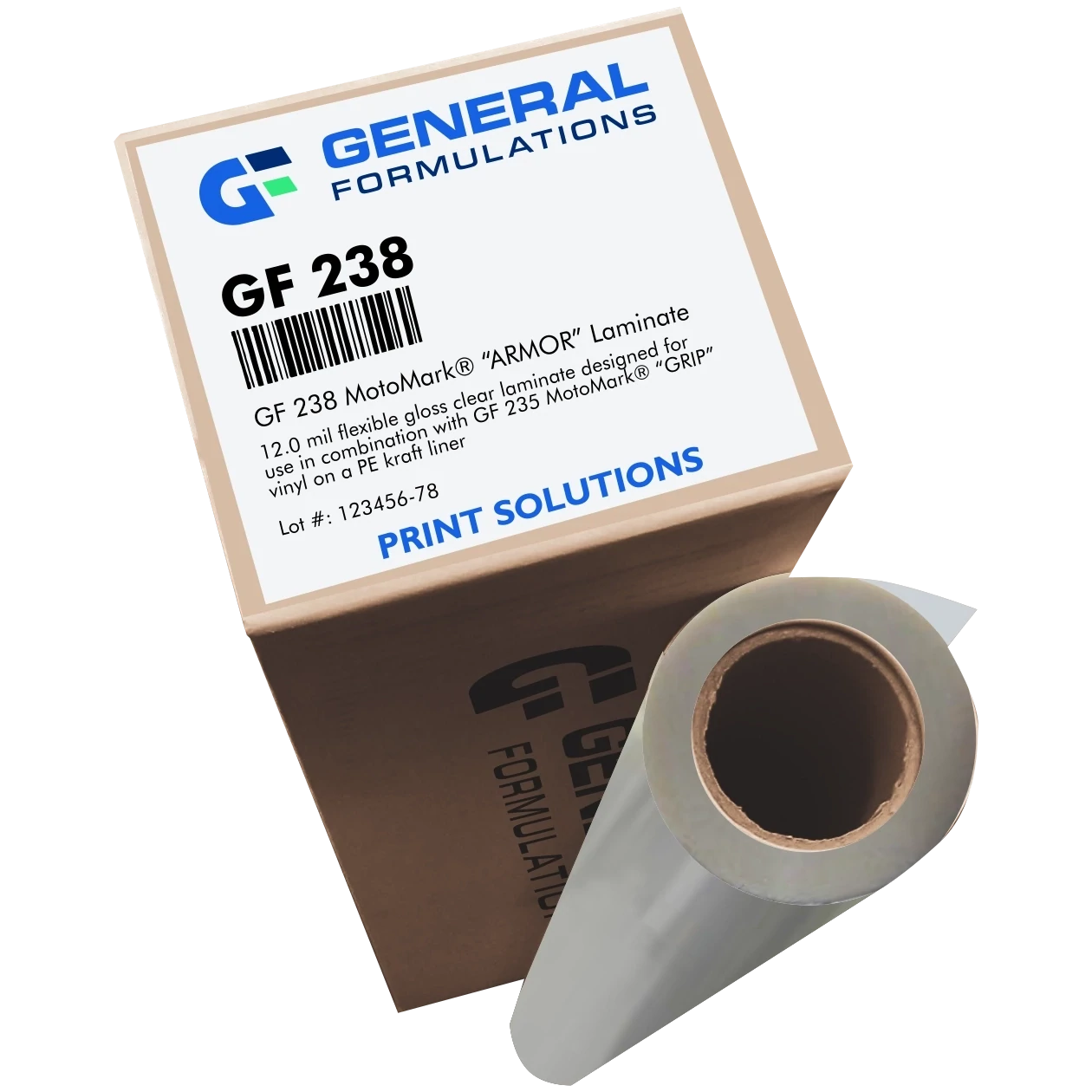

GF 238 MotoMark ARMOR Gloss Clear UV Laminate – Permanent
Heavy duty powersports laminate GF 238 MotoMark ARMOR is a 12.0 mil flexible gloss clear UV laminate engineered for extreme durability in high-impact environments. Designed as a protective overlaminate for GF 235 MotoMark GRIP vinyl, this laminate delivers superior protection against abrasion, UV exposure, moisture, and environmental wear.
GF 238 is purpose-built for powersports and recreational vehicle graphics, including ATVs, snowmobiles, motocross bikes, carts, and helmets, where standard laminates are not sufficient.
Why Choose Heavy Duty Powersports Laminate
GF 238 provides maximum protection for graphics exposed to harsh riding conditions and frequent contact.
- 12.0 mil Armor Construction delivers exceptional abrasion and impact resistance
- Gloss Clear Finish enhances color depth while sealing graphics
- Permanent Solvent Adhesive ensures long-term adhesion in demanding environments
- UV Protection reduces fading and graphic degradation
- Designed for MotoMark Systems pairs directly with GF 235 MotoMark GRIP vinyl
Applications
- Powersports Vehicle Graphics
- Motocross and Dirt Bike Decals
- ATV and UTV Graphics
- Snowmobile Graphics
- Helmets and Carts
- High-Wear Outdoor Decals
Best suited for high-abuse applications requiring thick protective overlamination.
Key Features
- 12.0 mil gloss clear calendered laminate
- Heavy-duty Armor protection layer
- Clear permanent solvent adhesive
- High flexibility for curved surfaces
- Designed for extreme outdoor conditions
- Compatible with most digital and screen inks
Specifications
Film
- Film Type: Clear Monomeric Vinyl
- Finish: Gloss
- Film Thickness: 12.0 mil (305 µm ±10%)
- Film Weight: 395 gsm
- Gloss (60°): >80
- Tensile Strength:
- MD >4000 lbs/in
- CD >4000 lbs/in
- Elongation:
- MD >350%
- CD >350%
- Dimensional Stability (FTM 14):
- MD <0.80 mm
- CD <0.50 mm
Adhesive
- Adhesive Type: Solvent
- Adhesive Thickness: 1.4–1.6 mil (36–41 µm)
- Adhesive Color: Clear
- Peel Strength on Stainless Steel:
- 15 min: 4.8 lbs/in (21 N/25 mm)
- 24 hrs: 6.5 lbs/in (28 N/25 mm)
Liner
- Liner Type: White PE-Coated Kraft
- Liner Thickness: 3.0 mil (76 µm)
- Release Force @ 300 in/min: 75–125 g/2 in
Performance
- Application Temperature: Above 40°F
- Service Temperature: -40°F to 200°F
- Outdoor Durability: Up to 5 years
- Shelf Life: 1 year
- Storage Conditions: 70°F at 50% relative humidity
Ink Compatibility
- Solvent
- Eco-Solvent
- Latex
- UV Curable
- Thermal
- Screen
- Offset (UV Curable)
Compatibility
Heavy duty powersports laminate GF 238 is designed to be used as an overlaminate for GF 235 MotoMark GRIP vinyl. While compatible with many ink systems, testing is strongly recommended prior to full production due to the thickness and adhesive strength of this laminate.
Cutting thicker materials may require adjusted cutter settings and blade depth.
FAQ
Can my cutter handle a 12 mil laminate?
Most cutters can cut GF 238 with proper blade selection, pressure settings, and software adjustments.
Will this laminate adhere to all ink types?
The adhesive is formulated to bond to most inks, but testing is recommended since some ink additives may reduce adhesion.
Armor Your Graphics for Extreme Conditions
Choose heavy duty powersports laminate GF 238 MotoMark ARMOR for maximum protection on high-impact powersports and outdoor graphics.
