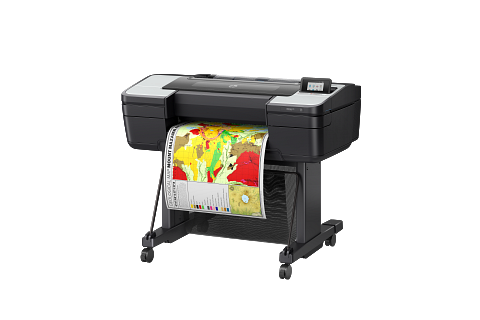

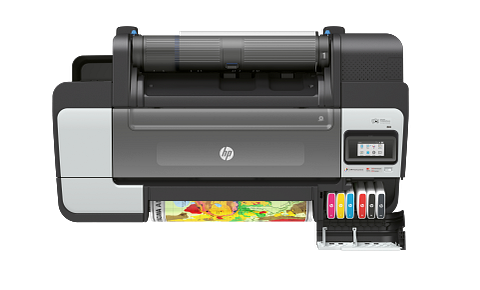

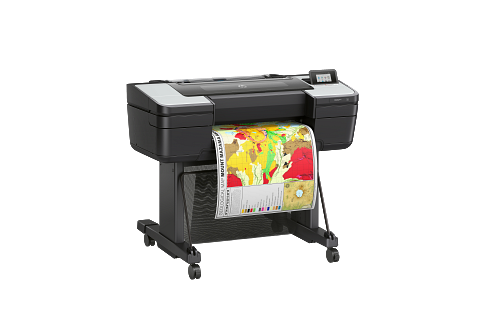

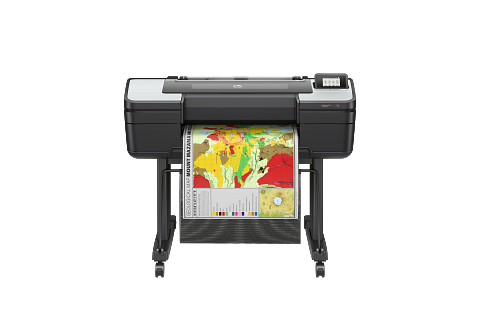

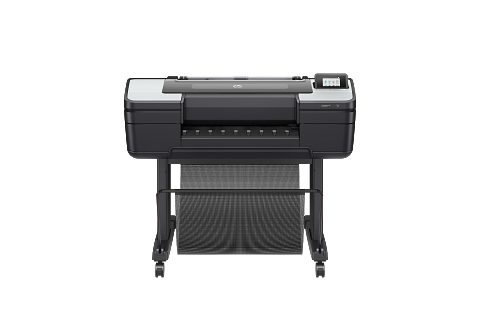

HP DesignJet Z6 24-in PostScript Printer Plus Edition

High-Definition Graphics in a Compact 24-Inch Printer

The HP DesignJet Z6 24-in PostScript Printer Plus Edition is built for businesses that need sharp, professional graphics without moving into a larger production footprint.

With HP Pixel Control, HP Vivid Photo Inks, PostScript support, and HP Click software, this printer helps teams produce posters, maps, retail graphics, and presentation materials with dependable detail and color.

Why Choose This Printer?

Choose the HP DesignJet Z6 24-in Plus Edition when you need professional graphics, technical color, and high-definition output in a smaller 24-inch format. It is a strong fit for offices, schools, small print departments, retail teams, and design groups that need impressive color without a 44-inch device.

HP Pixel Control helps create smooth gradients and detailed color transitions, while high-definition HP printheads help reveal fine details and high-contrast color. HP Vivid Photo Inks support water- and fade-resistant prints for indoor and outdoor use when used with compatible HP media and profiles.

With click software helps simplify everyday printing with real-print preview to reduce errors and reprints. The printer also helps protect work and device access with HP Wolf Pro Security, secure PIN printing, encrypted storage, and network protection built for professional environments.

Applications

• Posters
• Retail signage
• Point-of-sale graphics
• GIS maps
• Orthophotos
• Presentation graphics
• Event graphics
• Light box film
• Indoor display graphics
• High-definition color documents

Technical Specifications

• Print speed: Fast-Economode up to 720 ft²/hr on plain media
• Normal speed: Up to 214 ft²/hr on coated media
• Best speed: Up to 85 ft²/hr on glossy media
• Print resolution: Up to 2400 x 1200 optimized dpi
• Ink technology: HP Thermal Inkjet
• Ink system: 6 pigment-based inks
• Ink colors: Cyan, magenta, yellow, matte black, photo black, and chromatic red
• Ink cartridges: HP 746 300-ml ink cartridges
• Printheads: 3 universal printheads
• Line accuracy: ±0.1%
• Minimum line width: 0.0008 in, PDF addressable at 1200 dpi
• Roll size: 11 to 24 in
• Sheet size: 8.3 x 11 in to 24 x 66 in
• Media types: Photo, fine art, self-adhesive, banner and sign, bond and coated, backlit
• Media handling: Single roll, rear sheet feed, media output bin, automatic horizontal cutter
• Memory: 128 GB virtual
• Storage: 500 GB self-encrypting
• Print languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
• Connectivity: Gigabit Ethernet and Hi-Speed USB 2.0
• Security: HP Wolf Pro Security, PIN printing, encrypted storage, secure networking, and access controls
• Dimensions: 50.9 x 27.4 x 39.3 in
• Warranty: One-year limited hardware warranty

FAQ

What is the HP DesignJet Z6 24-in Plus Edition best for?

It is best for posters, maps, retail graphics, presentations, point-of-sale graphics, and high-definition color documents.

Is the HP DesignJet Z6 24-in a photo printer?

It can produce high-quality graphics and photo-style output, but the Z9+ is the better choice for premium photography, fine art, and color-critical work.

Does this model include PostScript?

Yes. This model includes Adobe PostScript 3 and Adobe PDF 1.7 support.

Does this model include a V-Trimmer?

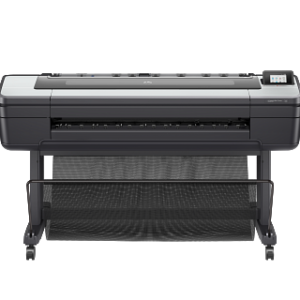

No. The integrated vertical trimmer is included on the Z6dr 44-in model with V-Trimmer.

Replacement SKU

Updated Plus Edition SKU: This model replaces the previous HP DesignJet Z6 24-in PostScript Printer SKU T8W15A with the new HP DesignJet Z6 24-in PostScript Printer Plus Edition SKU T8W15D.
