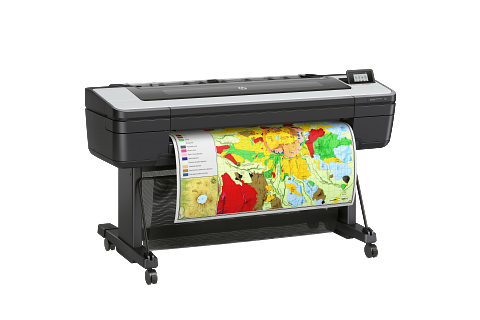

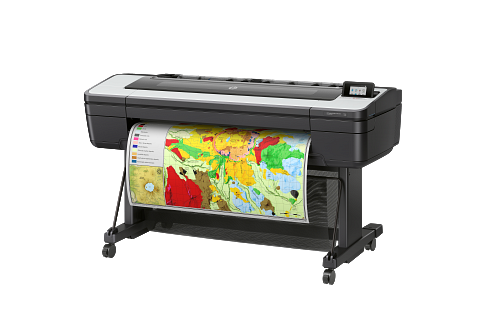

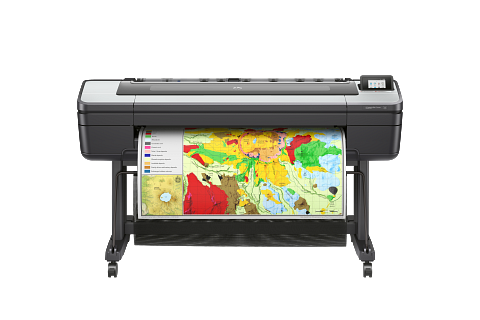

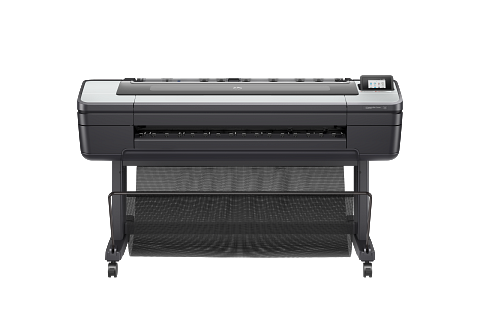

HP DesignJet Z6dr 44-in PostScript Printer Plus Edition with V-Trimmer

Dual-Roll Graphics Printing with Built-In Trimming

The HP DesignJet Z6dr 44-in PostScript Printer Plus Edition with V-Trimmer is designed for teams that need to print wide-format graphics quickly and finish them with less manual handling.

With dual-roll support, smart roll switching, HP Pixel Control, HP Vivid Photo Inks, HP Click software, and an integrated V-Trimmer, this printer helps streamline posters, maps, signage, and point-of-sale graphics.

Why Choose This Printer?

Choose the HP DesignJet Z6dr 44-in Plus Edition when productivity and finishing matter. The dual-roll system lets your team keep two rolls loaded, helping reduce media changes and supporting more efficient production.

The integrated V-Trimmer trims prints to final width with a single click, helping reduce post-processing time. This makes the Z6dr a smart fit for shops and internal departments producing posters, retail graphics, maps, displays, and event graphics.

The 6-ink pigment-based HP Vivid Photo Ink system produces sharp, water- and fade-resistant prints when used with compatible media and profiles. HP Pixel Control helps create smooth gradients and detailed color output, while HP Wolf Pro Security helps protect your device, data, and documents.

Applications

• Retail signage
• Posters
• Point-of-sale graphics
• Maps
• Orthophotos
• Event graphics
• Exhibition displays
• Light box film
• Banners
• Presentation graphics
• Graphics with finishing requirements

Technical Specifications

• Print speed: Fast-Economode up to 866 ft²/hr on plain media
• Normal speed: Up to 268 ft²/hr on coated media
• Best speed: Up to 104 ft²/hr on glossy media
• Print resolution: Up to 2400 x 1200 optimized dpi
• Ink technology: HP Thermal Inkjet
• Ink system: 6 pigment-based inks
• Ink colors: Cyan, magenta, yellow, matte black, photo black, and chromatic red
• Ink cartridges: HP 746 300-ml ink cartridges
• Printheads: 3 universal printheads
• Roll size: 11 to 44 in
• Sheet size: 8.3 x 11 in to 44 x 66 in
• Media handling: Dual automatic roll feeds, smart roll switching, top sheet feed, media output bin, automatic horizontal cutter, and integrated vertical trimmer
• V-Trimmer: Cuts HP Z-Series printer-qualified media, including most canvas
• Media types: Photo, fine art, self-adhesive, banner and sign, bond and coated, backlit
• Memory: 128 GB virtual
• Storage: 500 GB self-encrypting
• Print languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
• Connectivity: Gigabit Ethernet and Hi-Speed USB 2.0
• Security: HP Wolf Pro Security, PIN printing, encrypted storage, secure networking, and access controls
• Dimensions: 71 x 27.4 x 39.3 in
• Warranty: One-year limited hardware warranty

FAQ

What does dr mean on the HP DesignJet Z6dr?

The dr model includes dual-roll media handling, allowing two rolls to stay loaded for faster switching and more efficient production.

What does the V-Trimmer do?

The integrated V-Trimmer cuts prints to final width, helping reduce manual trimming and post-processing time.

Is the Z6dr good for retail signage?

Yes. It is a strong choice for posters, retail signage, point-of-sale graphics, maps, event graphics, and display work.

Is the Z6dr the same quality as the Z6 44-in?

The core print technology is from the Z6 Plus Edition family. The Z6dr adds dual-roll support and the integrated V-Trimmer for improved workflow efficiency.

Replacement SKU

Updated Plus Edition SKU: This model replaces the previous HP DesignJet Z6dr 44-in PostScript Printer with V-Trimmer SKU T8W18A with the new HP DesignJet Z6dr 44-in PostScript Printer Plus Edition with V-Trimmer SKU T8W18D.

Looking to reduce finishing time and increase graphics production efficiency?

Contact Big Systems to see if the HP DesignJet Z6dr 44-in Plus Edition with V-Trimmer is the right fit for your shop or in-house graphics team.
