HP Latex Jumbo Dual Roll Split Spindles -L2E28A
Price:$8,352.00
HP Latex Jumbo Dual Roll Split Spindles -L2E28A for HP Latex 2700 Series, FS50, FS60, FS70 W
HP Latex Jumbo Dual Roll Split Spindles are engineered to support high-production environments that require handling large, heavy media rolls with efficiency and control. Designed for use with the HP Latex Jumbo Dual Roll Kit, these split spindles allow operators to load and print two large rolls simultaneously, increasing throughput while reducing downtime.
The split spindle design simplifies loading by allowing one operator to handle large rolls more safely and efficiently. This system supports heavy-duty production with roll capacities up to 440 lbs per roll, making it ideal for long runs and industrial-scale applications.
By enabling dual roll printing with jumbo media, this accessory helps print providers maximize uptime and maintain consistent output across demanding jobs. When paired with compatible HP Latex printers, it becomes a critical tool for scaling production without adding labor.
Why Choose HP Latex Jumbo Dual Roll Split Spindles
The Jumbo Dual Roll Split Spindles are built for production environments that demand efficiency and heavy-duty performance.
- Increase Throughput: Print two jumbo rolls simultaneously to boost production capacity
- Heavy-Duty Media Handling: Support large rolls up to 440 lbs each
- Simplified Loading: Split spindle design allows easier handling with fewer operators
- Reduced Downtime: Keep production running with fewer roll changes
- Optimized for Jumbo Media: Designed specifically for large-format applications
- Production-Ready Design: Built for continuous, high-volume environments
Applications
- High-volume banner production
- Fleet graphics
- Retail signage
- Wall coverings
- Trade show graphics
- Industrial printing
- Long-run production jobs
- Large format print facilities
- Continuous roll applications
- Multi-roll job production
Key Features
- Split Spindle Design: Enables easier loading of large and heavy rolls
- Dual Roll Capability: Supports simultaneous printing on two rolls
- Jumbo Media Support: Designed for large-format media up to 126 inches
- High Weight Capacity: Handles up to 440 lbs per roll
- Improved Operator Efficiency: Reduces labor required for loading heavy rolls
- Seamless Integration: Works with HP Latex 2700 and FS Series printers
Technical Specifications
- Part Number: L2E28A
- Media Width Capacity: Up to 2 × 60 inches (dual roll configuration)
- Minimum Roll Width: 25 inches
- Maximum Roll Diameter: 15.75 inches
- Maximum Roll Weight: 2 × 440 lbs (total dual roll capacity)
- Minimum Gap Between Rolls: 5.3 inches
- Printer Width Compatibility: 126-inch (3.2 m) printers
- System Type: Jumbo dual roll split spindle system

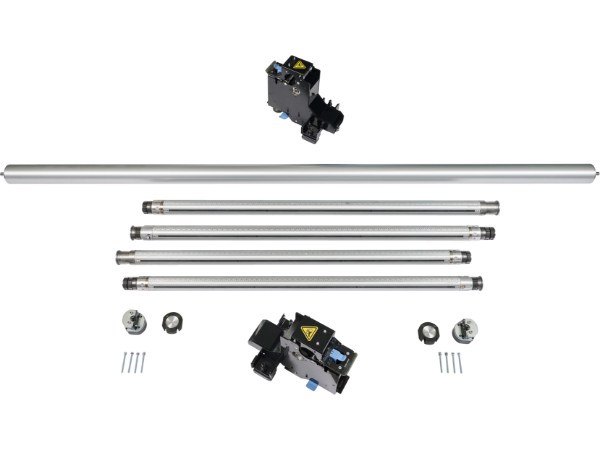

- Included Components:
- Four semi-spindles
- Input and output central supports
- Mounting hardware and supports
According to the specifications table in the user guide (page 7), the system supports dual rolls up to 60 inches each with a combined capacity of 2 × 440 lbs
Compatibility
- HP Latex 2700 Series
- HP Latex FS50
- HP Latex FS60
- HP Latex FS70 W
FAQ for HP Latex Jumbo Dual Roll Split Spindles
What are HP Latex Jumbo Dual Roll Split Spindles used for?
These spindles allow you to load and print two large rolls simultaneously, increasing production efficiency.
How much weight can the system support?
The system supports up to 440 lbs per roll, making it suitable for heavy-duty applications.
What is the benefit of a split spindle design?
The split design allows easier handling and loading of large rolls, often by a single operator.
What size media can be used?
You can run dual rolls up to 60 inches each, with a minimum width of 25 inches.
Which printers are compatible?
These spindles are designed for HP Latex 2700 Series and FS Series printers including FS50, FS60, and FS70 W.
Does this improve production efficiency?
Yes, it reduces downtime, increases throughput, and allows longer unattended print runs.
Scale Your Production with Jumbo Dual Roll Capability
Upgrade your HP Latex system with split spindles designed for heavy-duty performance and continuous output.
